Description

The RAZORWELD MIG195 is a new inverter-based portable MIG welding machine with an added Stick function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications.

Easy step-less adjustment of voltage and wire feed makes for easy setting of welding parameters giving excellent, professional welding results. Wire Inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. Stick welding capability delivers easy electrode welding with high-quality results, including cast Iron, stainless, and low hydrogen.

An additional feature is the Spoolgun ready function that allows the simple connection of the SPGRWA200 Spoolgun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as aluminum wire. This is an industrial machine that is both lightweight and portable. Being 230/115V single phase gives great versatility. Ideal for general engineers, maintenance workshops, and rural workshops, designed and built to our specifications. Certified to – AS/NZ60974-1

Features

• Latest IGBT inverter technology
• MIG/MAG with Gas and Gasless wire function
• Excellent MIG welding with CO2 gas & mixed gas
• Euro-style MIG torch connection
• Internal wire feeder, gear driven
• 2lb to 11lb Spools
• Adjustable Burn Back
• Spool Gun Connection
• Stepless voltage and wire feed control
• Wire Inch
• DC TIG with scratch start arc ignition
• Stick Function
• Excellent arc stability
• Hot Start – Anti Stick
• Industrial rated
• Solid case construction
• IP21S rating for environmental/safety protection
• Tolerant to variable power supply

Specifications

• Primary Input Voltage230/115V – 1 ±15%
• Rated Input Power KVA6 KVA -230V / 5 KVA - 115V
• ieff AMPS22.5A 115V / 21.5A 230V
• Rated Output Stick195A / 28.0V ARC
• Rated Output MIG195A / 28.0V MIG
• Welding Current Range30 - 200 Amps
• Duty Cycle 104° F - MIG35% @ 195 Amps 230V
• Duty Cycle 104° F - Stick35% @ 195 Amps 230V
• Duty Cycle 104° F - TIG DC35% @ 195 Amps 230V
• Dimensions (In)19.1 x 7.3 x 14.6
• Weight (Lbs)28.4

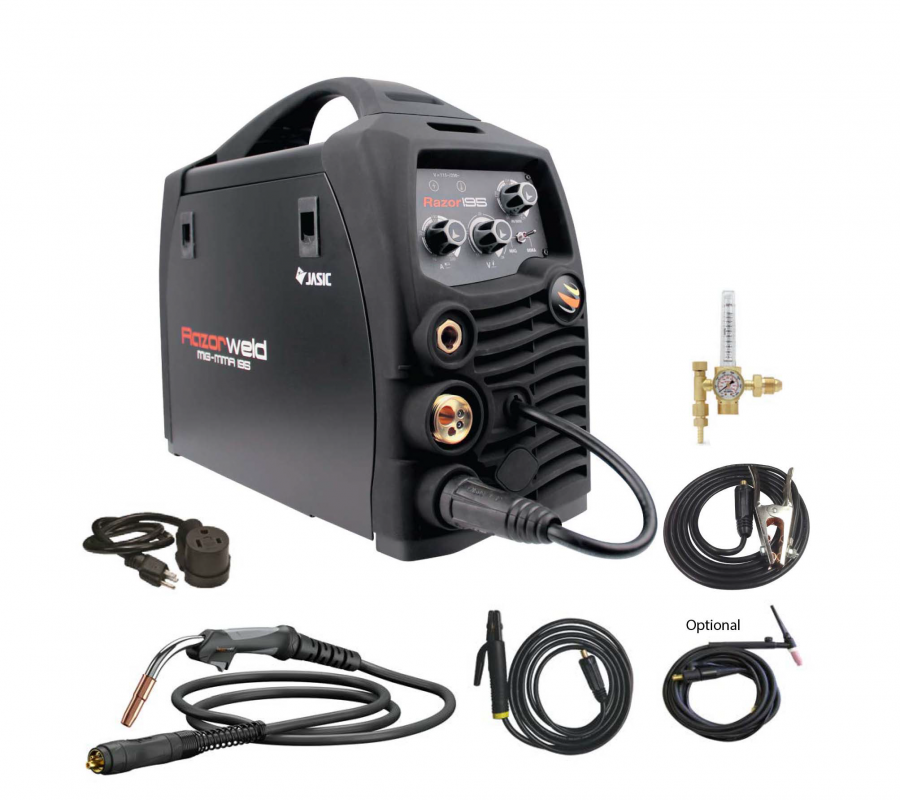

Contents

• 1 x Razor MIG 195 Power Source
• 1 x 10ft Tweco 2 Style MIG Torch
• 1 x 12ft Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
• 1 x Razorflow Argon Regulator
• 1 x 230/115V Power Adapter
• 1 x 6.5ft Gas Hose with connections
• 1 x Instruction Manual
