Description

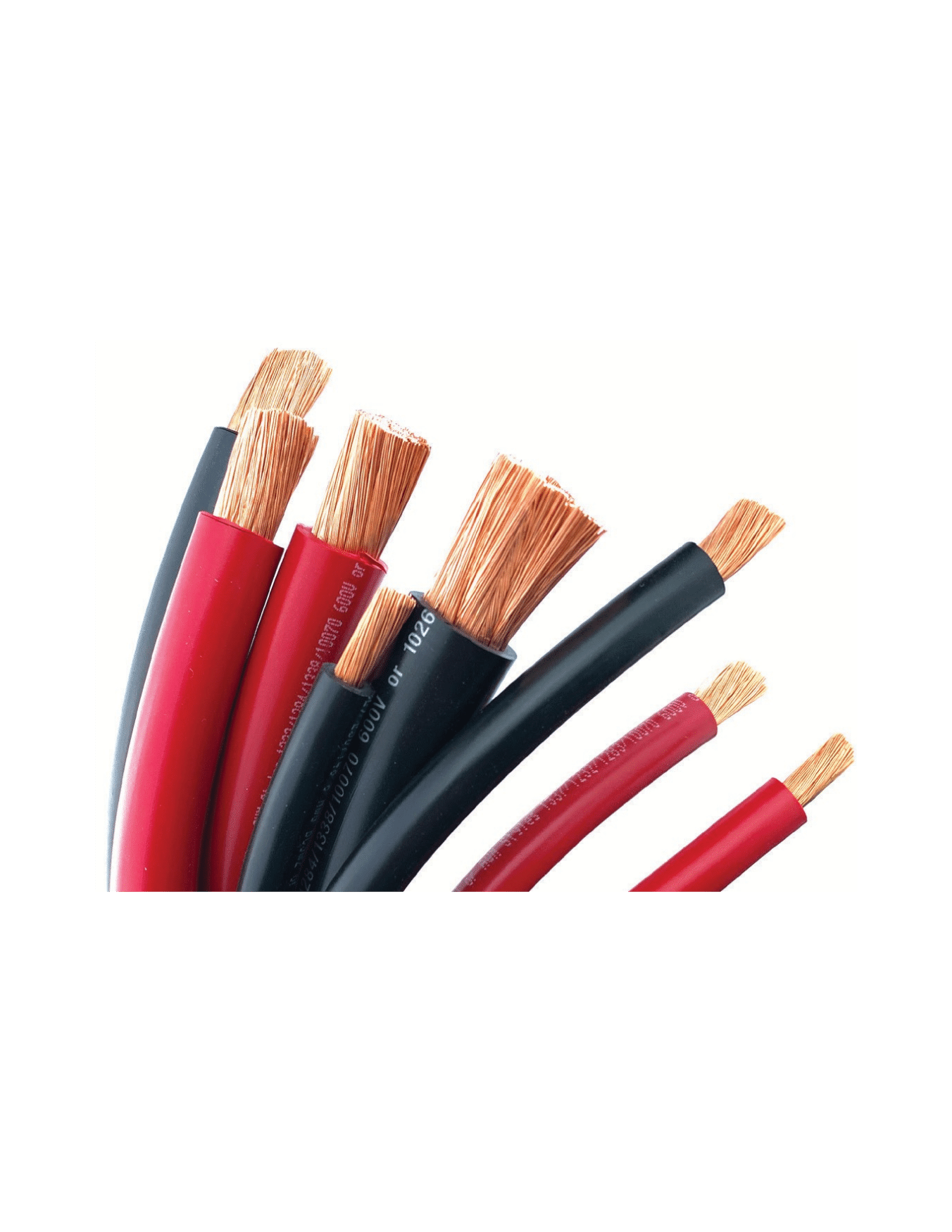

• Premium USA-made welding cable
• High strength tear-resistant flexible EPDM jacket
• Excellent resistance to cuts, abrasion, slag, and impact
• Superior flexibility, even at cold temperatures to -50°C
• Resistant to heat, flame, solvents, water, grease, oil, weather and ozone
• Special stranded conductor for added flexibility and easy handling
• Sequentially marked; Class K stranding
• Available in custom-cut sections fully assembled with ends
• Boxed cable kits optimized for shipping and display
• Private labeling is available. MOQs and lead times will apply
• Only the highest quality cable accessories are used in our custom cable kits
• RoHS Compliant
• Lead-free
• Silicone-free
• Made in the USA

SPEC SHEET

 Features

• Used as power feed leads from the welding power source unit to the electrodes for arc welders; NEC article 630 electric welders
• Highly flexible lead cable is used on battery cables and temporary or permanent lead cables
• For use in all welding applications requiring leads, grounds, and stingers/ whips.
• Manufacturing - Architectural and Structural Metals, Mining, Agricultural, Motor Vehicles, Aerospace, Shipbuilding
• Construction - Residential, Commercial, Bridges, Dams, Utilities
• Or any other industry where welders may work

Technical Specifications

Spark Tested for 600V

Voltage rating procedure incorporating the IPCEA-S-19-81 D.C. spark test.

AWG                Voltage (KV)

6 to 2                    22.5

1 to 4/0                 27.0

Separators: Paper separator for ease of strip ability
Colors: Black, Blue, Red, Green, Orange, Pink, Yellow, and White Other colors are available upon request provided they are in our warehouse.
Packaging:

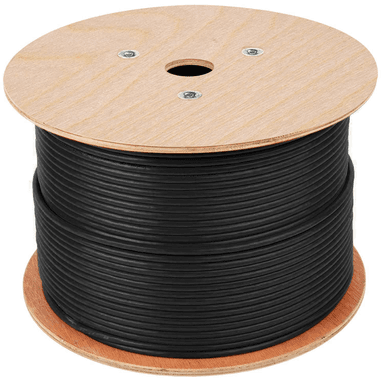

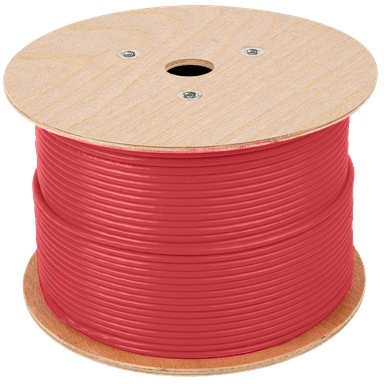

• Standard lengths: 250’ and 500’ reels; also available in 1,000’ and 100 m reels
• Coiled, boxed, and shrink-wrapped package options for 25, 50, and100 ft. lengths
• Custom lengths available upon request

Insulation: EDPM
