Description:

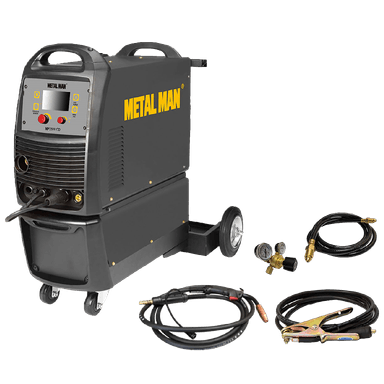

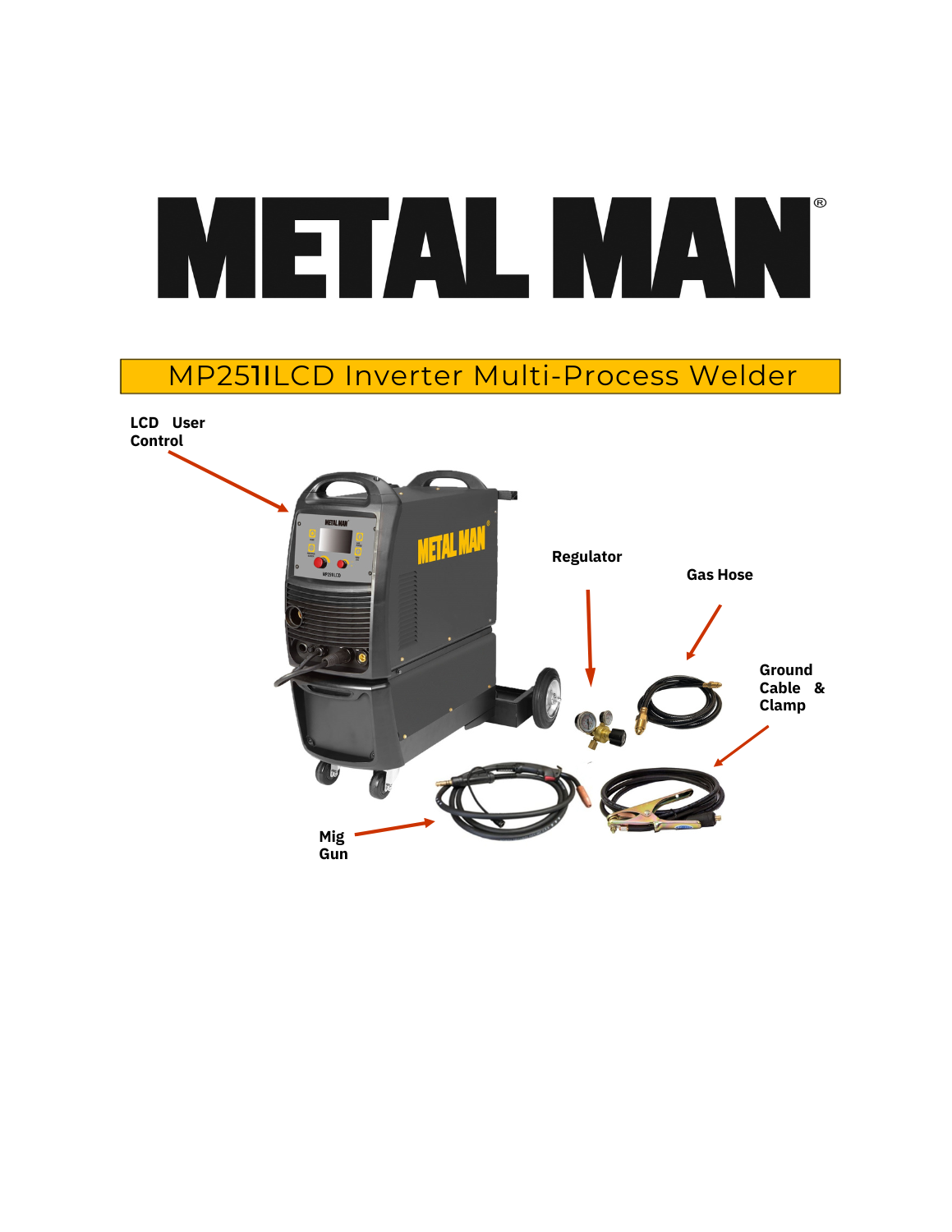

The Metal Man MMP251ILCD is an inverter-powered, wire feed welder for flux core and MIG welding plus a DC stick welder. It features a Synergic LCD control that allows the operator to program parameters by process, wire, material, and gases used and can be saved and recalled for future use. It comes complete with a regulator, gas hose a MIG gun, and a ground cable and clamp. An optional electrode holder (MMEH35-70-10FT) is available for DC stick welding and an optional TIG Torch (ACCT2V) for DC lift arc TIG welding. Directly connect this unit to a 230V NEMA 6-50R receptacle.

It is designed to weld materials as thin as 24 gauge up to 1/2" in a single pass. The optional Spool Gun (EZFSG2) is capable of welding aluminum with 4" spools of aluminum wire. This unit can also perform lift start DC TIG welding on steel and stainless steel materials with TIG Torch (ACTT2V) Argon shielding gas and a TIG filler rod would also be required for TIG welding. Order Part Number: MMP251ILCD

 Specification:

• Power Supply 230V, 45A, 50/60 Hz,
• Single Phase
• No-Load Voltage 69V DC
• Output Range – MIG/FLUX Core 40 to 250A DC
• Output Range - STICK 20 to 200A DC
• Output Range - TIG 15 to 250A DC
• Duty Cycle - MIG 20% @ 250A
• Duty Cycle – Stick 20% @ 200A
• Duty Cycle – TIG 20% @ 250A
• Suggested Wire Steel, Stainless Steel, Aluminum
• Wire Sizes .023, .030; .035, .045
• Electrodes E6013, E7014, E7018,Stainless Steel
• Electrode Diameter 1/16 inch to 5/32 inch
• Product Dimensions 24-1/8” x 11-7/8” x 18-3/4”, 72 lb.
• Shipping Dimensions 29” x 14” x 22-1/4”, 83 lb.
• UPC Code 857448005964

SPEC SHEET

VIDEO
