Description

• Multi-process inverter
• 2" x 3" LCD screen
• Synergic

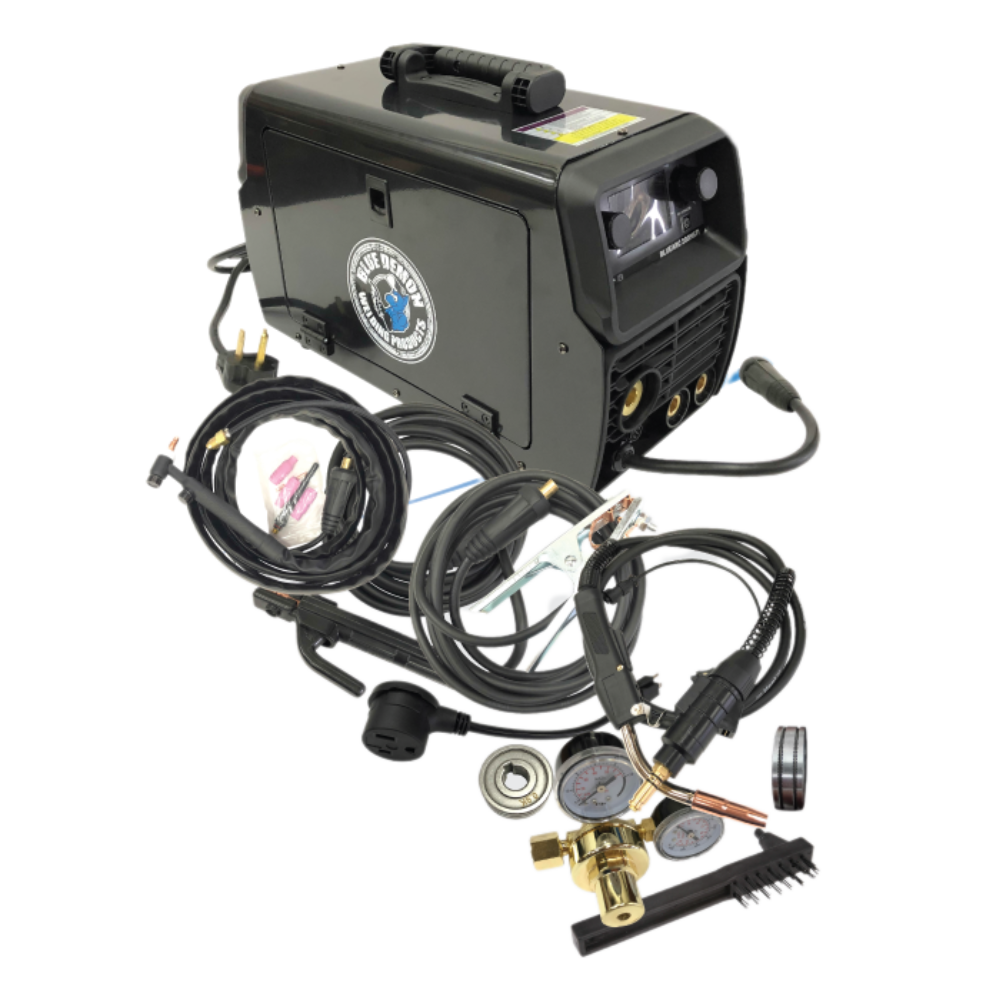

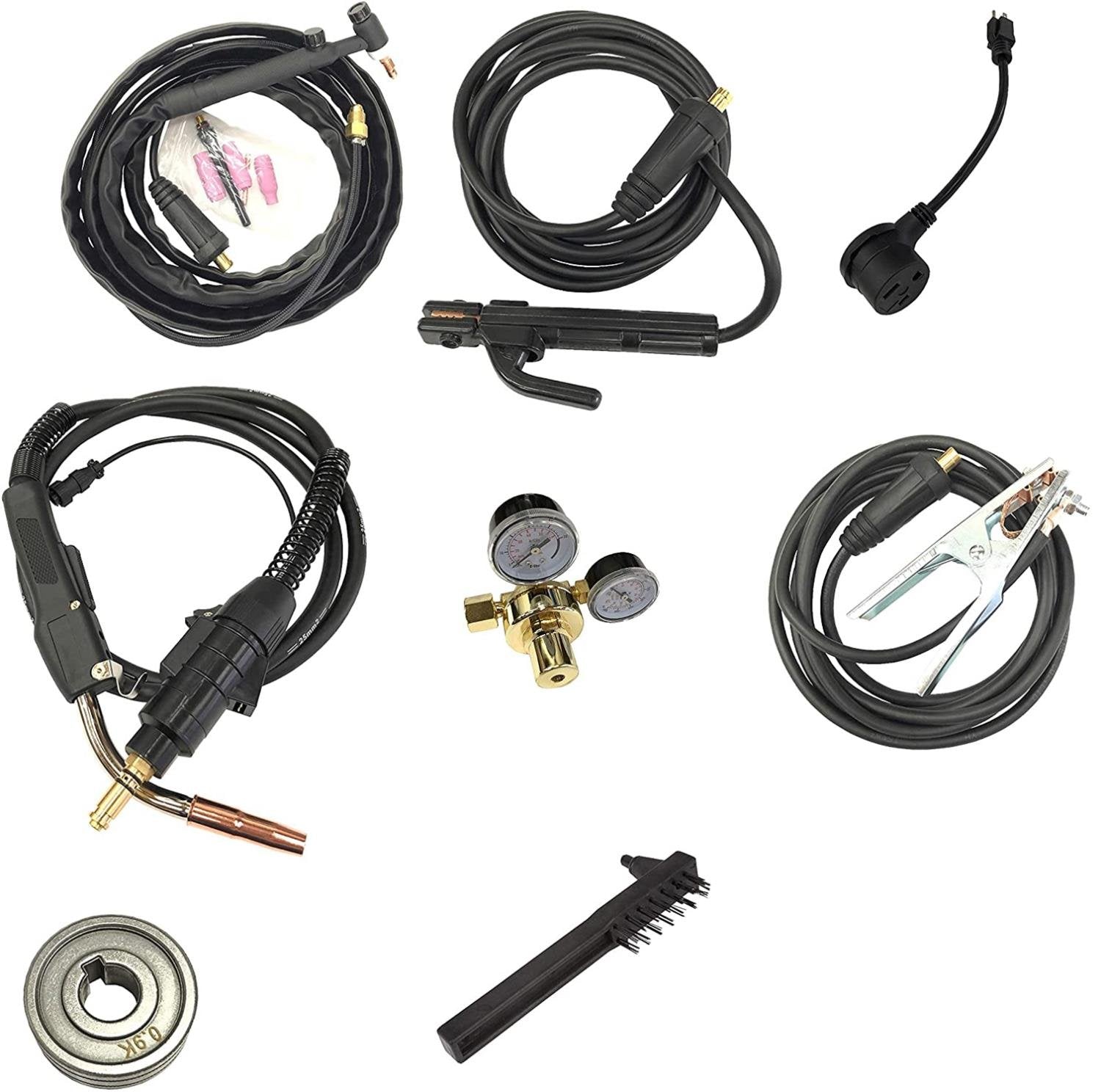

• Comes with all process torches

Technical Specifications

- Multi-process GMAW-FCAW-GTAW-SMAW
- 2” x 3” LCD screen with user-friendly interface
- Synergic settings
- Tweco® style back-end connections and consumables
- IGBT inverter technology
- Electron reactor control
- Closed feedback circuit, invariable voltage output, and ability to balance
 voltage up to ±15%
- Welding voltage can be preset, and the voltage displays the preset
 voltage value when not welding.
- Both welding current and welding voltage can be viewed at the same time.
- Burn back time is adjustable.
- Slow wire feeding during arc start
- Small-size, light-weight (38lbs), easy to operate, and economical.

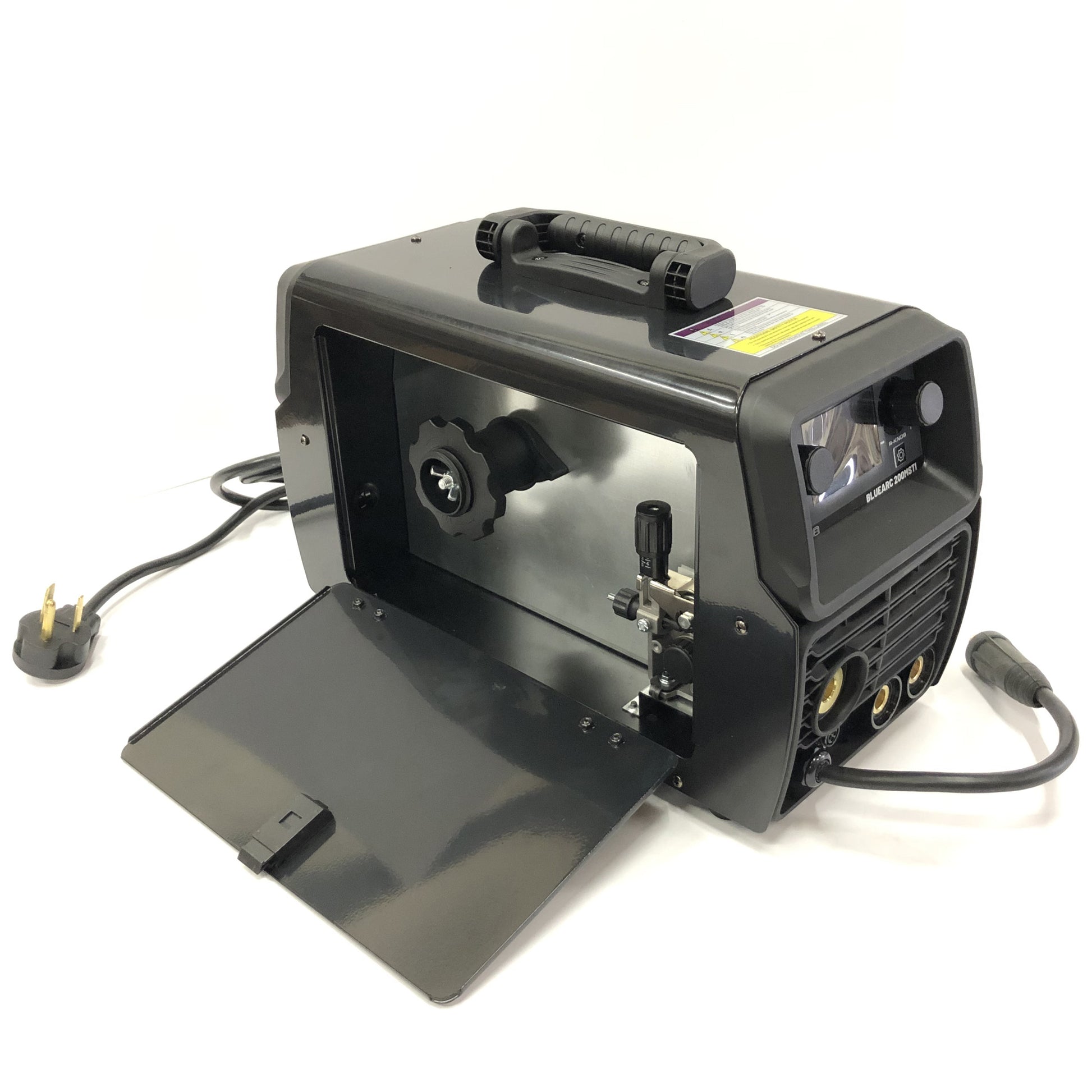

- The wire feeding part is separated from the welding machine,
 wide welding operation range.

Additional Info

• Power supply voltage (V)       -  Single-phase 220V±15% (min 20A breaker)
• Input current (A)                      -  38
• Power supply capacity (KVA)  - 8
• Current adjustment range (A) - 50～200
• Output voltage (V)                    -  15～24
• Rated output current (A)          -   200
• Rated output voltage (V)          -   24
• Rated duty cycle (%)                 -   30
• Gas Regulator Included             - Yes
• Gun & Cable Included                - Yes
• Gas Bottle Included                    -  No
• Power factor                              -  0.75
• Efficiency (%)                              -  85
• Wire feeder type                        -  External/Internal
• Post-flow time (s)                       -   1
• Welding wire diameter (mm)    - 0.6/0.8/1.0
• Machine size (mm)(in)                    -  480x310x430 - 18.900 in. L x 12.200 in. W x 16.900 in. H
• Machine weight (kg)                  - 17 (37.4lb)
• Plate thickness (mm)                  - ≥0.8
• Insulation class                            -  F
• Protection class                           -  IP21S1
