Description

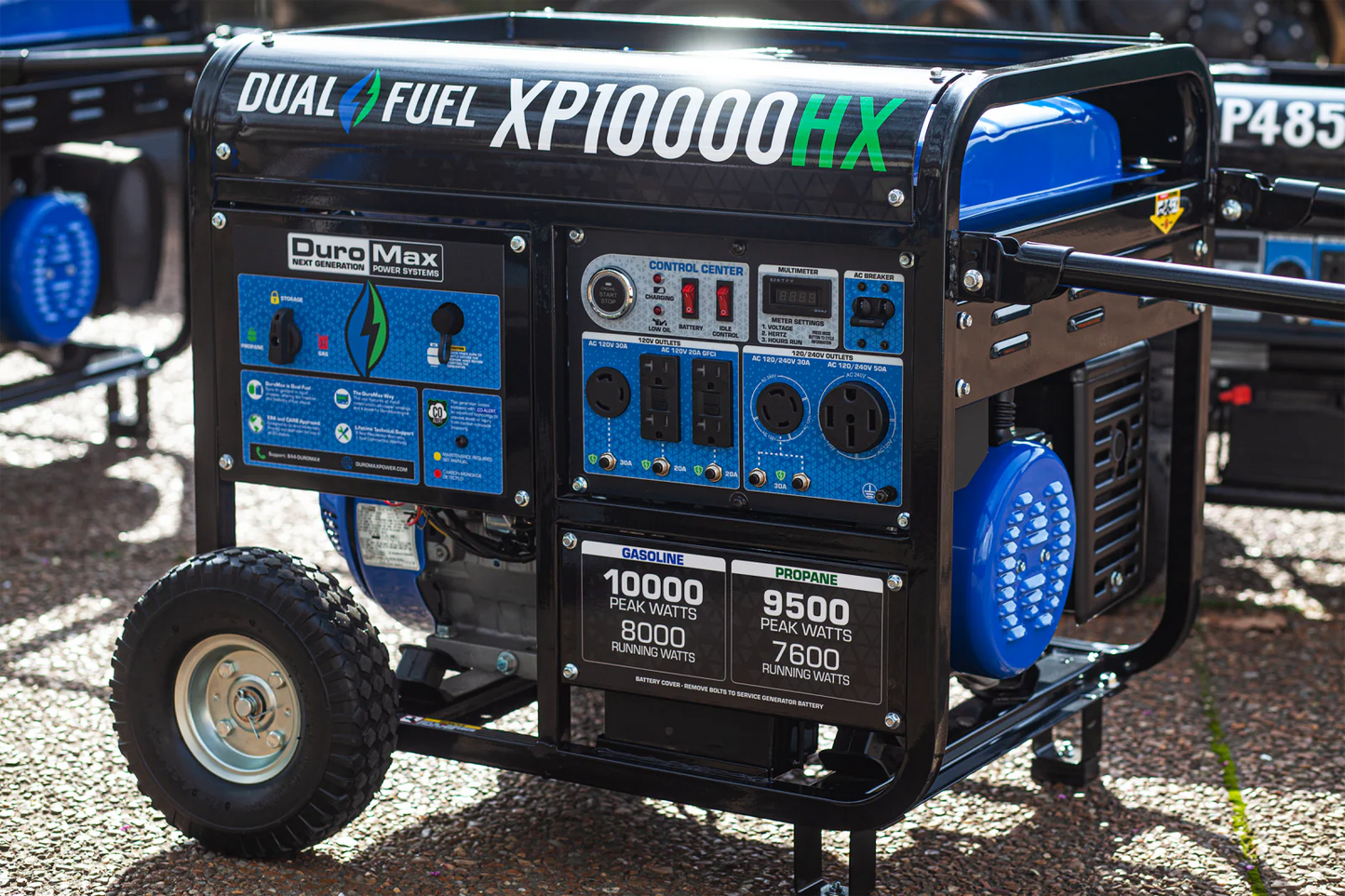

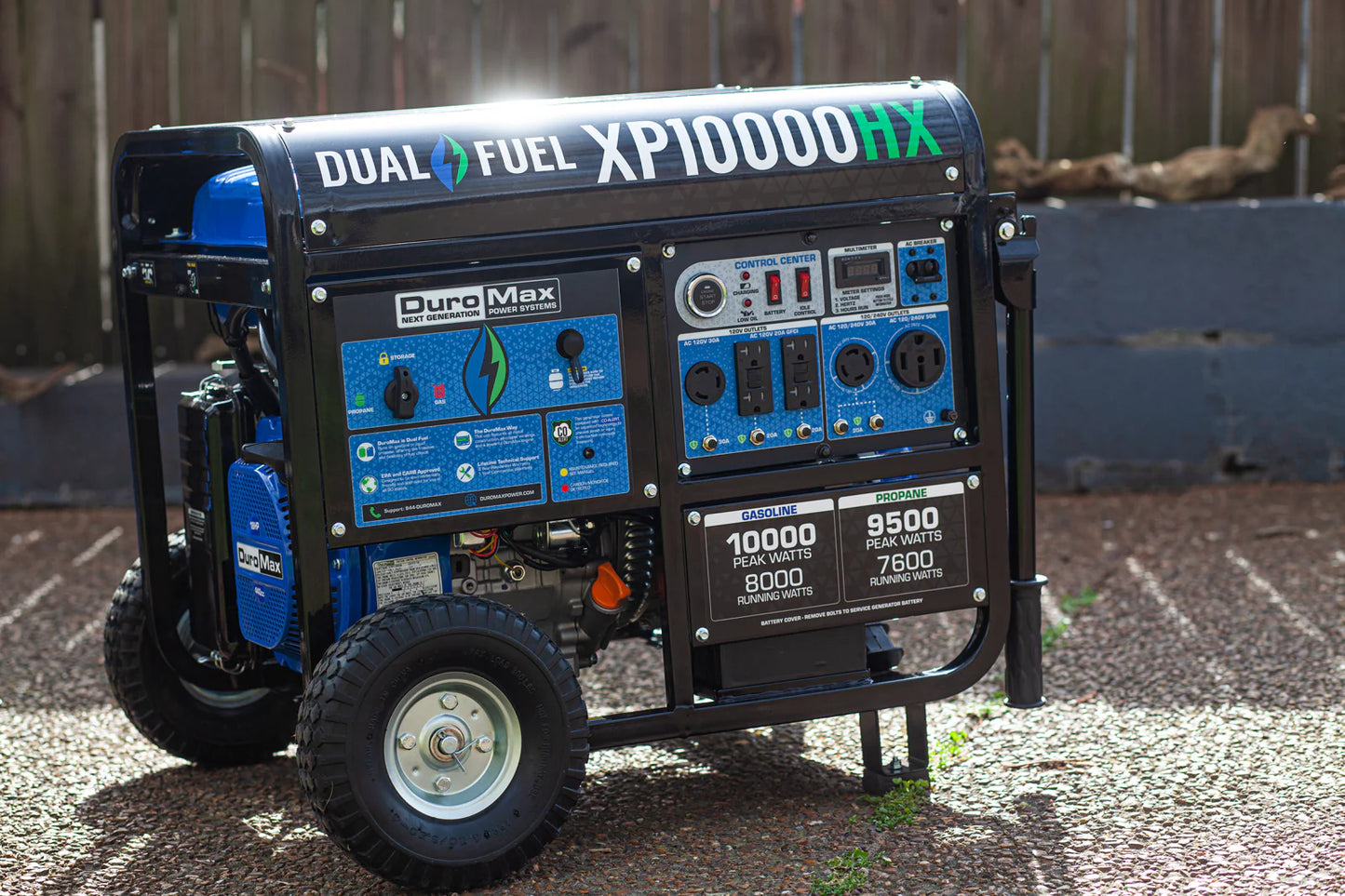

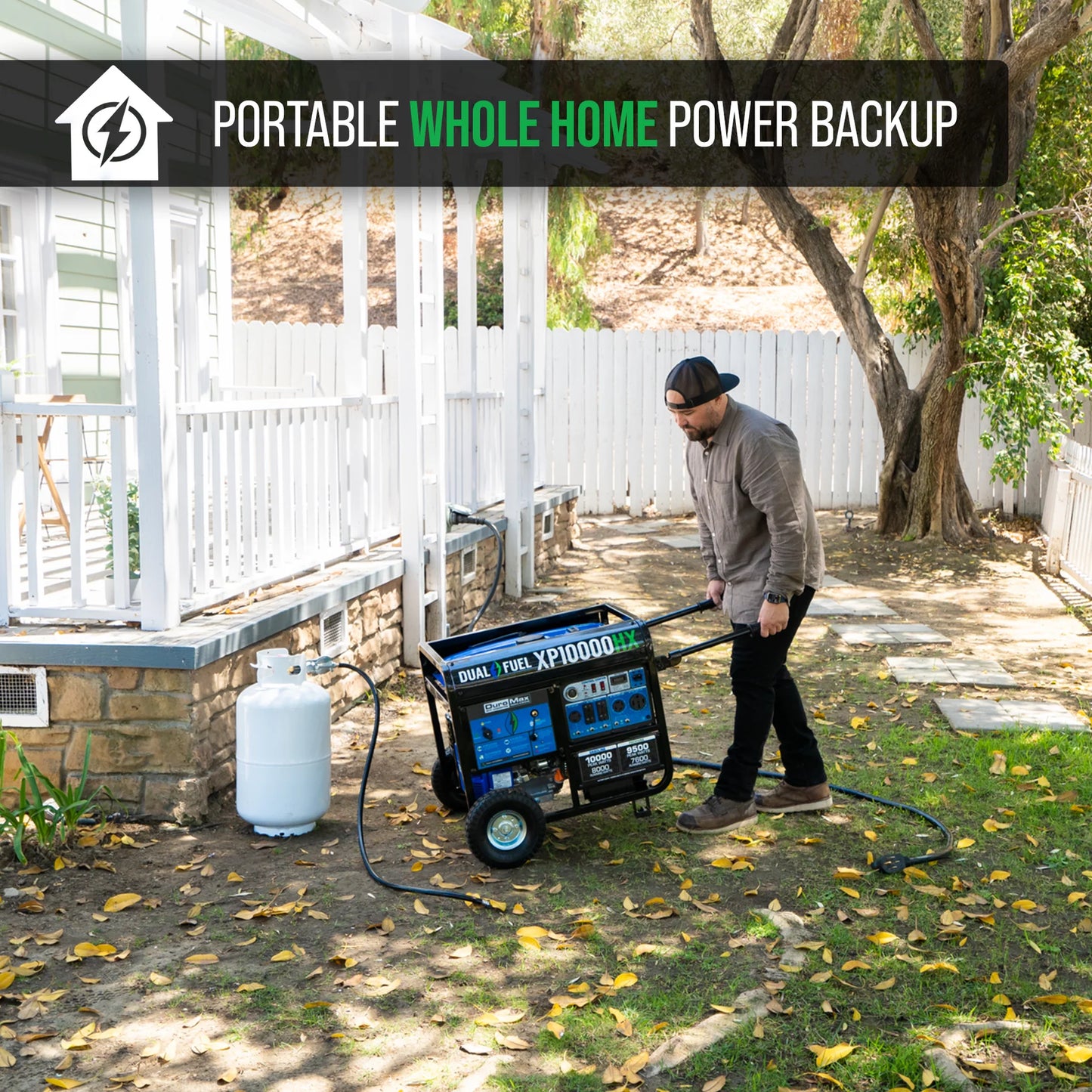

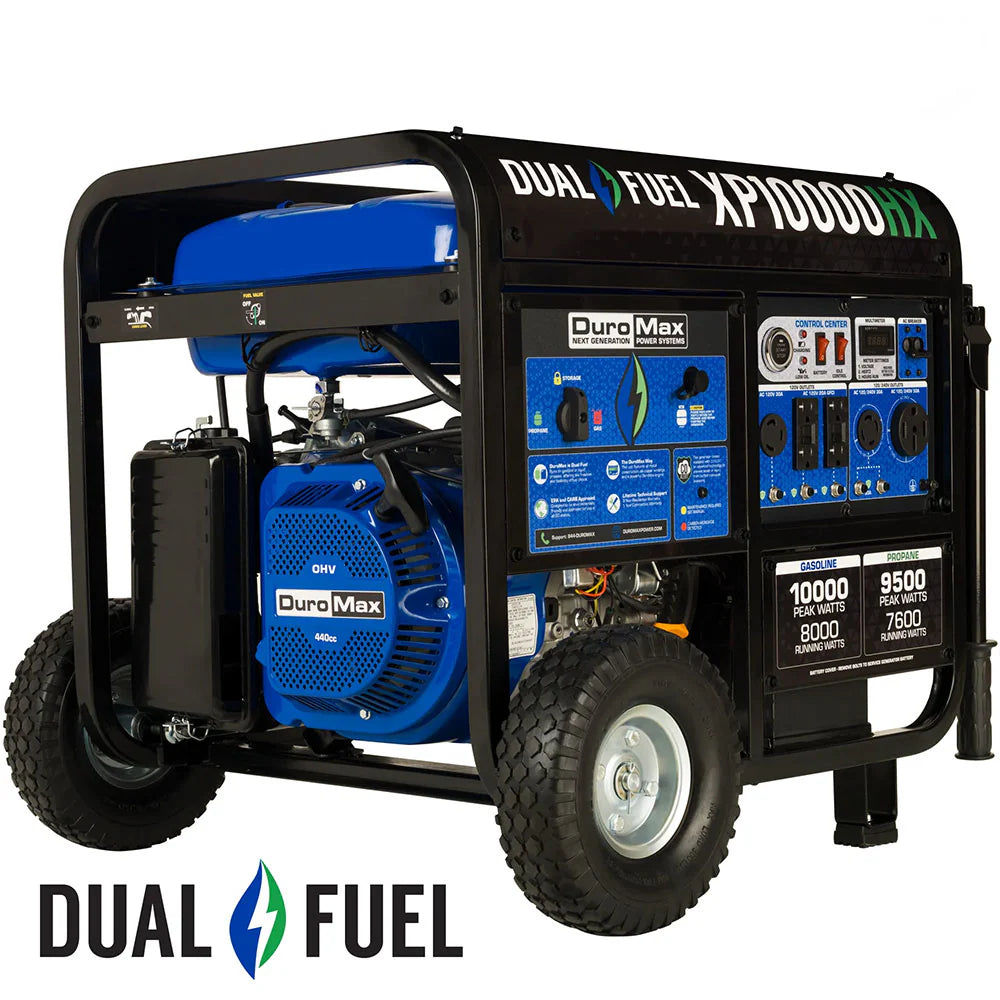

The XP10000HX is the most versatile model of the HX Series with 10,000 watts of POWER. This unit provides the power normally found in stationary home standby generators but in a more affordable, portable package! With a 439cc OHV DuroMax Engine, this workhorse is PERFECT for HOME BACKUP and can power most household essentials such as lights, appliances, and even central A/C systems during any power outage, storm, or emergency event.

SERVICE MANUAL

Features

• Power Your Entire Home

  With 10,000 watts of power, the XP10000HX Dual Fuel generator will keep your whole home running during a storm or power outage, while protecting your family from harmful fumes with CO Alert.

  • Dual Fuel Technology

    DuroMax is the industry leader in dual-fuel portable generator technology, with a full assortment ranging from digital inverters to generators that can power your entire home.

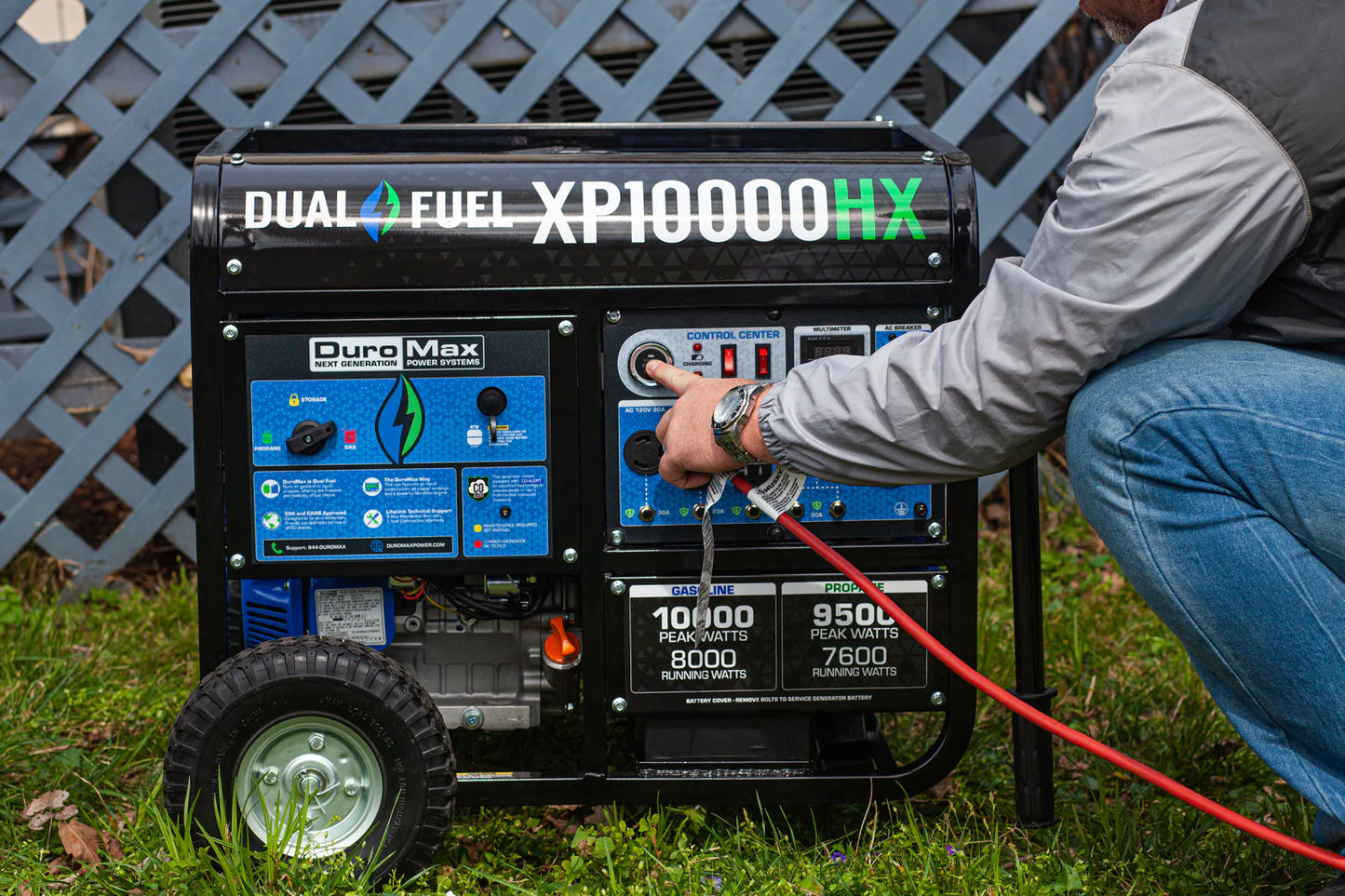

    Power Panel

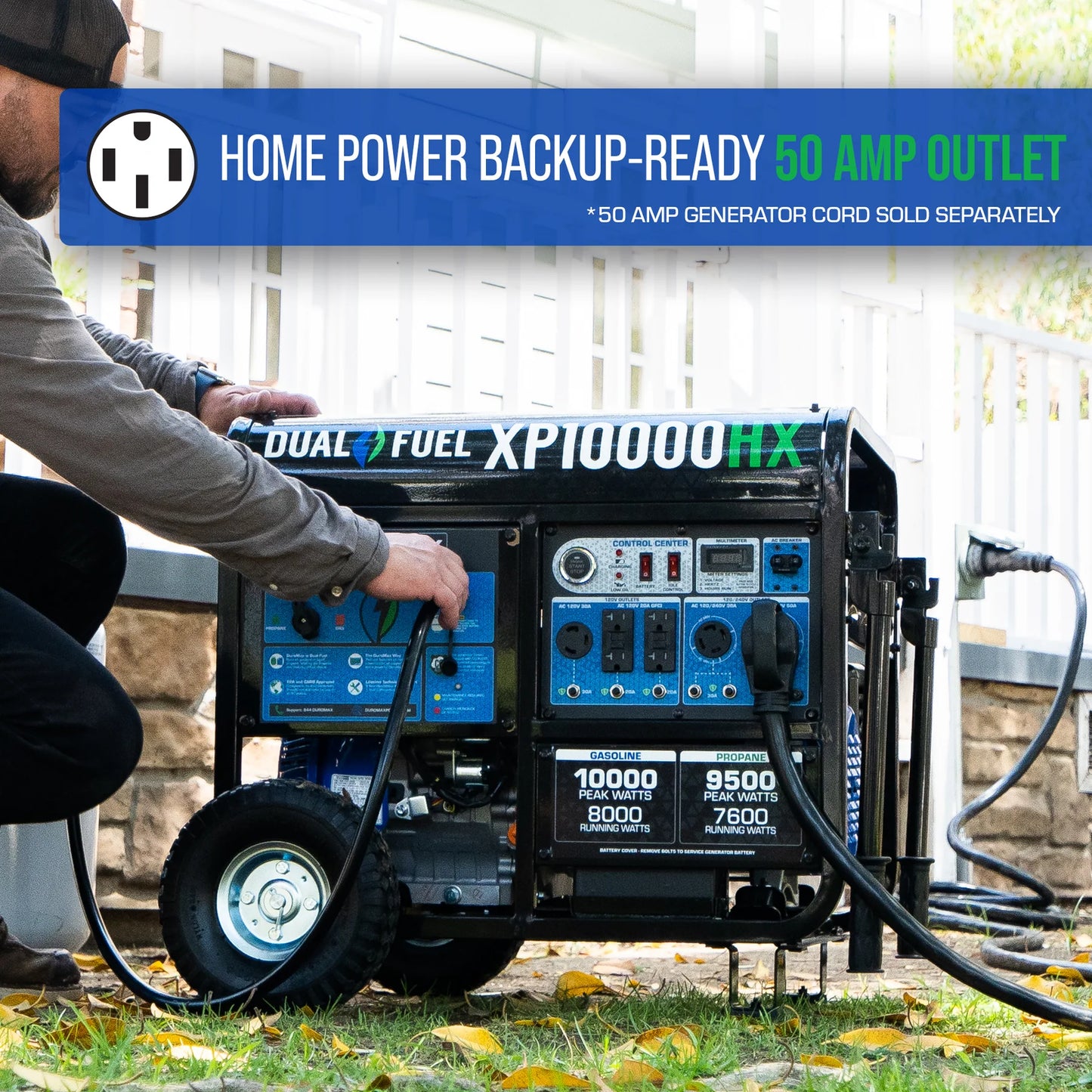

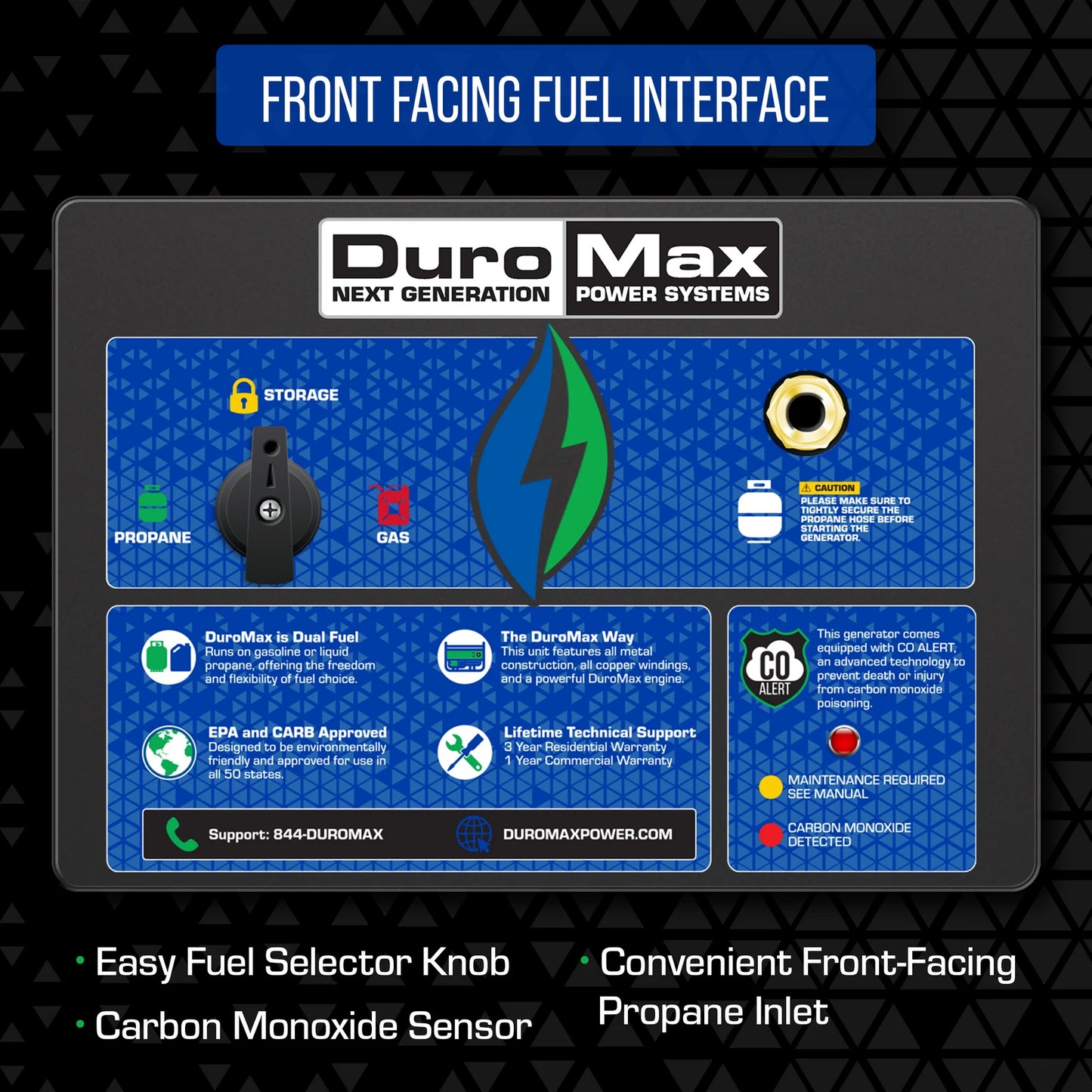

    The XP10000HX comes with a push button start, a front facing interface that allows you to change your fuel type in seconds, and a wide variety of outlets (including a transfer switch-ready 50 amp outlet).

    •

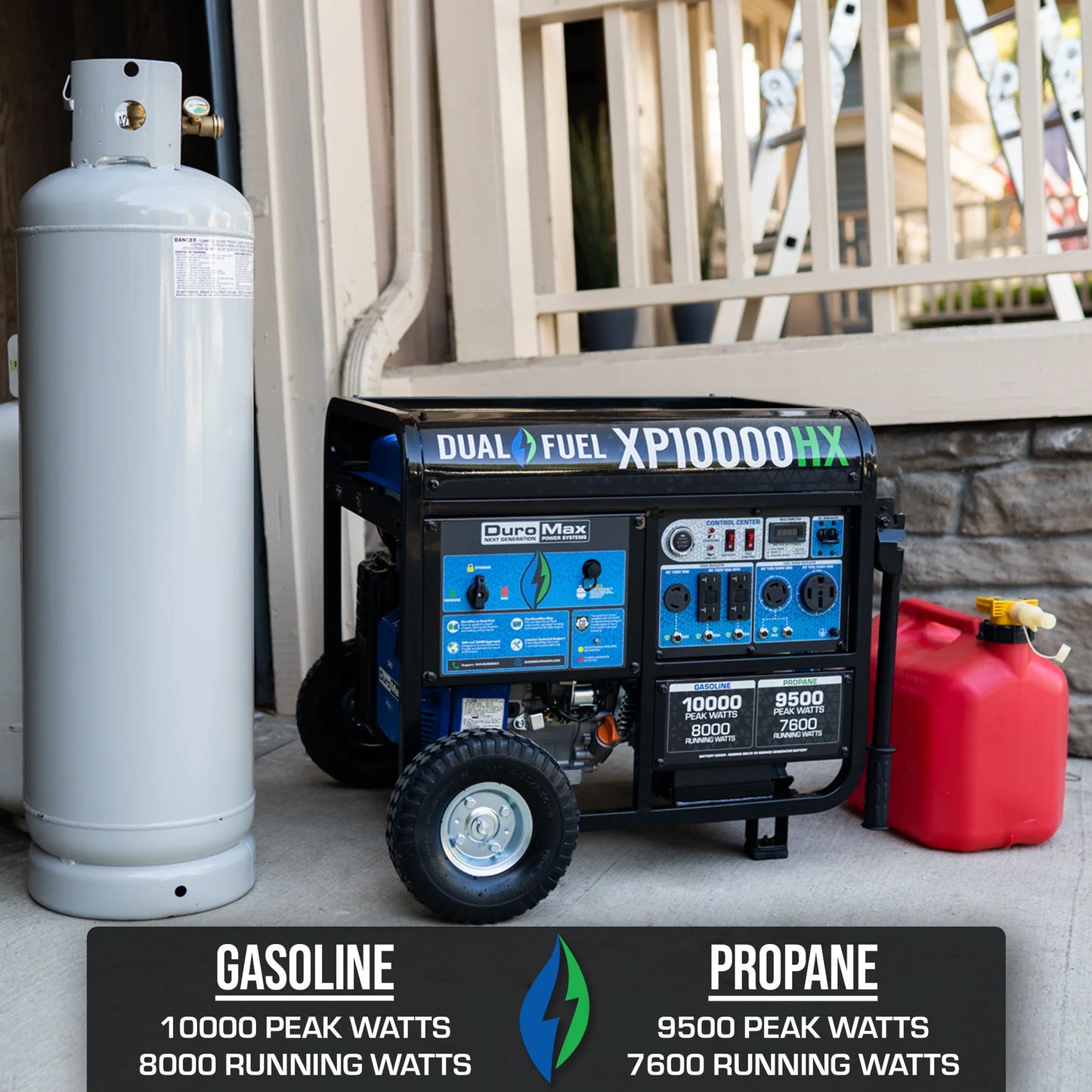

    Gasoline
    Peak Wattage	10,000
    Running Wattage	8,000
    Running Amperage at 120V	66.67
    Running Amperage at 240V	33.33
    Runtime at 25% Load	22
    Runtime at 50% Load	10

    Propane
    Peak Wattage	9,500
    Running Wattage	7,600
    Running Amperage at 120V	63.33
    Running Amperage at 240V	31.67
    Runtime at 25% Load	17
    Runtime at 50% Load	9

    Engine & Emission Specifications
    Engine Manufacturer	DuroMax Power Equipment
    Engine Type	4-Stroke
    Valve Type	OHV
    Engine Cooling Type	Forced Air
    Engine Size	439cc
    Engine Speed	3600 RPM
    Starting Type	Push Button
    Electric Start	Yes
    Recoil Start	Yes
    Idle Control	No Load Low Idle
    Fuel Delivery System	Carburetor
    Fuel Types	Gasoline and Propane
    Oil Cooling Type	Splash
    Recommended Oil	10W-30
    Recommended Oil Types	Blended, Conventional, or Synthetic
    Oil Capacity	37.2 fluid oz
    Suggested Propane Tank Size	40 lbs. minimum
    Automatic Low Oil Shutdown	Yes
    Cast Iron Sleeve	Yes
    Bearing Type	Stainless Steel Ball Bearing
    CO Sensor Shutdown	Yes
    EPA Certified	Yes
    CARB Certified	Yes
    50 State Emissions	Yes

    Panel Specifications
    GFCI Outlets	Yes
    Battery Switch	Yes
    Volt Meter	Digital
    Hour Meter	Yes
    5-20R	4
    L5-30R	1
    L14-30R	1
    14-50R	1

    Generator Specifications
    Manufacturer	DuroMax Power Equipment
    Part #	XP10000HX
    Voltage	120/240 Volts
    Frequency	60 Hertz
    GFCI Outlets	Yes
    4 Foot Propane Hose & Regulator	Included
    Winding Material	100% Copper Windings
    Automatic Voltage Regulator	Yes
    Battery Type	12V SLA
    Battery Included	Yes
    RV Ready	Yes
    Home Backup Ready	Yes
    Fuel Tank Capacity Gasoline	8.3 Gallons
    Fuel Gauge	Yes

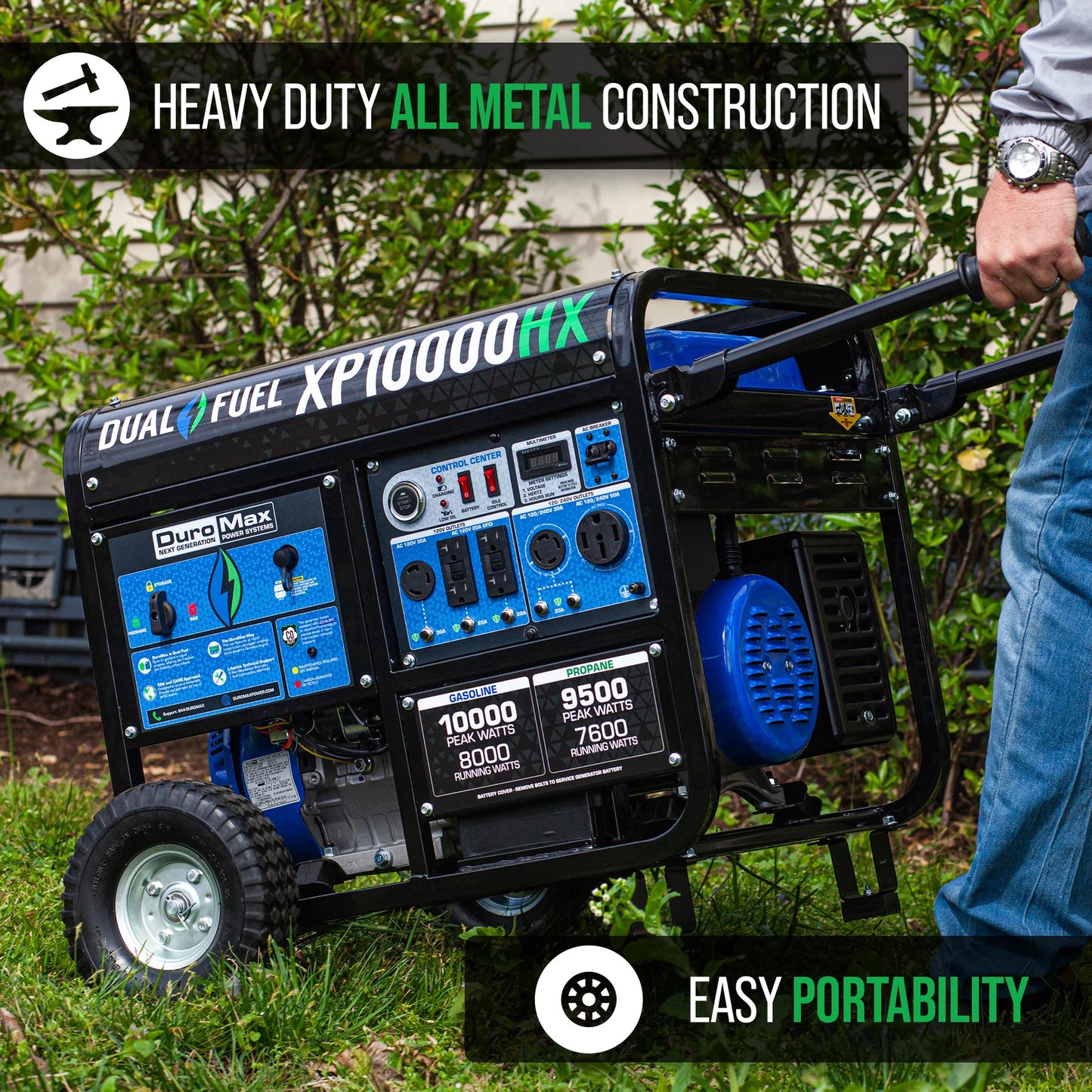

    All Metal Construction	Yes

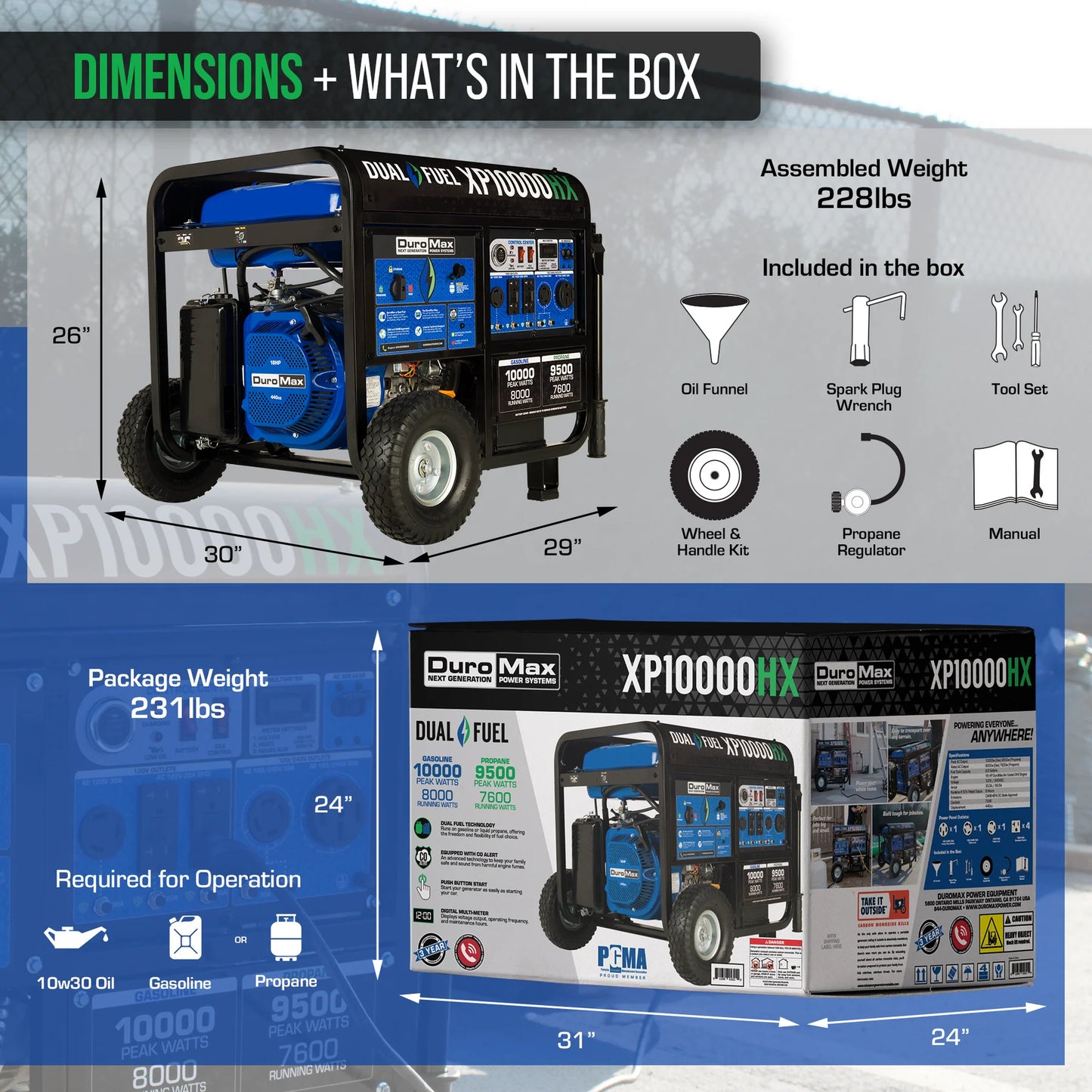

    Product Dimensions	29"-Long x 30"-Wide x 26"-High
    Product Dry Weight	228-lbs
    Product Weight	231-lbs
    Volume (db)	72 dB
    UPC	811640016210
    Warranty	5 Year
    Wheel & Handle Kit	Included
    Wheel Type	Metal Hub
    Wheel Diameter	10-Inches
    What's in the Box?	XP10000HX Generator, Oil Funnel, Spark Plug Wrench, Tool Set, Wheel & Handle Kit, Propane Regulator, and Owner's Manual
