Description

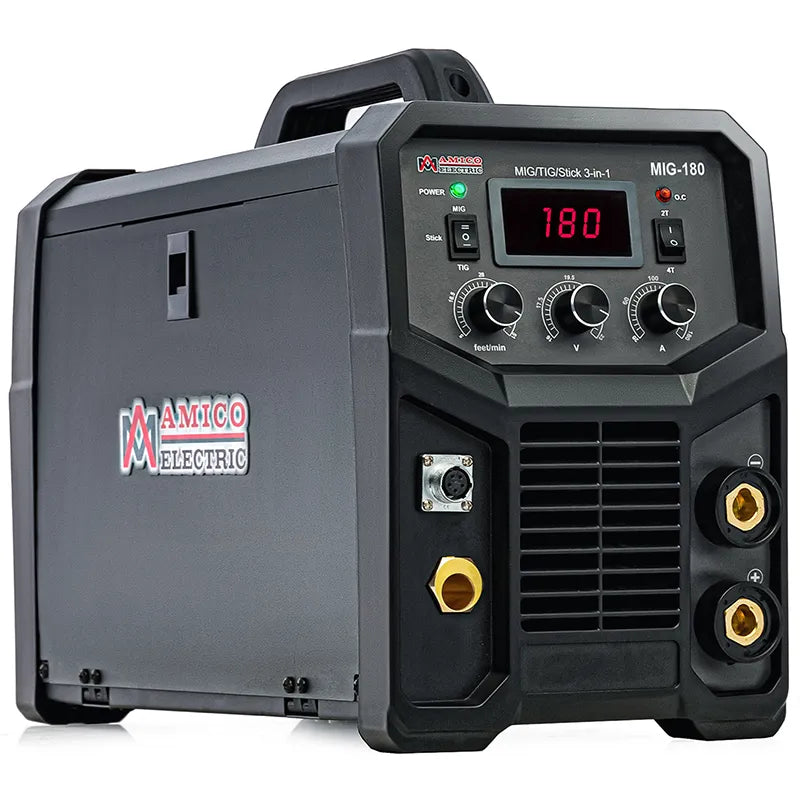

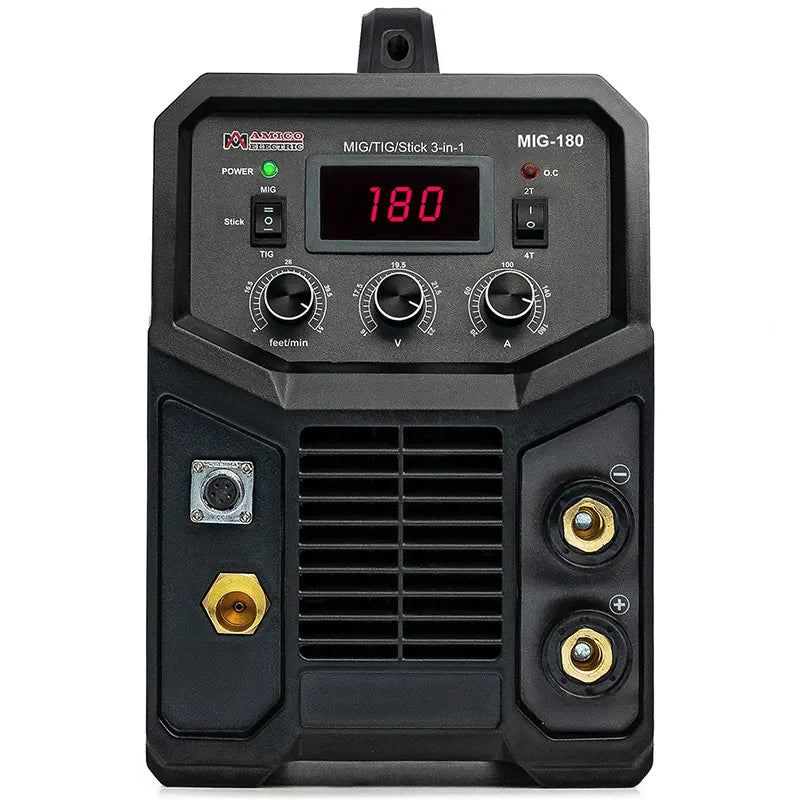

• MIG-180 integrates the most innovative design structure and technology and includes all functions of every welding machine: MIG, MAG, Flux-Core, Lift-TIG, Stick, and Spool Gun welding. It can perfectly weld all conductive metals: aluminum, aluminum alloy, stainless steel, alloy steel, carbon steel, steel, cast iron, iron, and copper – all up to about 3/8 inch. This is the most efficient machine for all tasks, including industrial manufacturing, car modifications, and professional maintenance.

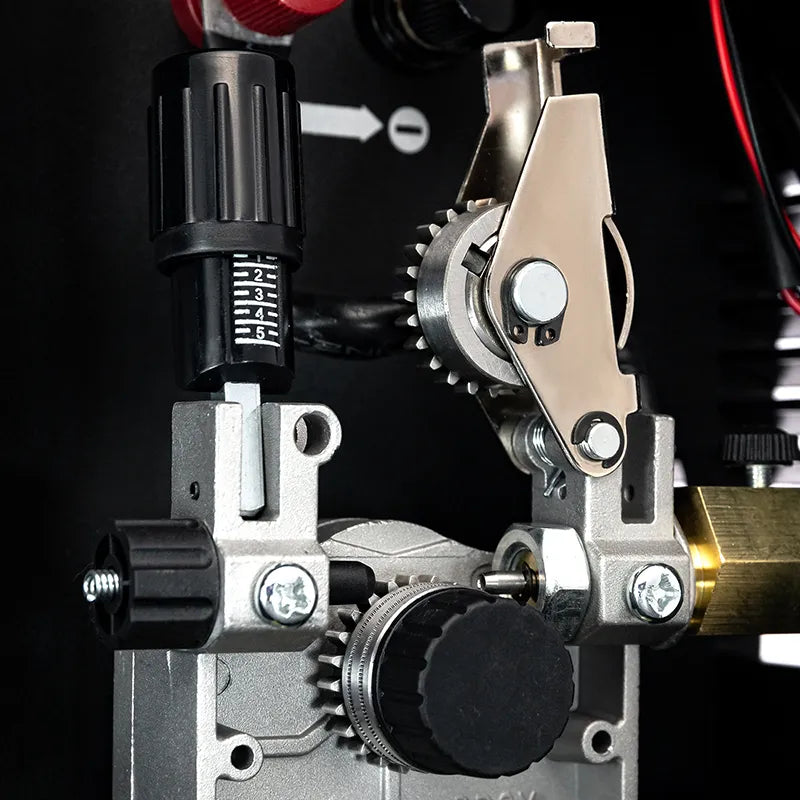

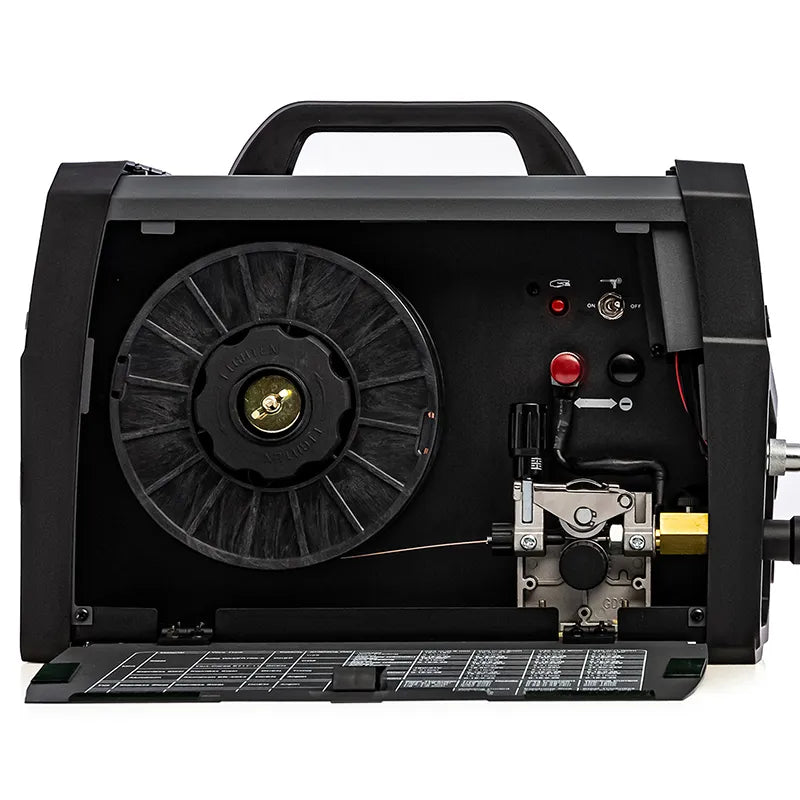

• MIG: Designed and manufactured according to the highest standard of industrial welding machines; 10-pound (8 inches) and 2-pound (4 inches) spools can be used. The high-performance double-gear drive wire feeder is manufactured with the highest technology, allowing the wire feeding speed to be stable and efficient. When using MIG/MAG/Flux-Core welding, adjusting the welding current and wire feeding speed is very simple, easy, and direct.
• STICK: With professional manufacturing and strong penetration, it is compatible with all electrodes: E6010, E6011, E6013, E7014, E7018, etc. With a thrust adjustment function, a built-in hot start function, an electrode anti-stick function, and a current intensity control function, it can complete all work and tasks efficiently and easily. It is a reliable and effective tool for professional welders and a dream machine for beginners.
• LIFT-TIG: It can weld thin stainless steel and various other metals efficiently and safely and without high-frequency interference. The automatic temperature control function makes the machine run very quietly. The package includes a 10-feet MIG torch assembly, a 10-feet 300-amp electrode holder assembly, a 10-feet 300-amp ground clamp assembly, and a 115/230V power adapter.
• An intelligent power supply system can automatically detect the input voltage and can easily switch between 115V and 230V. Extending the power cord by 700 feet can also resist power fluctuations and cable attenuation, allowing it to still function efficiently. It is very suitable for difficult operations on construction sites, house maintenance, docks, agricultural sites, and even remote areas.

Specifications:

Welder Type: 3-IN-1 MIG/TIG/STICK Combo Welder

Output Terminal Type: Direct Wire

Power Supply: AC 115V & 230V/1-Phase/50-60Hz

Rated Input Current:

• • 230V: 33.0A(MIG)/25.5A(TIG)/36.5A(STICK)
  • 115V: 37.5A(MIG)/29.5A(TIG)/45.0A(STICK)

Current Range Output:

• • MIG: 230V/40A-180A, 115V/30A-140A
  • TIG: 230V/15A-180A, 115V/10A-140A
  • STICK: 230V/15A-180A, 115V/10A-140A

Nominal DC Open Circuit Voltage (OCV): 56V

Welding Output, 104F (40C), 10 min (230V):

• • MIG: 200A/23.0V, TIG: 200A/17.2V, STICK: 200A/27.2V

Duty Cycle:

• • MIG: 60% @ 180A, TIG: 60% @ 180A, STICK: 60% @ 180A

Max. Wire Feeding Speed: 610 inch/min.

Efficiency: 93%

Power Factor: 0.85

Cooling Method: Fan Cooled

Product Size: 17.75 x 8.25 x 13.8 in.

Product Weight: 25 lbs.

Package Size: 20 x 13.8 x 15.3 in.

Package Weight: 46 lbs.

Includes

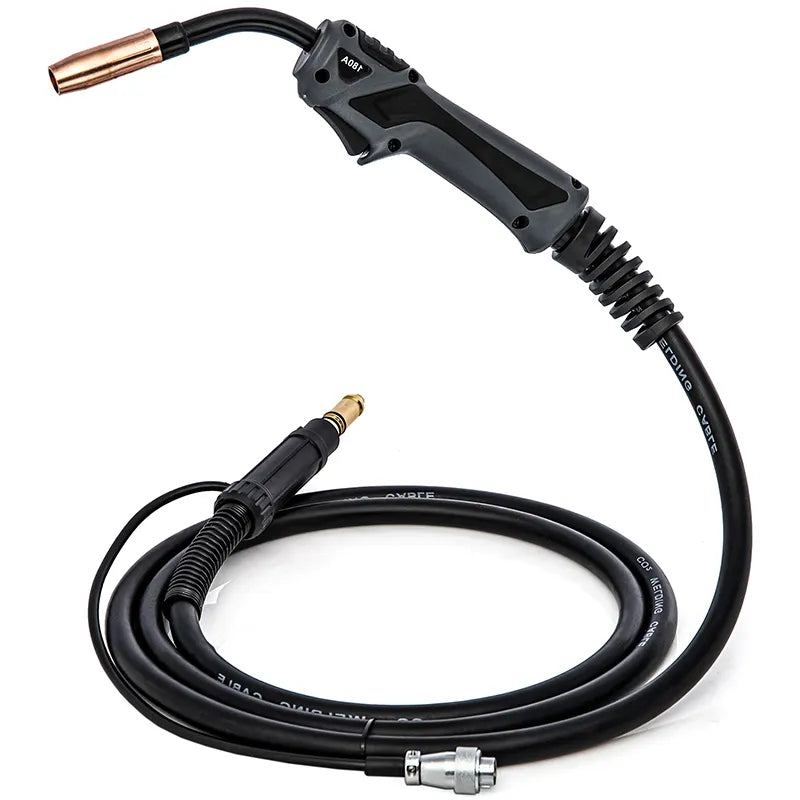

• 10 ft. Pro. MIG Torch Assembly

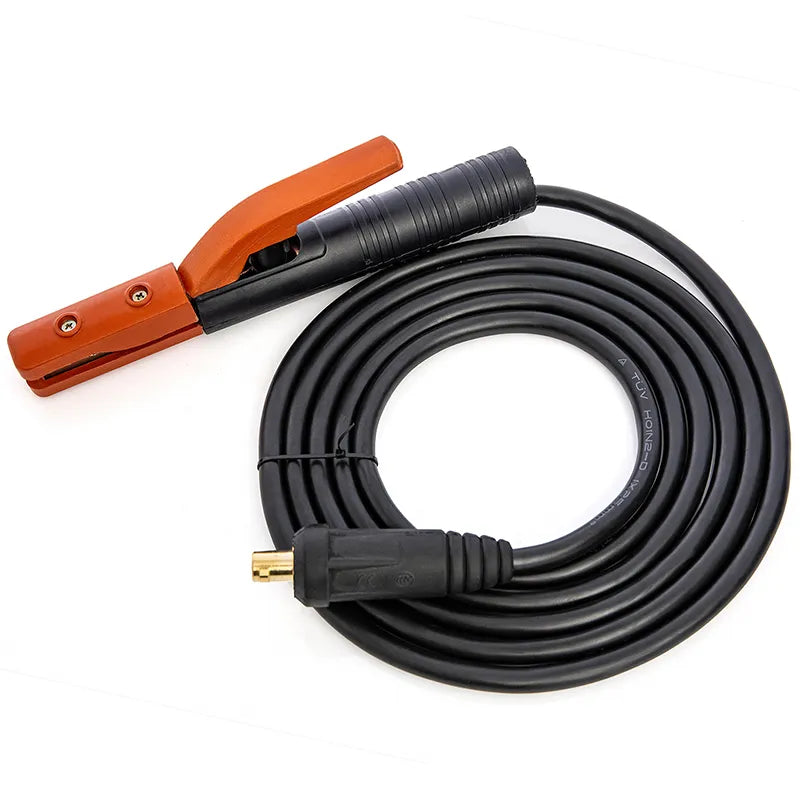

• 10 ft. Electrode Holder Assembly

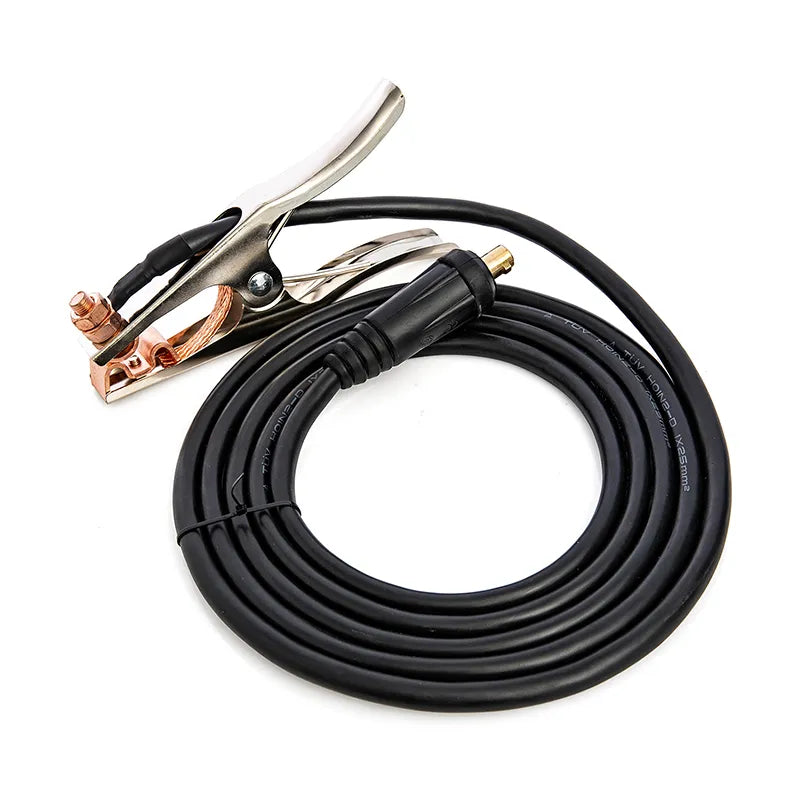

• 10 ft. Work Clamp Assembly

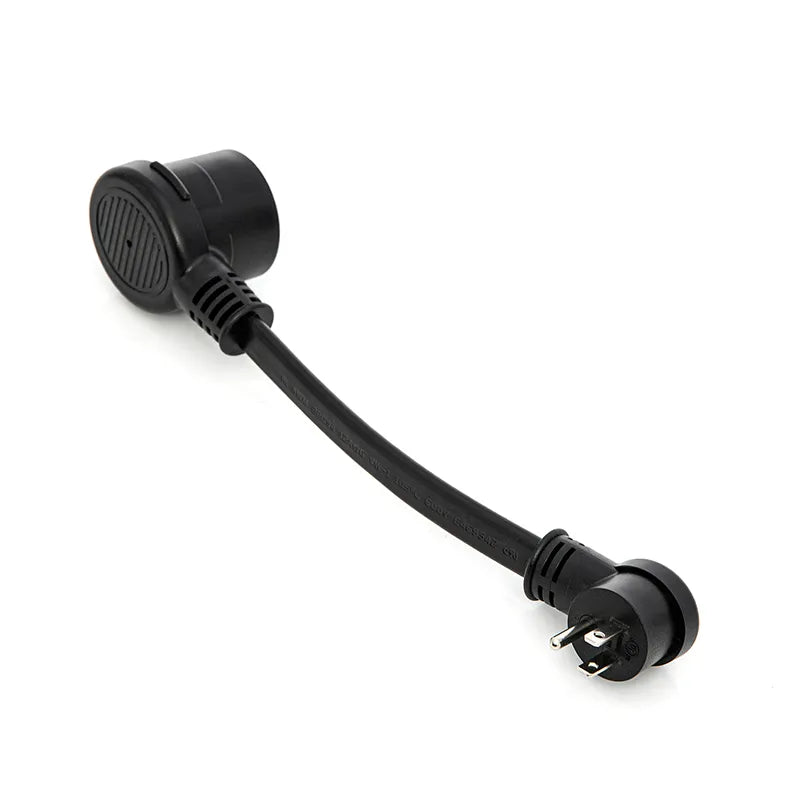

• 230V to 115V Power Adapter
• 7 ft. Power Cord N6-50P Plug
