Description:

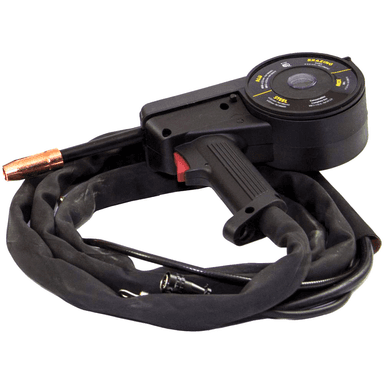

The METAL MAN EZ Feed Spool Gun is designed to connect to select METAL MAN welders only. It is used to feed wires that are difficult to feed through the standard MIG torch. Most often the EZFSG2 Spool Gun is used for aluminum wires, but any type of wire can be used on 4 in. spools. The 4 in. spool mounts right on the Spool Gun.

The distance the wire has to travel is greatly reduced, resulting in fewer feeding problems and better overall welds. The METAL MAN EZ Feed Spool Gun is rated at a 35% Duty Cycle at 200 Amp when using CO2 gas and is rated at a 35% Duty Cycle at 160 Amp when using Argon gas. This spool gun is capable of running 0.030 and 0.035 wires and is ideal for light fabrication and welding repair.

Order Part Number: EZFSG2

Specifications:

• Compatibility Works on Select Metal Man Welders
• Spool Capacity 4-inch spool
• Length 10 f t.
• Duty Cycle 35% @ 200 Amps (With CO2)
• 35% @ 160 Amps (With Argon)
• Contact Tips & Nozzles Common 11-30, 11-35 contact tips 21-50 Nozzle
• Suggested Wire Aluminum
• Suggested Wire Sizes .030 to .035
• Warranty 90 days Shipping 26” x 16” x 3 ” 7 lbs.
• Manufacturer list price: $517.62
• Manufacturer: Techniweld USA
• Brand: Metal Man
• Country of Origin: China
• Hazmat: No
• UOM: EA (1/ea)
• Package quantity: 1
• Weight (lbs): 32
• UPC 857448005551

SPEC SHEET
