METAL MAN 140A Inverter 120V Multi Process Welder

Metal Man

Regular price
Price: $652.99
Regular price
List Price: $899.29
Sale price
Price: $652.99
You save: $246.30 (27%)
Shipping calculated at checkout.

SKU:

View Cart

AUTHORIZED RETAILER


Description:

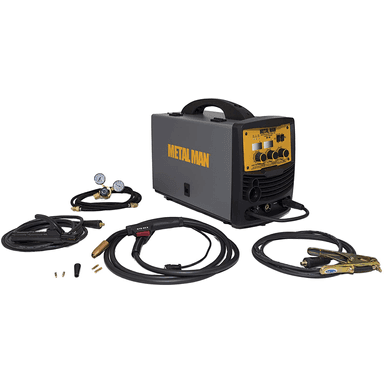

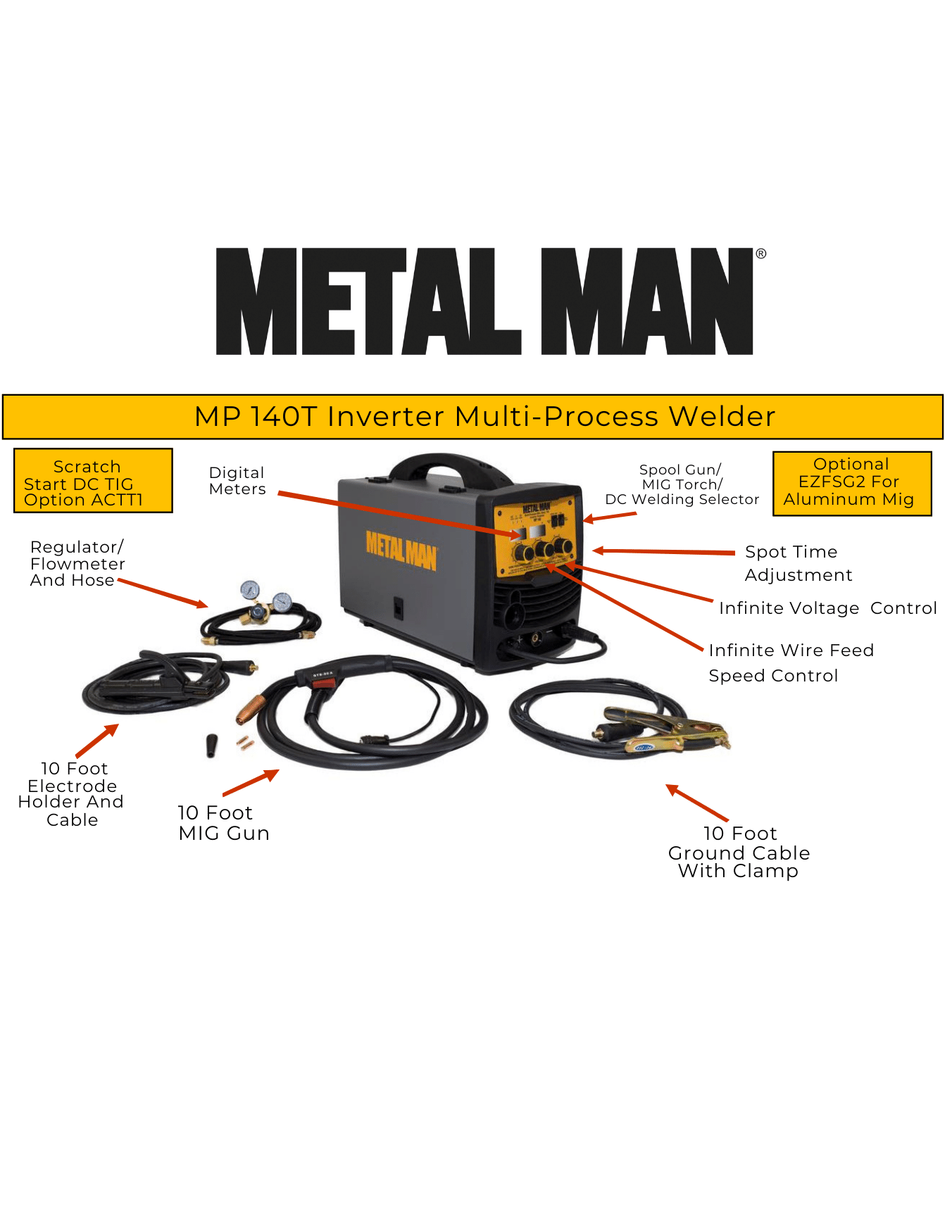

The Metal Man MP140T is a portable DC inverter wire feed welder capable of welding with solid wire (with shielding gas) or with flux core wire. It comes ready to accept part number EZFSG2 optional Spool Gun for welding aluminum. This machine also has smooth DC stick capabilities and the ability to perform scratch start DC TIG welding on steel and stainless steel materials with ACTT1, the optional TIG Torch.

This unit is capable of MIG welding 3/16ʺ steel in a single pass. It uses leading-edge Inverter Technology to provide high-quality welds that are crisp, clean, and consistent with plenty of power that will impress the most experienced welders. Stick weld with electrodes up to 3/32ʺ with this exceptionally smooth DC stick welding output. This unit is an exceptional multi-process machine. Typical applications for include home/hobbyist, construction, auto repair, farm and ranch, and light industrial applications.

 SPECIFICATIONS
  • Power Supply 120V, 20A, 60 Hx, Single-Phase
  • No-Load Voltage 68 Volts DC
  • Output Range MIG: 30-90 Amp DC, (140 Peak) STICK/TIG: 30 to 70A DC
  • Duty Cycle 30% @ 90A
  • Suggested Wire Steel, Stainless, Aluminum
  • Wire Diameters .020, .030 & .035 wires
  • Suggested Electrodes E6013, E7014, E7018, Stainless Steel
  • Electrode Sizes 1/16” to 3/32”
  • Dimensions 19-1/2” x 9-1/2” x 14-1/2”
  • Weight 24-1/4 lbs.
  • Shipping 25” x 13” x 17” 40 lbs.
  • Width (in): 13
  • Length (in): 24.125
  • Height (in): 17
  • UPC 85744800563
