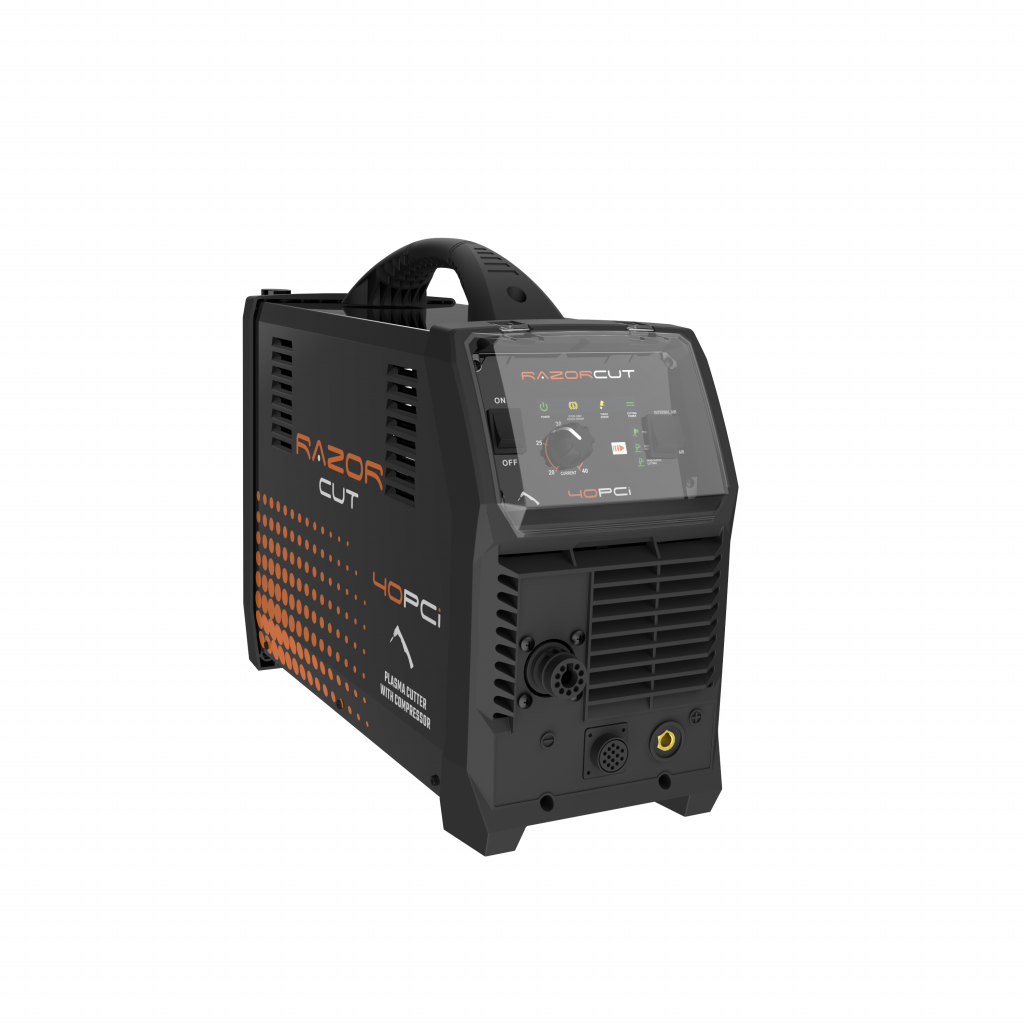

RAZORCUT 40PCI Plasma Cutter

AUTHORIZED RETAILER

Description

The RAZOR™ CUT 40PCI is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. With dual voltage, this machine is made for the workshop and worksite.

The RAZOR™ CUT 40PCI boasts some serious cutting power with 3/8″ clean-cut and 1/2″ severance on the built-in air compressor, and 5/8″ clean-cut and 13/16″ severance on an external compressor.

Specifications:

• Power Supply115/230V
• Duty Cycle @ 40°c25% @ 40A
• Rated Power (KVA)10.0
• imax (A)34.5A / 115V - 22.6A / 230V
• ieff (A)20.4A 115V / 16A 230V
• Output Current Range (A) Plasma20 - 40
• Rated Output Voltage (V)96 V
• Insulation ClassH
• Protection ClassIP23
• Plasma Arc StartingPilot Arc
• Air Flow Pressure75 PSI
• Air Flow Rate cfm4.25
• Cutting Thickness - Clean (in)Internal Air 3/8" - External Air 5/8" 230V
• Cutting Thickness - Severance (in)Internal Air 1/2" - External Air 13/16" 230V
• Dimensions (in)24" x 8.5" x 16.5"
• Weight (Lbs)40
• Certification ApprovalCSA/CAN

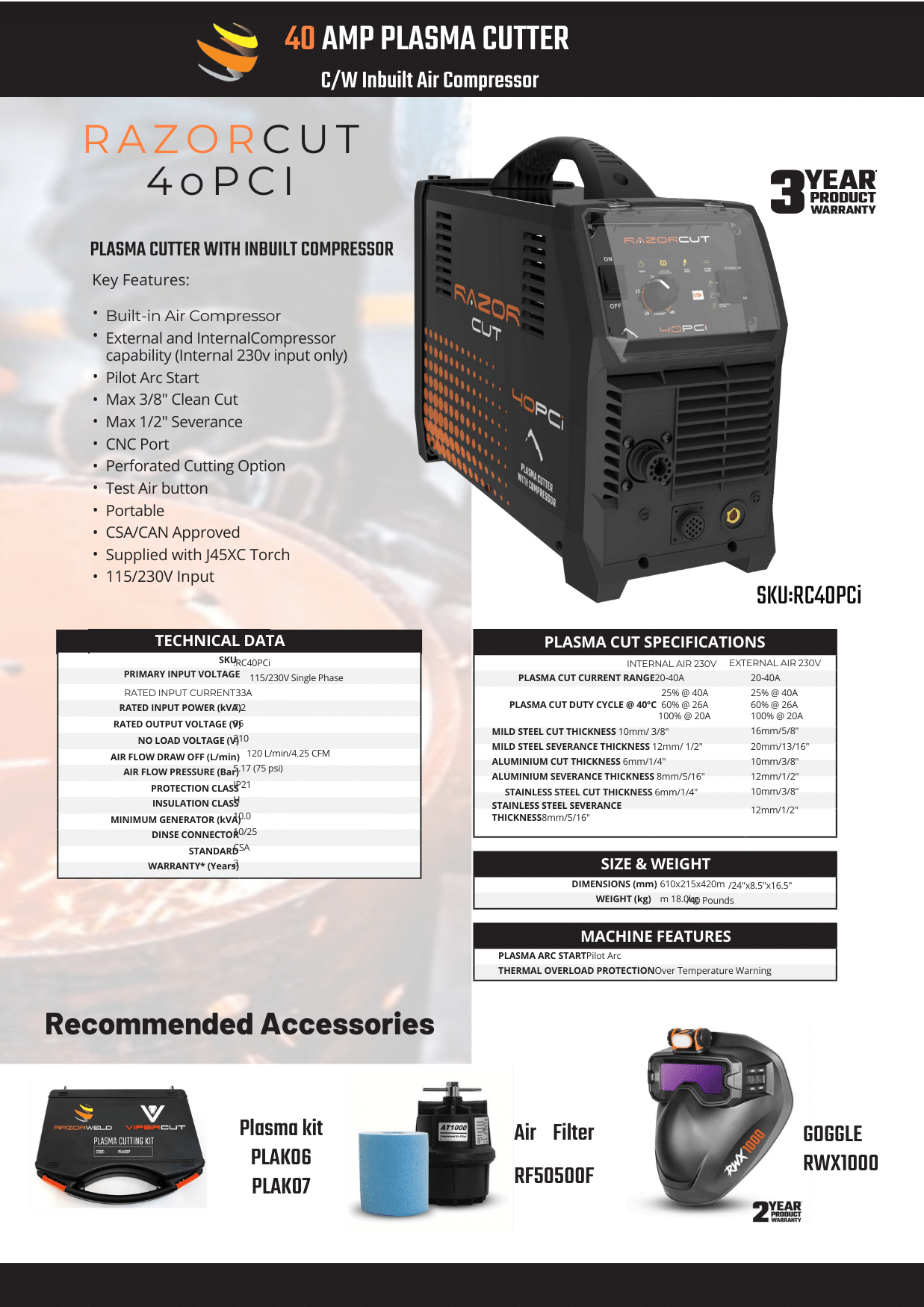

        View the spec sheet for this item
