Description

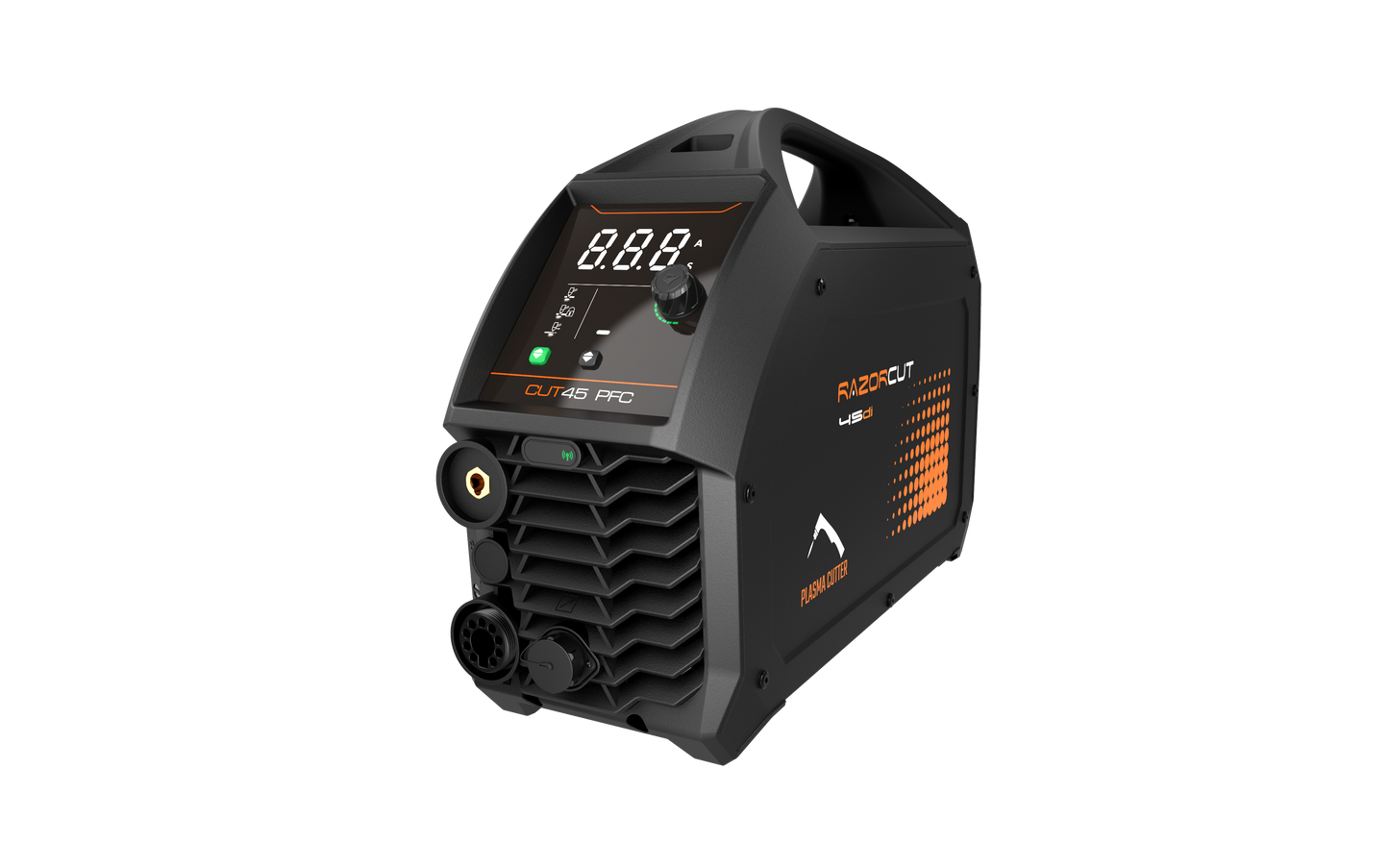

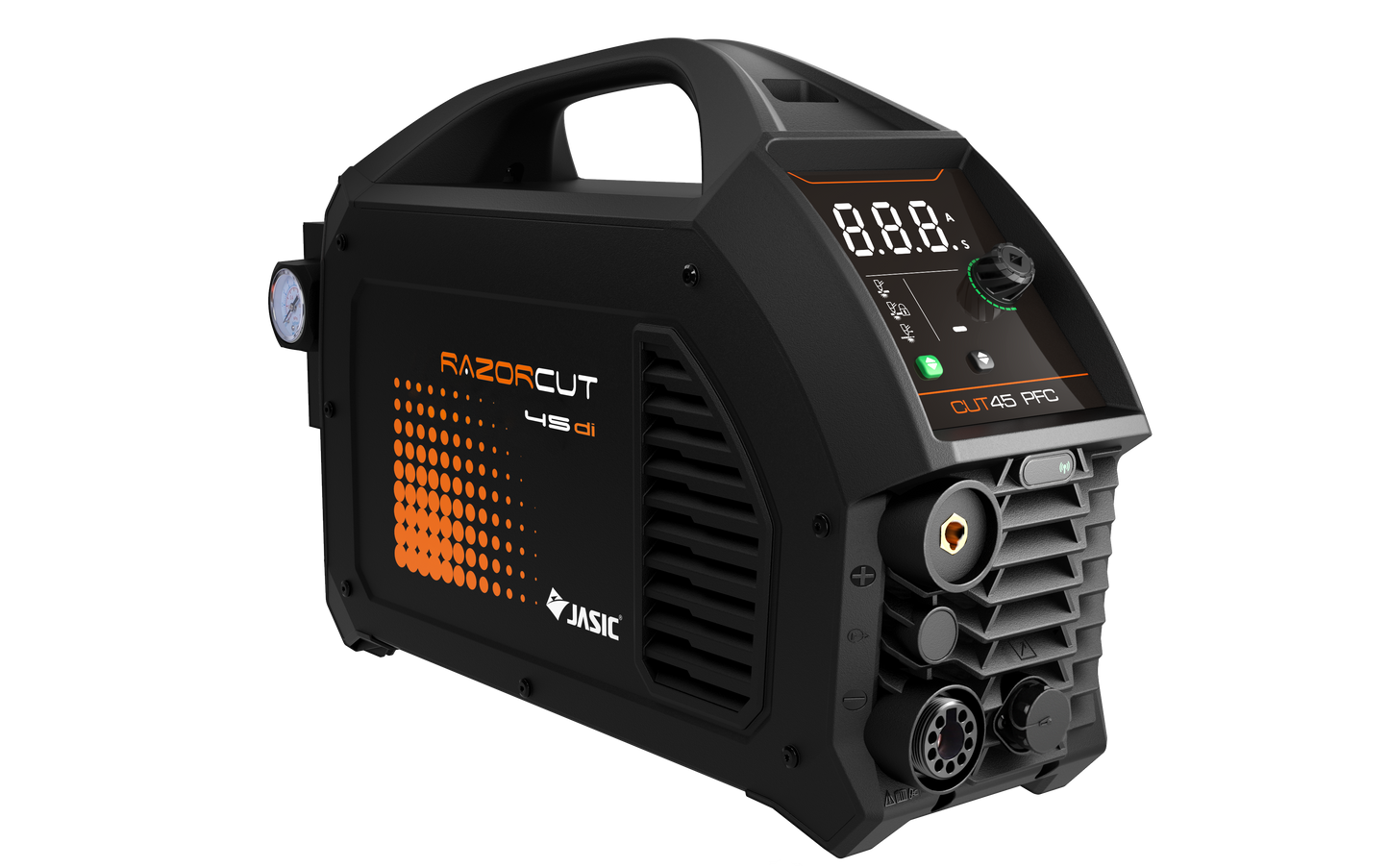

The RAZOR CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with dual input power, a sleek digital display and cutting-edge safety features, the RAZOR CUT45 machine is made for the workshop and worksite.

Features

• Rugged, robust, and industrial look with ergonomic design
• ClearVision Technology
• Adaptable wide voltage range
• Welding engineer mode
• SurePlasma technology for consistent arc Ignition performance with different torch lengths
• Mash cutting, 2T/4T, non-HF arc ignition, and pilot arc
• Gas check, post flow time setting, cutting torch length setting
• Power factor correction (PFC), generator-friendly
• Quick factory reset; auto sleep mode
• ABAP: Active Balancing Air Passage
• On-demand fan
• Key power electronic component protection
• Overcurrent and heat protection

Specifications

• Power Supply115/230V
• Duty Cycle @ 40°c25% @ 45A
• Rated Power (KVA)5.3 - (A)28.5A / 115V - 23A / 230V ieff (A)19.5A / 115V - 11.5A / 230V
• Output Current Range - Plasma 20 - 45 (AMP)
• Rated Output Voltage (V)98 V
• Insulation Class H
• Protection Class IP21S
• Plasma Arc Starting Pilot Arc Air Flow Pressure 75-85 PSI Air Flow Rate cfm2.3 - 2.65 Cutting Thickness - Clean (in)1/4" @115V 1/2" @230V
• Cutting Thickness - Severance (in)3/8" @115V 1" @230V
• Dimensions L x W X H (in) 22" x 7" x 14"
• Weight (Lbs)22
• Certification Approval CSA/CAN
