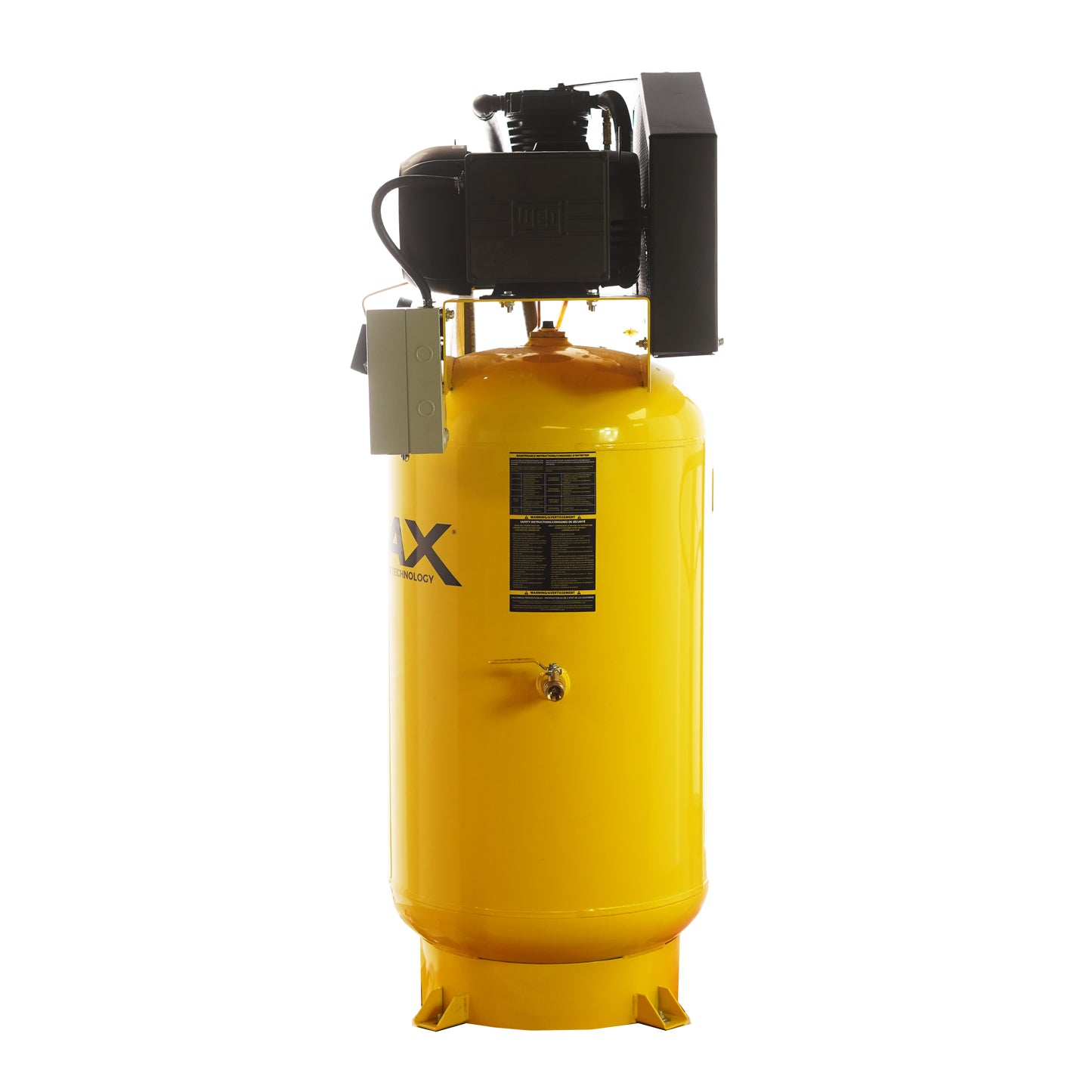

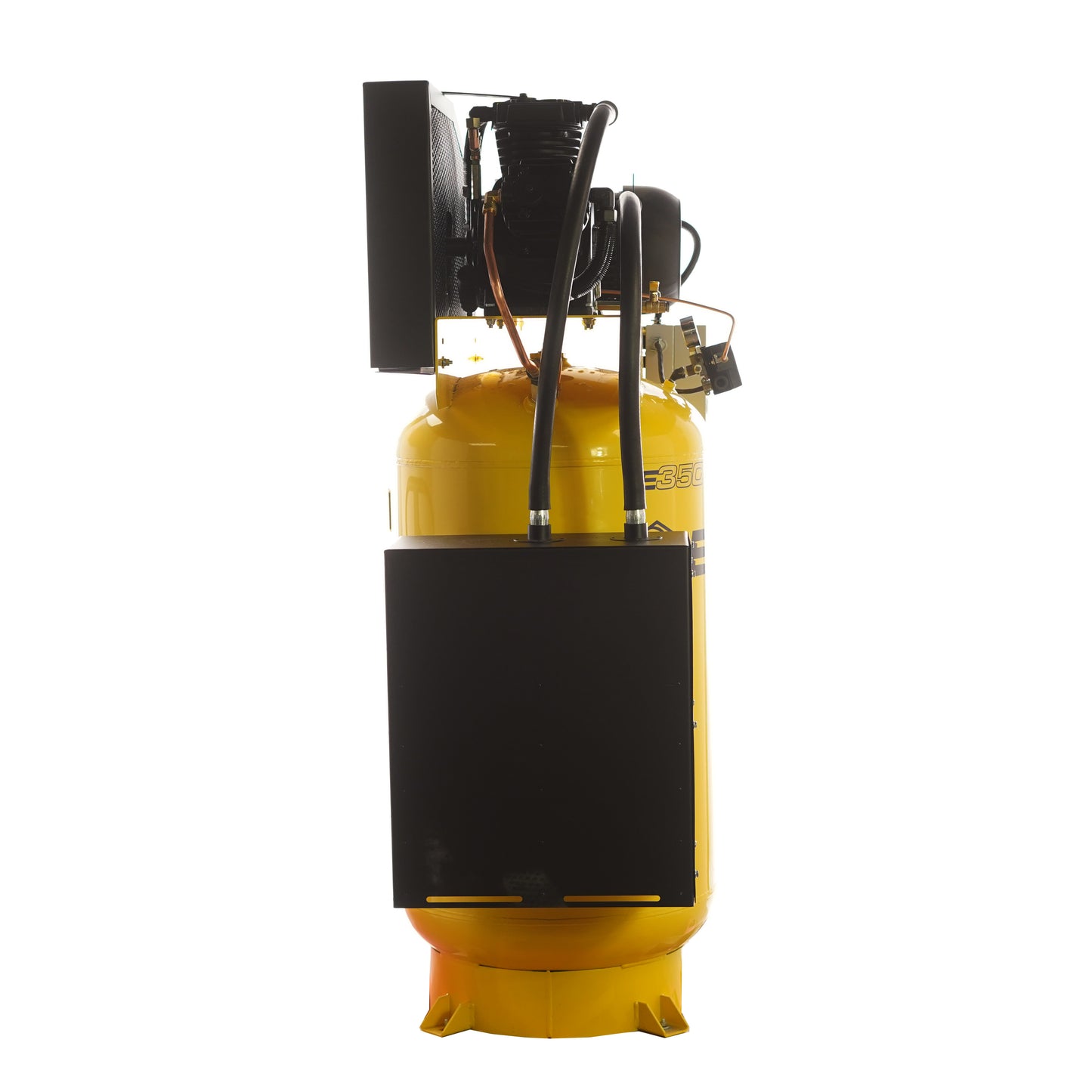

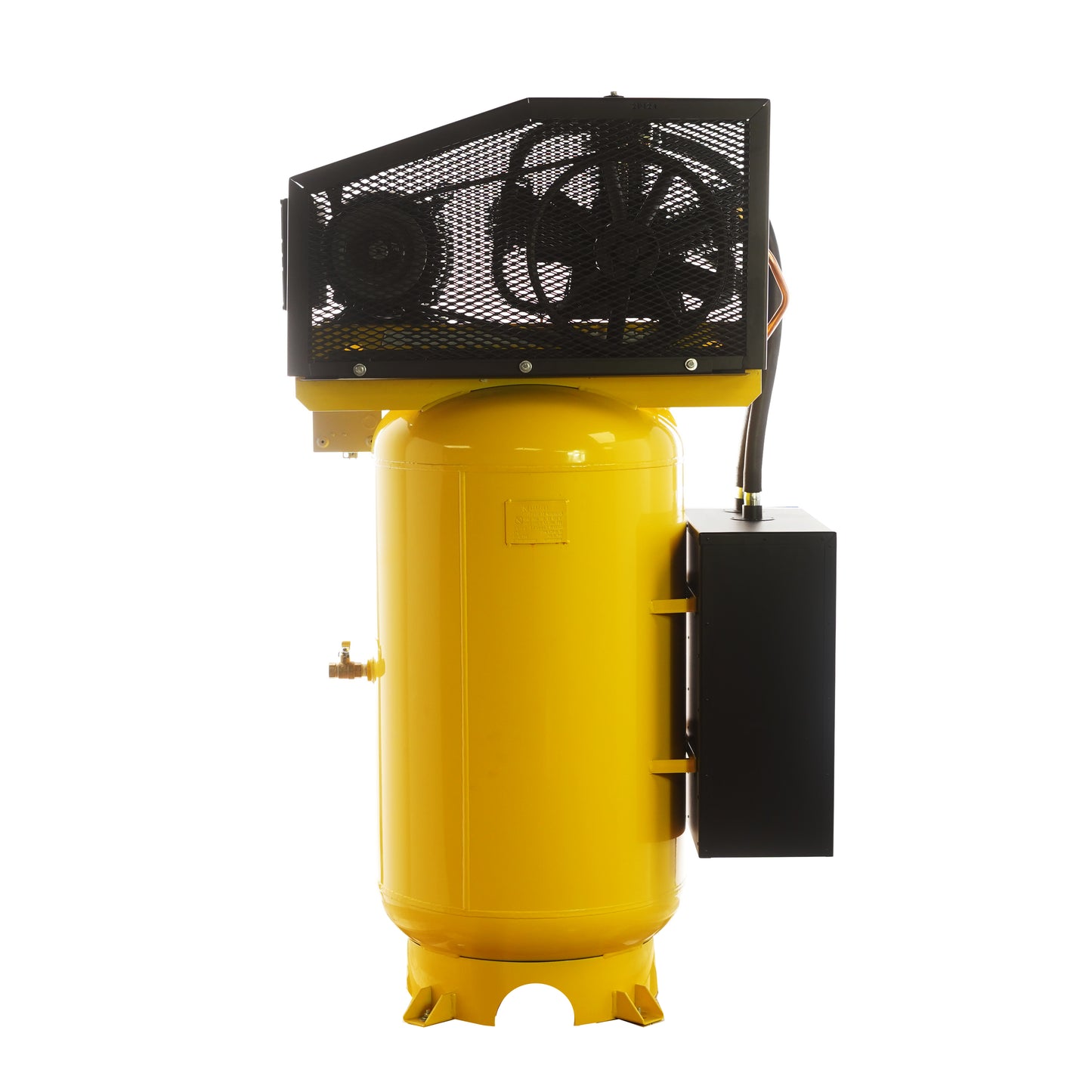

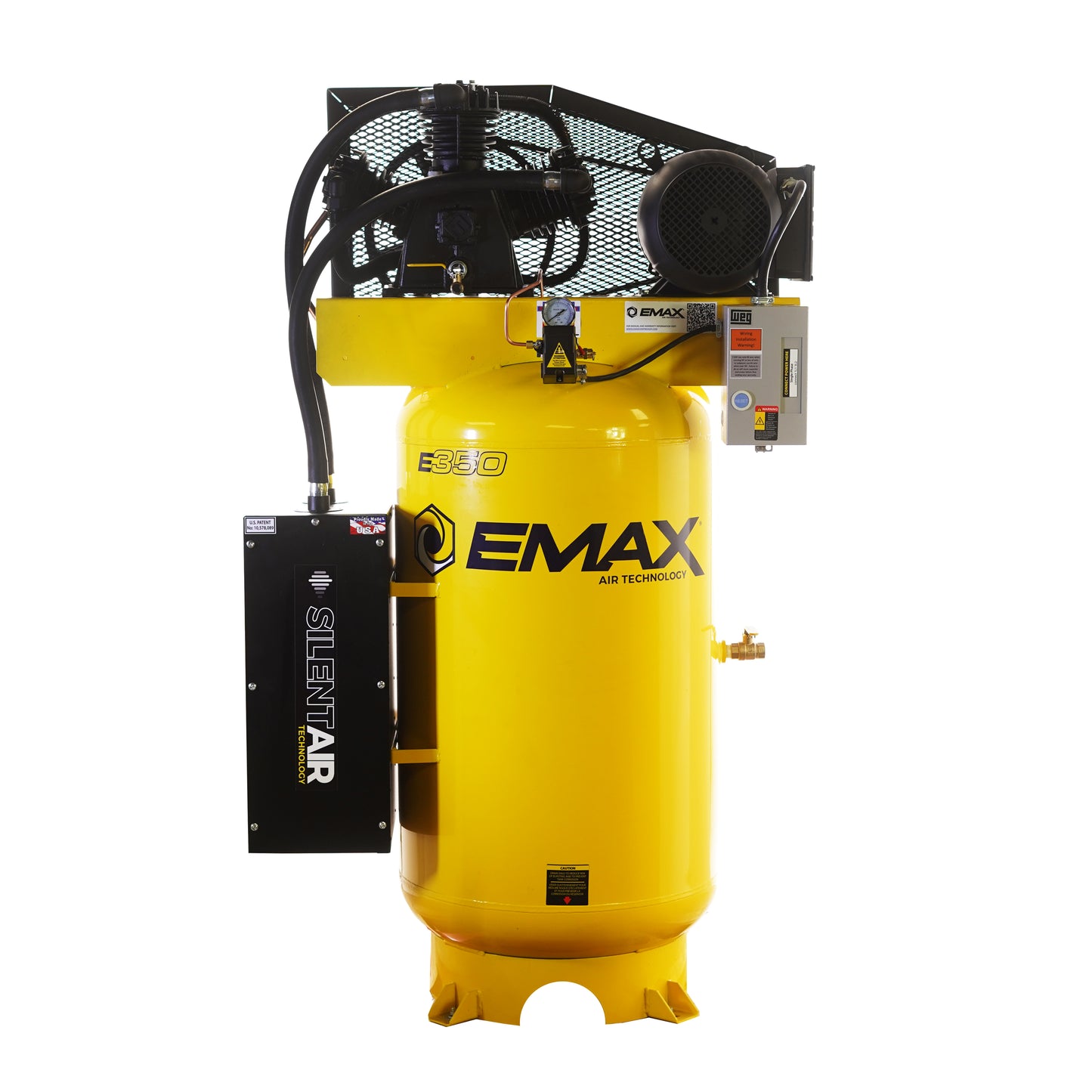

80 Gal. 7.5 HP 3-Cylinder 1-Phase 175 PSI Silent Air Electric Air Compressor with Isolator Pads and Auto Drain
EMAX
- Regular price
- Price: $3,069.39
- Regular price
- List Price: $3,199.00
- Sale price
- Price: $3,069.39
- Unit price
- per
SKU:
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION
Description
The EMAX Silent Air Series 7.5 HP 80 Gal. 2-stage, single-phase air compressor is designed for up to 60,000 hours of use with proper maintenance. This EMAX air compressor is equipped with an all-cast iron splash lubricated pump producing 25.6 CFM at 100 PSI. This unit features our patented Whisper100 silent air system already installed. The Whisper100 dissipates compressor intake noise by channeling the intake air through a series of baffle plates.

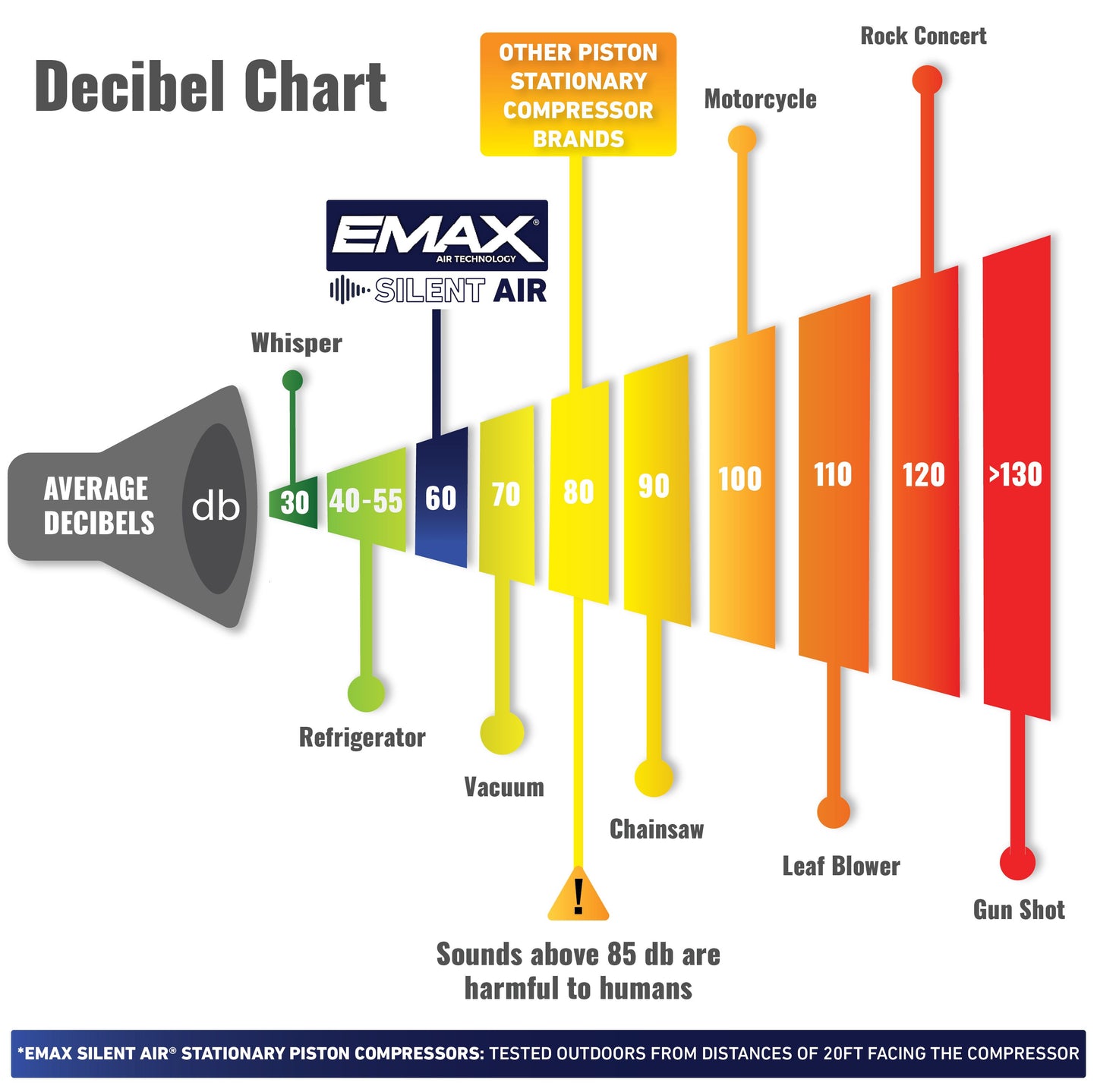

This low-profile system adds 4-levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. It also features an industrial grade 1750 RPM electric motor, magnetic starter, automatic tank drain, 80 Gal. powder coated ASME tank with 1/4 in. mounting pads, OSHA approved 13 G steel belt guard, 3/4 in. air outlet, all back by the best warranty around. EMAX air compressors are built and tested in Ohio with reliability and durability in mind.
Highlights

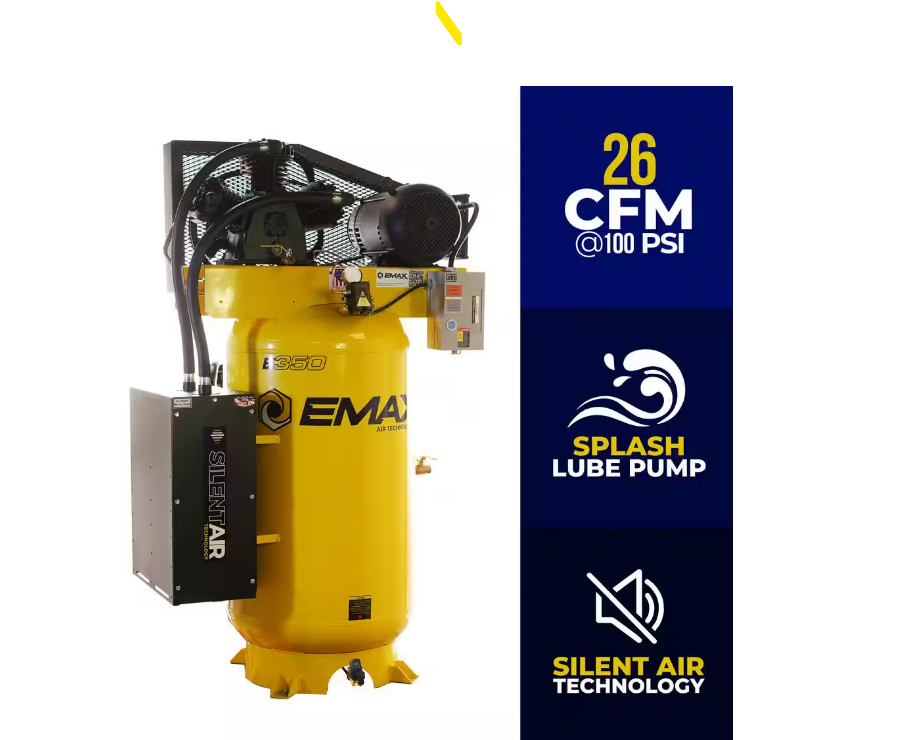

- 25.6 CFM at 100 PSI
- 24.4 CFM at 150 PSI
- 2 stage splash lubricated pump
- Automatic tank drain
- 1/4 in. mounting pads
Specifications
|
Air Delivery SCFM @ 40PSI |
27.28 |
Air Delivery SCFM @ 90PSI |
25.68 |
|---|---|---|---|
|
Amperage (A) |
32 A |
Application Use |
Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Cutting, Drilling, Finish Nailing, Framing Nailing, Grinding, HVLP Painting, Hobby Nailing, Hobby Painting, Inflation, Roof Nailing, Sanding, Spraying, Stapling, Surface Prep, Wrenching |
|
Battery Amp Hours |
No Battery |
Charger Included |
Charger Not Included |
|
Compressor Tank Capacity (gal.) |
80 gal |
Compressor Type |
Industrial |
|
Compressor Volume Rating |
Not Measured |
Compressor/Air Tool Features |
Tank Pressure Gauge |
|
Condition |
New |
Decibel Rating (Outdoor) |
Not Measured |
|
Horsepower (hp) |
7.5 hp |
Included |
No additional components or accessories are included |
|
Lubrication Type |
Oil |
Maximum Pressure (PSI) |
175 PSI |
|
Number of Total Batteries Included |
0 |
Phase Type |
1 Phase |
|
Portable |
No |
Power Source |
Electric |
|
Power Type |
Corded Electric |
Product Weight (lb.) |
686 lb |
|
Reconditioned |
No |
Returnable |
30-Day |
|
Stage Count |
Two Stage |
Tank Material |
Steel |
|
Tank Style |
Vertical |
Tools Product Type |
Air Compressor |
|
Voltage (V) |
230 V |
Voltage (v) |
230v |
Dimensions
|
Product Depth (in.) |
41 in |
Product Height (in.) |
70 in |
|---|---|---|---|
|
Product Width (in.) |
24.5 in |
