Description

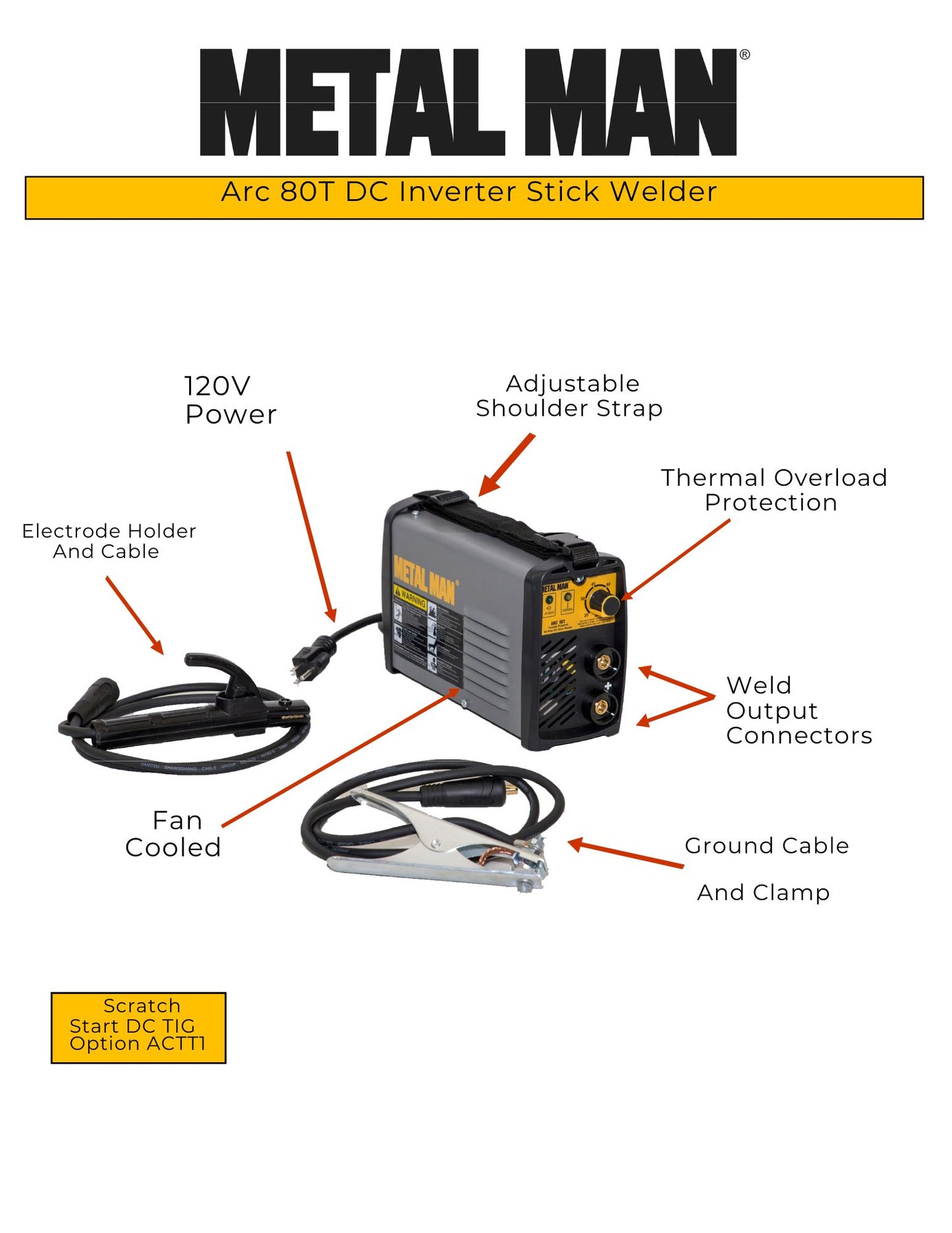

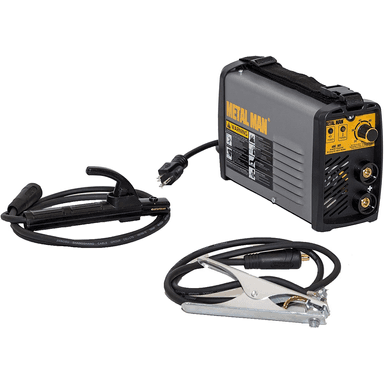

The Metal Man Arc 80T is a DC-only inverter stick welder with an exceptionally smooth stick welding performance in an extremely small package. It is intended for
use for welding steel, stainless steel, cast iron, and
hard surfacing, using electrodes from 1/16 inch to 3/32
inch.
The Arc 80T is super portable allowing the operator the
flexibility to use this welder for mobile and outdoor applications. This unit is equipped with a cooling fan and
thermal overload protection. Quick connect weld cable
connections make set-up and tear-down quick and
easy.

VIDEO

SPEC SHEET

Specifications

• Welds up to 1/8" in a single pass
• Advanced Inverter Technology, Dial Adjustable Amperage Control
• Easy twist-lock connections & polarity control on the front panel.
• Shoulder Strap for extreme portability
• Used for TIG and Stick Welding
• Power Supply: 120V, 20A, 60Hz, Single-Phase
• No-Load Voltage: 70 Volts DC
• Duty Cycle: 40% at 75 Amps
• Weight (lbs): 10
• Width (in): 8
• Length (in): 13
• Height (in): 9.75
