Description

The MIG function allows you to weld with both Gas Shielded and Gasless wire applications. Easy step-less adjustment of voltage and wire feed makes for easy setting of welding parameters giving excellent welding results. Wire Inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld.

STICK welding capability delivers easy electrode welding with high-quality results, including cast Iron and stainless. Being 230/110v single phase gives great versatility. Ideal for DIY and home workshop. Designed and built to our specifications.

Specifications

• Primary Input Voltage230V/115V 1-Phase
• Rated Input Power KVA230V 16.7 Amps/ 115V 15 Amps
• ieff AMPS9.5 Amps MIG
• Rated Output30A/15.5V - 180A/23.0V
• Welding Current Range MIG30 - 180 Amps
• Welding Current Range Stick10-160 Amps
• No Load Voltage17 - 52 Volts
• Duty Cycle 104 Deg F - MIG30% @ 180Amps
• Protection ClassIP21S
• Insulation class F
• Dimensions (in) LxWxH19 x 8 x 12.5
• Weight (lbs)13.5

SPEC SHEET PDF

Key Features

• IGBT inverter technology
• 10 Amp Plug
• VRD (Stick Mode Only)
• MIG/MAG with Gas and Gasless wire function

1. Soft Start
2. Adjustable Burn Back
3. Wire Inch

• Stick Function

1. Hot start (improves electrode starting)
2. Arc Force (prevents electrode extinguishing)
3. Excellent arc stability with all electrodes

• Internal wire feeder up to .035 in (0.9mm) solid wire
• Euro style Mig torch connection
• Tolerant to variable power supply

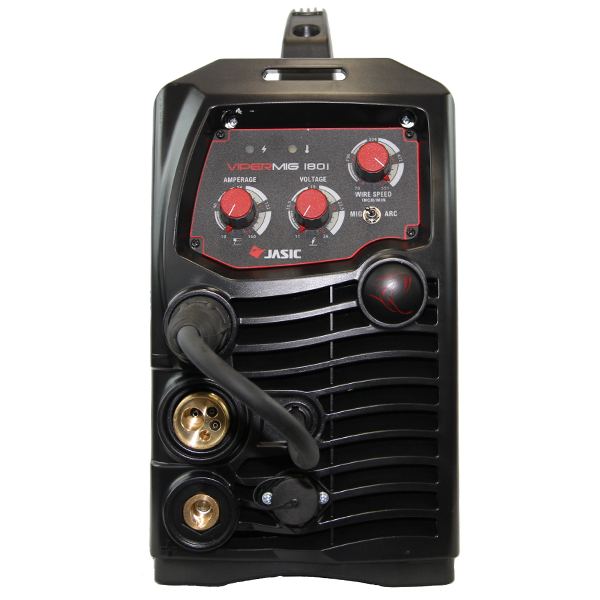

• Step-less voltage and wire feed control

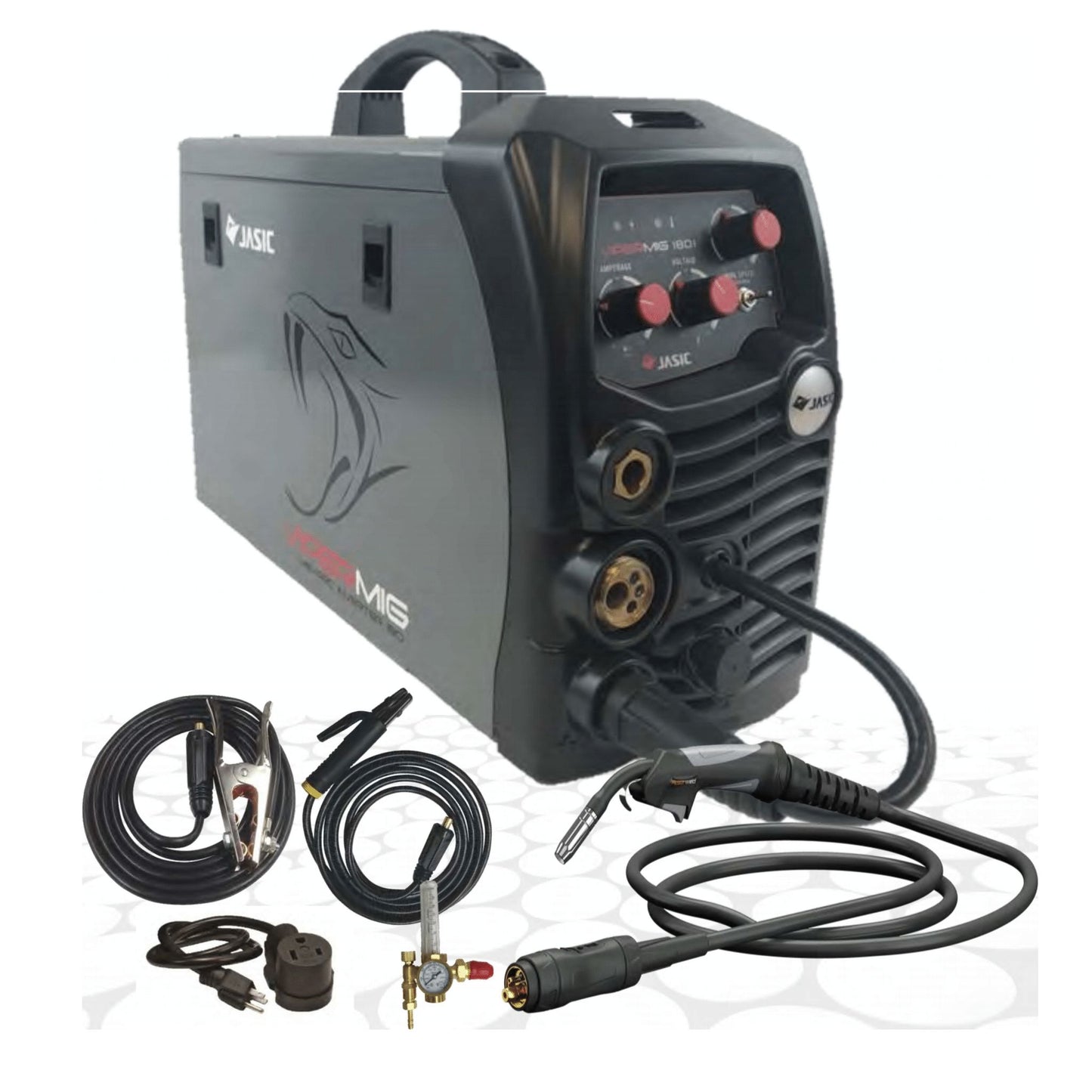

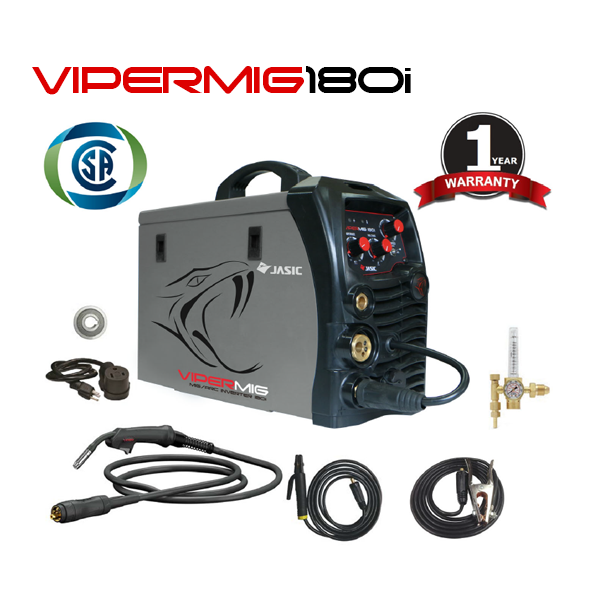

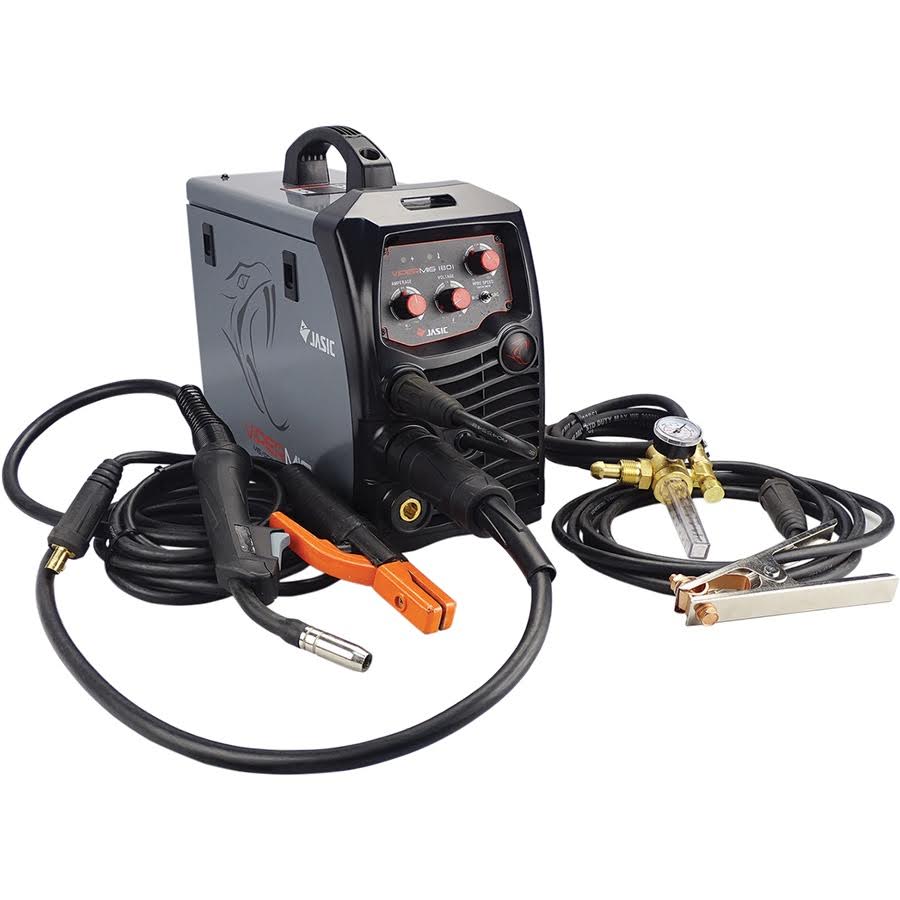

Package Contents

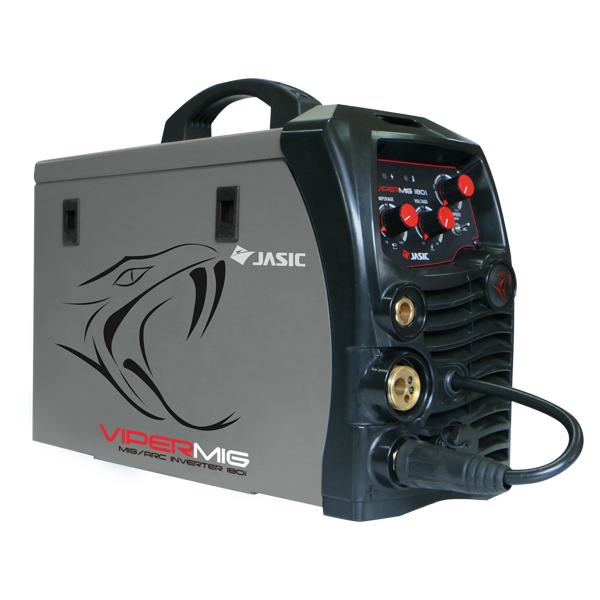

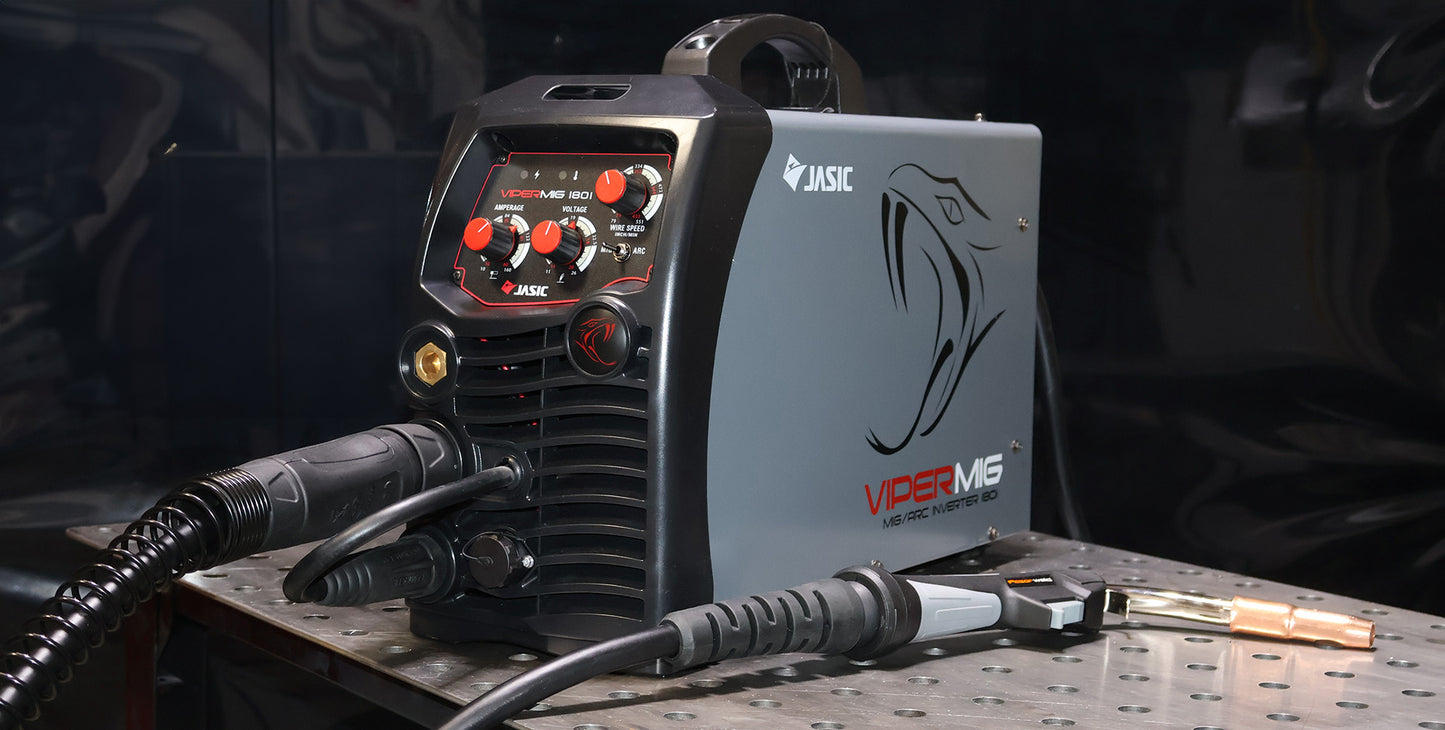

1 x Vipermig180i Inverter MIG/STICK Power Source

1 x SB15 10ft Sure Grip MIG Torch

1 x  Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp

1 x Razorflow Flow Regulator

1 x 230/115V Power Adapter

1 x Gas Hose Complete with fittings

1 x Instruction Manual

Optional:

15ft Tweco 2 Style MIG Torch

VIPER/MIG SPEC_SHEET
