Description:

• 60" x 26.5" x 13.18"
• 1.18" firewall
• 16" dia. flat free tires
• Large, open tool tray
• Reinforced lifting eye and dual cylinder arms offer some of the best safety in its class!
• Safely move compressed gas cylinders around your facility transporting oxygen cylinder together with a fuel cylinder at the same time.
• Supports 244-330 cu ft (9-1/4") oxygen tank, supports 210-420 cu ft (13-1/2") acetylene tank
• Equipped with a 13 x 25" (33 x 63 cm) base plate and a large, open tool tray standard equipment.

Features:

•  Full range, high rail with lifting eye
• Large, open tool tray
• Reinforced lifting eye and dual cylinder arms offer some of the best safety in its class!
• Safely move compressed gas cylinders around your facility transporting oxygen cylinder together with a fuel cylinder at the same time.
• The lifting eye complies with ASME B30.20, AWS D14.1, and AISC codes and the Fire-rated wall complies with OSHA 1926.350 and OSHA 1910.253

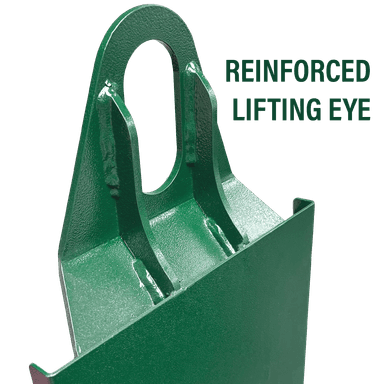

• Reinforced lifting eye offers added safety and security over leading competitors

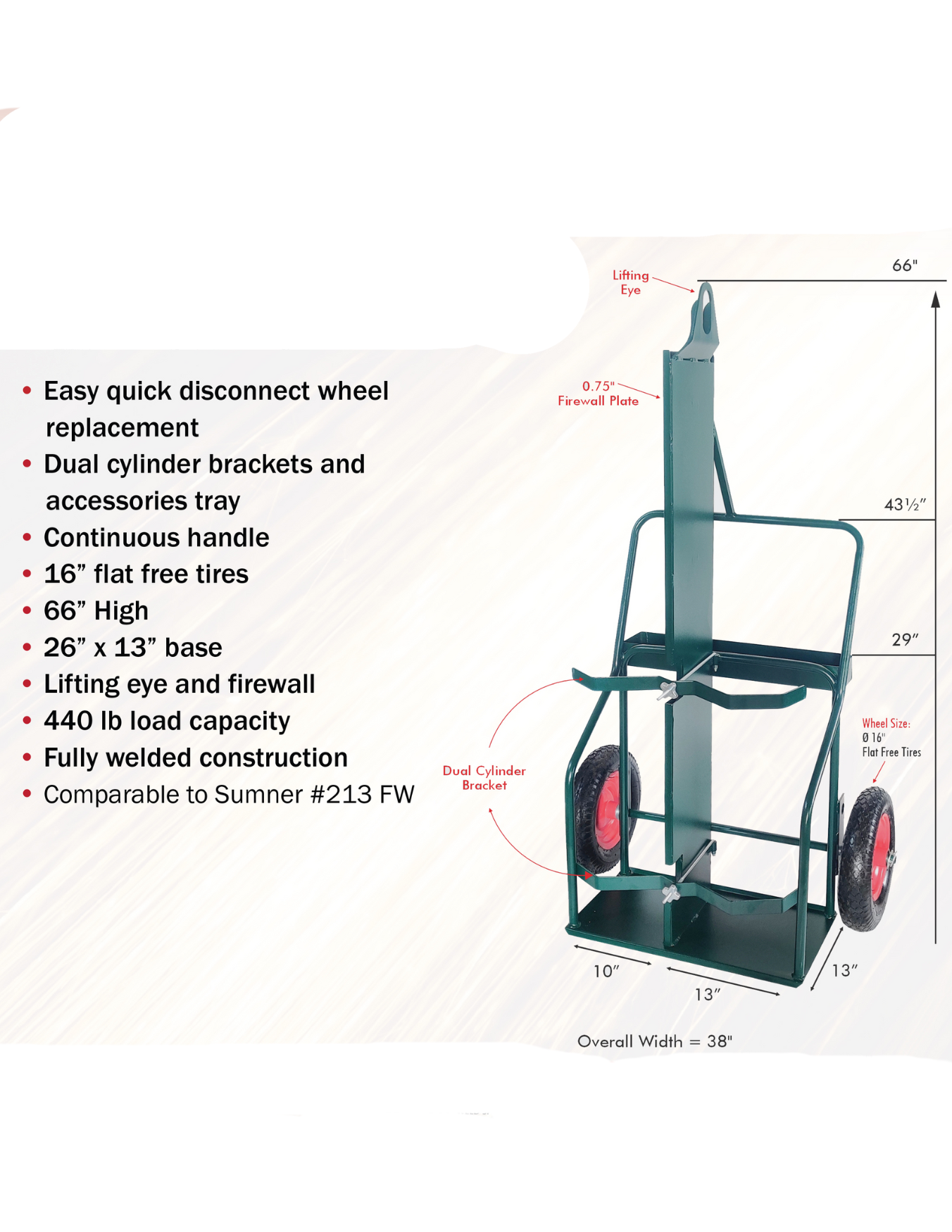

 Technical Specifications:

•  Material: Powder Coated Iron
• Color: Green
• Number of Cylinders per Unit: 2
• Handle Type: Curved
• Dimensions: 36.8” W x 66.5” H x 22.1” D
• Firewall: 60” x 1.18”
• Base Plate: 26.5” x 13.18” (63 cm x 33 cm)
• Wheel Type: 16” x 4” Foam Filled Pneumatic Flat Free
• Oxygen Cylinder: Supports 244-330 ft3 (9 1/4”) tank
• Acetylene Cylinder: Supports 210-420 ft3 (13 1/2”) tank
• Packaging: Packaged Individually
• Country of Origin: India
