Description

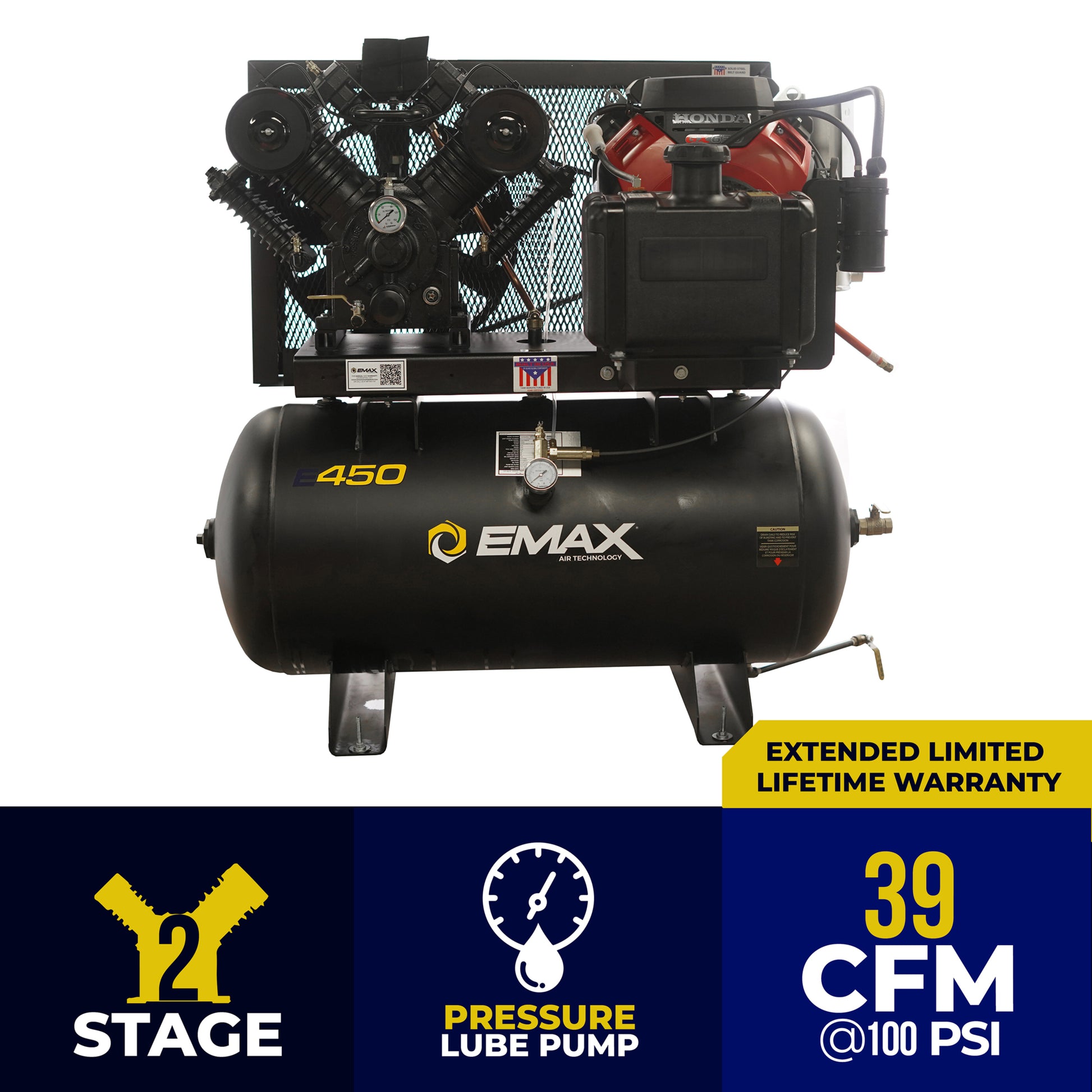

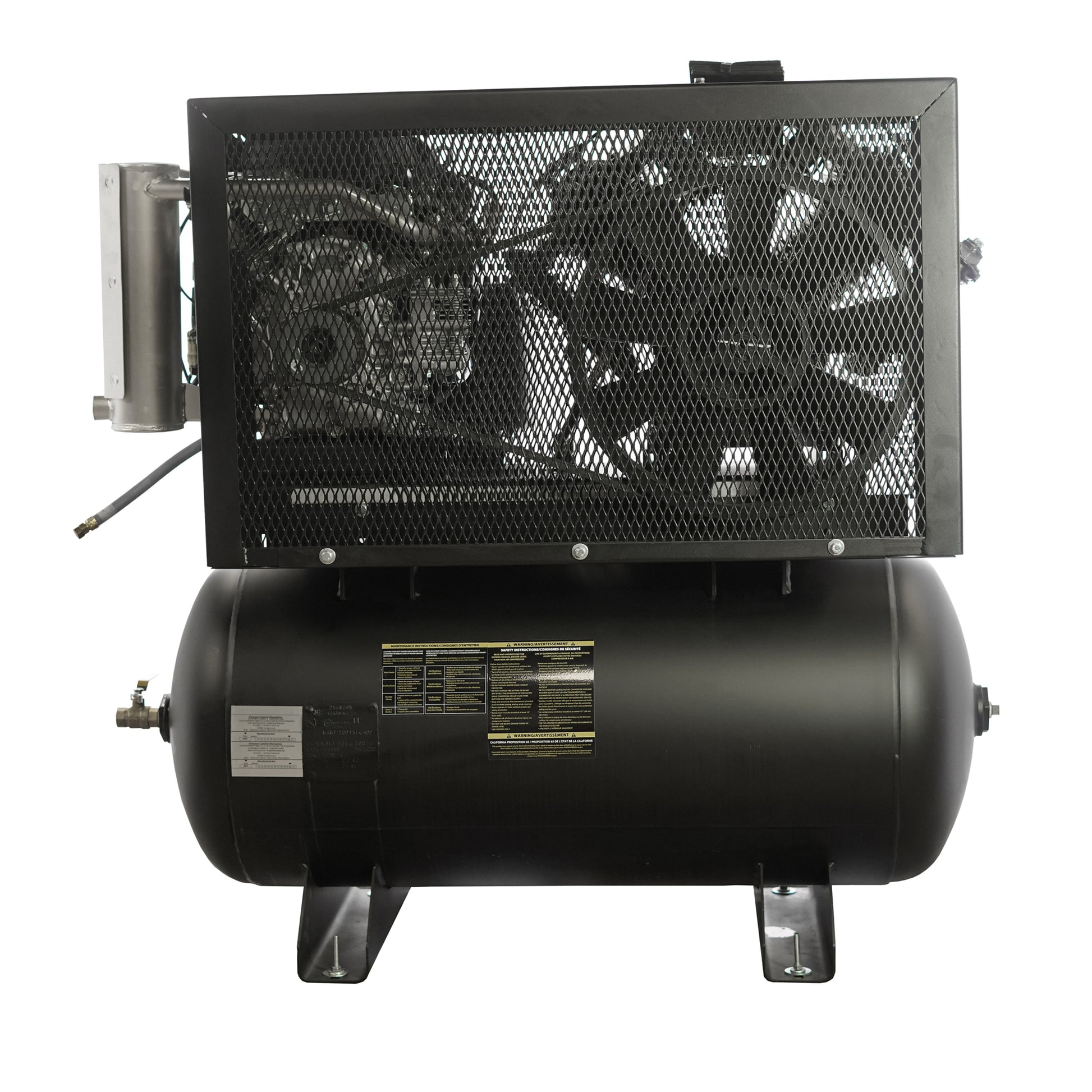

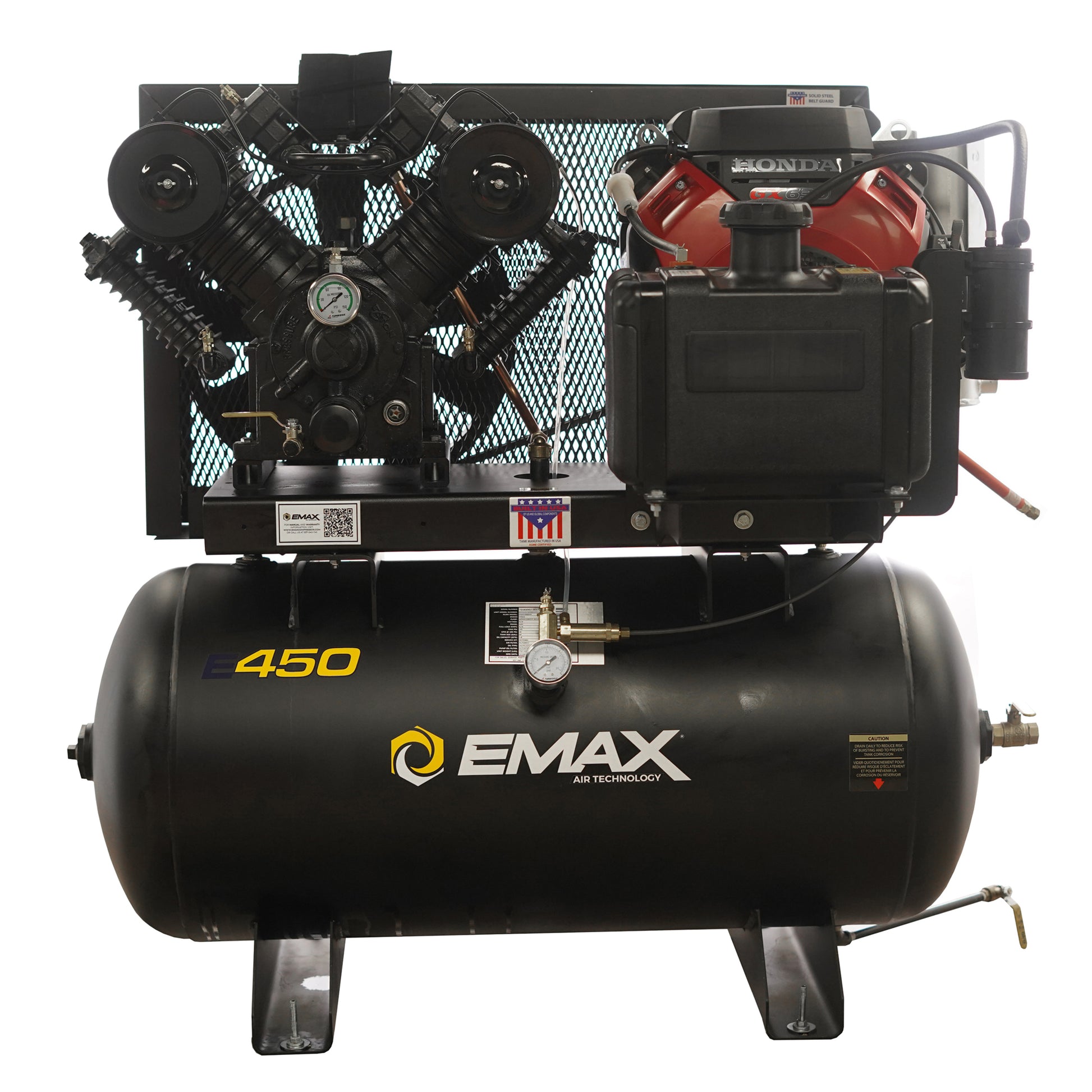

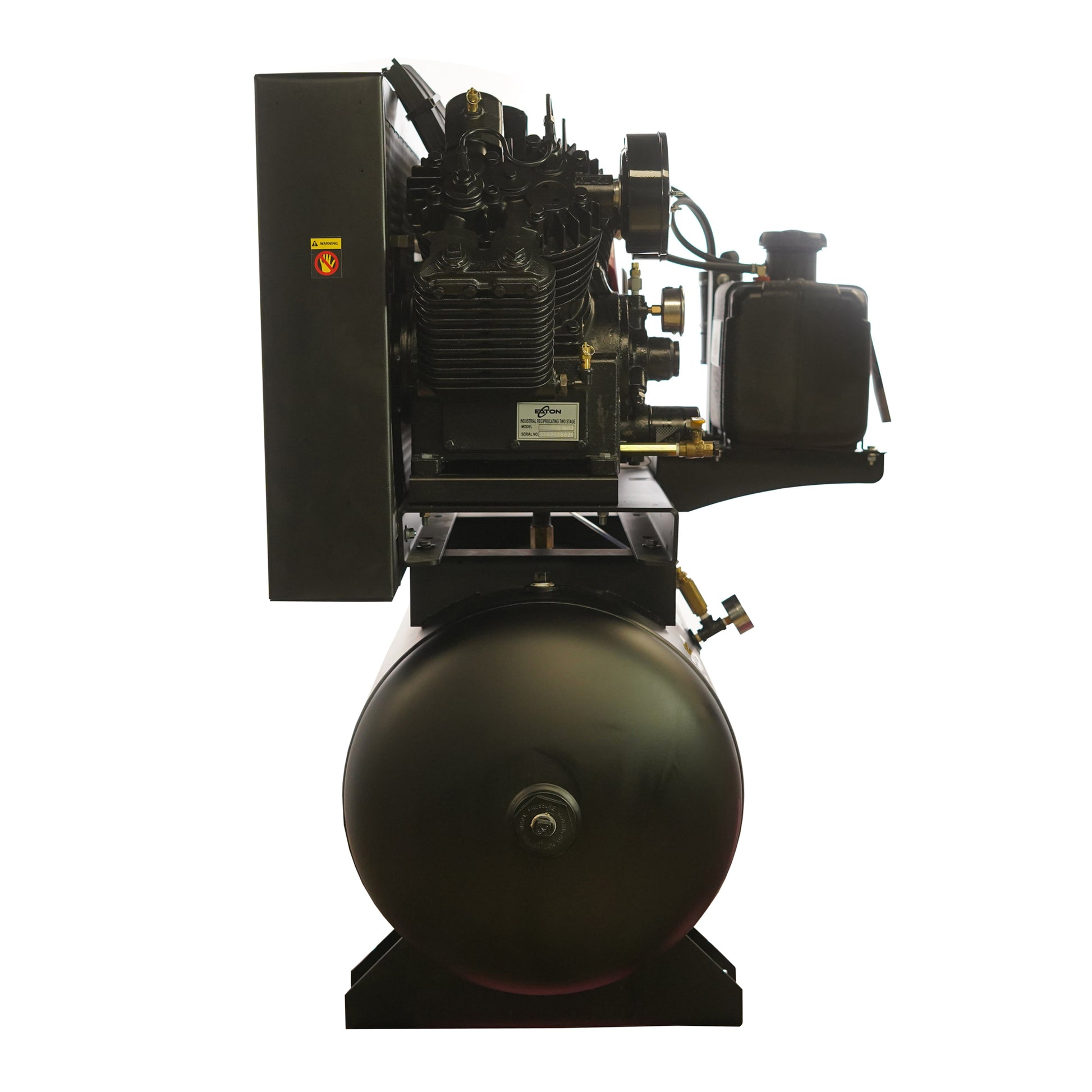

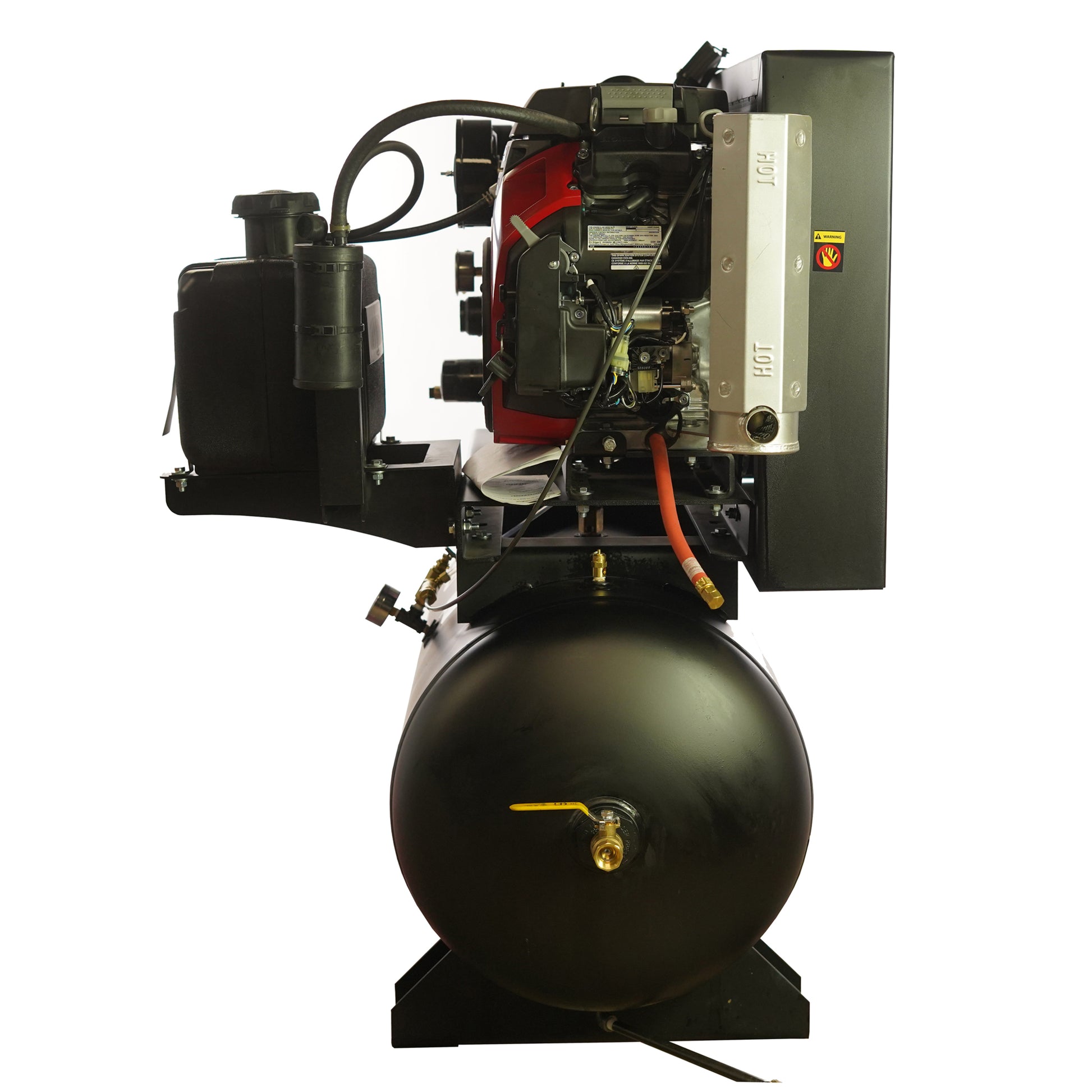

You can count on EMAX Compressors' 18 hp, 30-gallon gas-driven air compressor for all your fleet and field service applications! With 39 CFM at 100 PSI, it is up for any task. Ideal for truck bed mounting to deliver on-site air where electric service is scarce, featuring a 5-gallon EPA-approved mounted gas tank. This unit is equipped with the Honda GX630 gas-driven engine, backed by their 3-year warranty. The tank is ASME-approved and power-coated to be weather-resistant. This unit comes with one of the best warranties in the industry! 1 Year Standard Warranty, Optional 5 Year Parts Extended, 5 Year Parts + Lifetime Extended Pump with maintenance kit

Features + Benefits

• 39CFM @ 100 PSI
• 5 Gallon EPA approved Gas Tank
• Honda Gas Engine with electric Start
• Gate valve oil drain provides quick, clean oil changes
• Pressure Lubricated pump w/spin on oil filter


Key Specs

• Manufacturer's Warranty	1 year limited warranty
  Ship Weight	850.0 LB
  Horsepower	18 HP
  Air Tank Size	60 Gal
  Engine Brand	Honda
  CFM at 90 PSI	40
  Max. PSI	35
  Stage	2
  Air Outlets (qty.)	1
  Amps	12
  Duty Cycle	60 %
  Fuel Capacity	5 Gal
  Motor RPM	3,600
  Working Pressure	145 PSI
  Engine Displacement	41.97 cc
  Engine Start Type	Electric
  Motor Phase	1
  Pump Life	60,000 hr

  Attribute	Specification
  Pump Material	Cast Iron
  Pump Drive	Belt
  Air Outlet Size	3/4 in. NPT
  CFM at 40 PSI	40
  CFM at Max. PSI	35
  Noise Level	85 dB
  Oil Required	Yes
  Low Oil Shutdown	No
  Lubrication System	Pressure
  Pressure Gauge	Yes
  Electronic Drain Valve	No
  After Cooler Included	No
  Tank Fill Time	2.3 min
  Air Dryer	None
  Drain Type	Manual
  Tank Orientation	Horizontal
  Engine Model	GX630
  Product Weight	832.0000 lb
  Dimensions L x W x H (in.)	35.0 x 57.0 x 50.0 in

Warranty Options

• Manufacturer's Warranty

  1-year limited warranty
