Description:

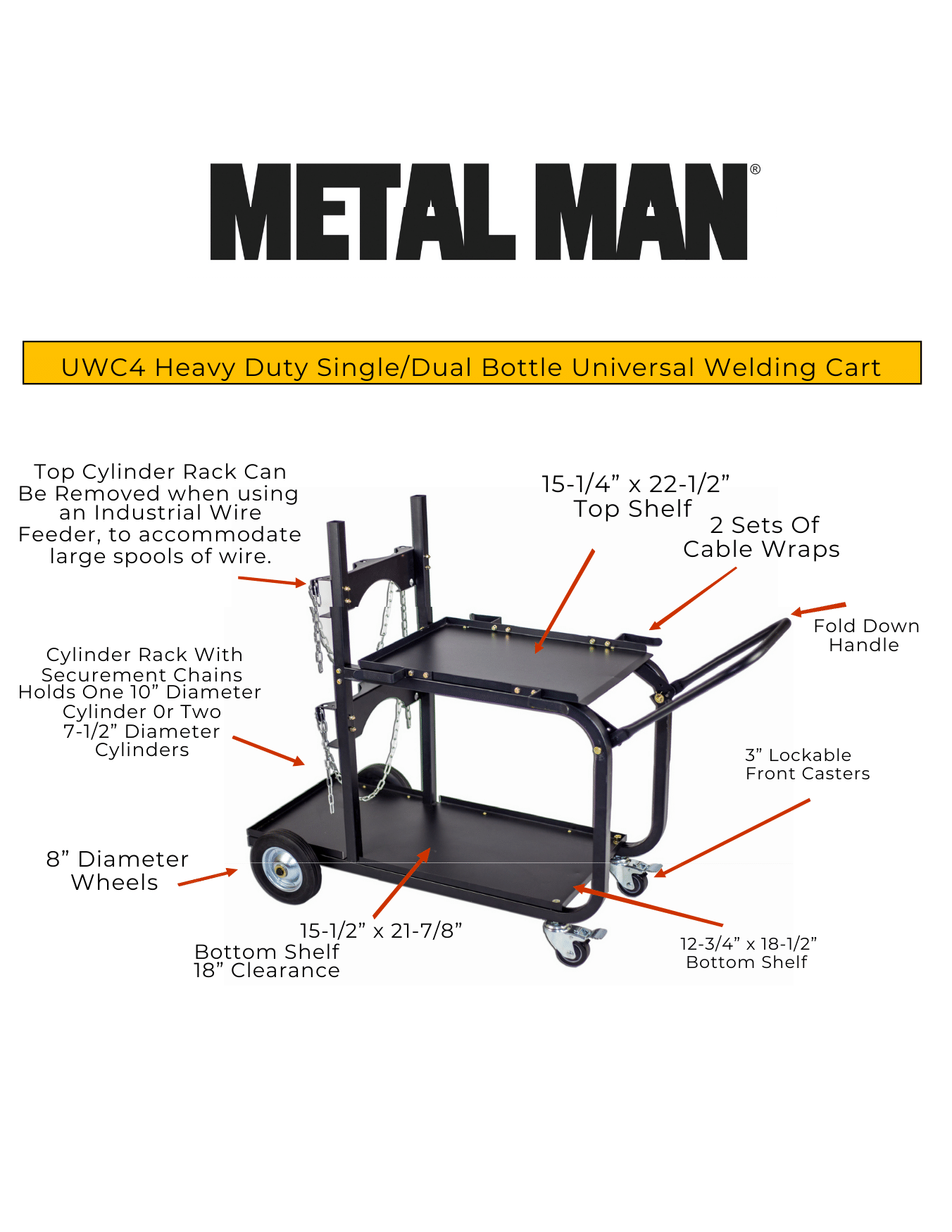

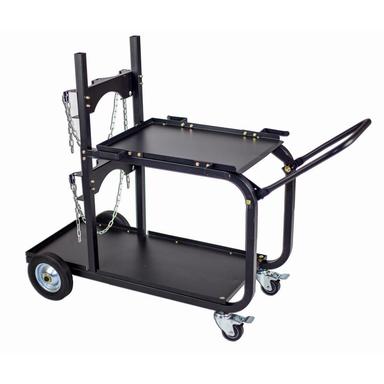

The METAL MAN Heavy Duty Single/Dual Bottle Welding Cart is designed for a variety of uses. It can be used to hold portable wire welders, plasma cutters, and TIG welders, along with the shielding gas bottle needed for that application. Its unique Cylinder rack allows you to configure it to carry one gas cylinder up to 10 inches in diameter and up to 300 cu. Ft.; or two separate bottles of gas up to 7-1/2 inches in diameter or 150 cu. Ft each. Or use this welding cart to hold two separate welders or a welder and a plasma cutter.

The third use for this Cart is as a power source and feeder cart. The bottom shelf has an 18-inch clearance, providing ample space to store a smaller inverter-based welding power source. The top shelf has ample space to fit a wire feeder. In addition, the top of the cylinder securement rack can be removed to accommodate the wire feeder spool holder and a large spool of wire.

Specifications:

• Overall Dimensions 47-1/2” x 21” x 39-3/4”
• Top Shelf Usable Space 15-1/4” x 22-1/2”
• Bottom Shelf Dimensions 12-1/2” x 18-1/2”, 18” clearance
• Weight 53-1/2 lbs. Load Capacity 400 lbs.
• Cylinder Configuration 1 Dual Cylinder, 7-1/2” Diameter
• Cylinder Configuration 2 Single Cylinder, 10-1/2 Diameter
• Shipping 40” x 23” x 5” 61 lbs.
• Ball Bearing drawer slides
• 8″ back wheels
• 18G Steel Construction, Powder Coat Finish
• Cable holders provide easy storage of welding cables.
• Lockable front casters
