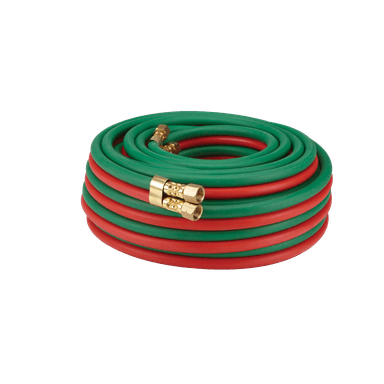

Flexible Gas Hose Grade R 1/4" X 50' Twin Hose

Features

MINIMUM- 2 UNITS

•  Premium Flexible Gas Hose
• American Quality Control
• Premium Burst Resistant Fibered Composition
• Hose Available In Custom Cut Lengths With Ends (12-1/2', 25', 50', 100', 600' Continuous)

Technical Specifications

• Hose Inner Diameter: 1/4", 3/16", 3/8"
• Maximum Operating Pressure: 1.4 MPa, 13.8 bar, 200 psi
• Minimum Bend Radius: 2-4", (50.8-101.6 mm) Application: Compressed Gas
• Media: Fuels
• Minimum Operating Temperature: -40 °F (-40 °C)
• Maximum Operating Temperature: 200 °F (93 °C)
• Length per Package: 12-1/2', 25', 50', 100', 600'
• Cover Structure: Smooth
• Cover Material: Red/Green EPDM
• Hose Inner Tube Material: Black EPDM
• Hose Reinforcement Material: Multiple textile plies
• Industry Standards: CGA E-1, ARPM IP-7
