Description:

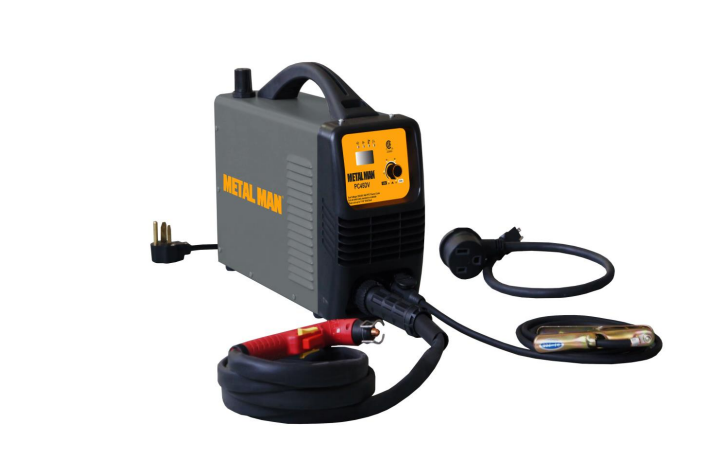

The Metal Man PC 45DV is a Dual Voltage, DC Inverter Plasma Cutter. It uses new state-of-the-art technology. The output can be adjusted from 15 to 45 Amps. This unit is designed to cut up to 11/16" steel at a travel speed of 10 inches per minute when operating on 230V AC power. Use the included adapter cord to run this unit off 120V AC power for a cutting capacity on steel of up to 1/4” at a travel speed of 10 inches per minute.

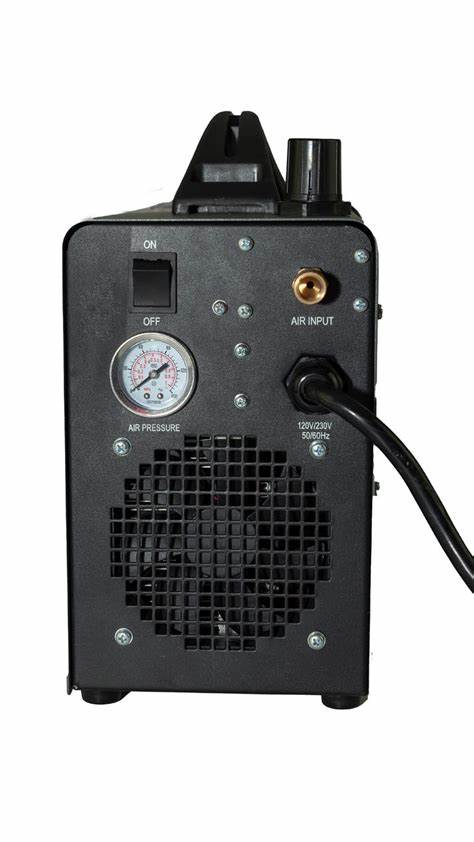

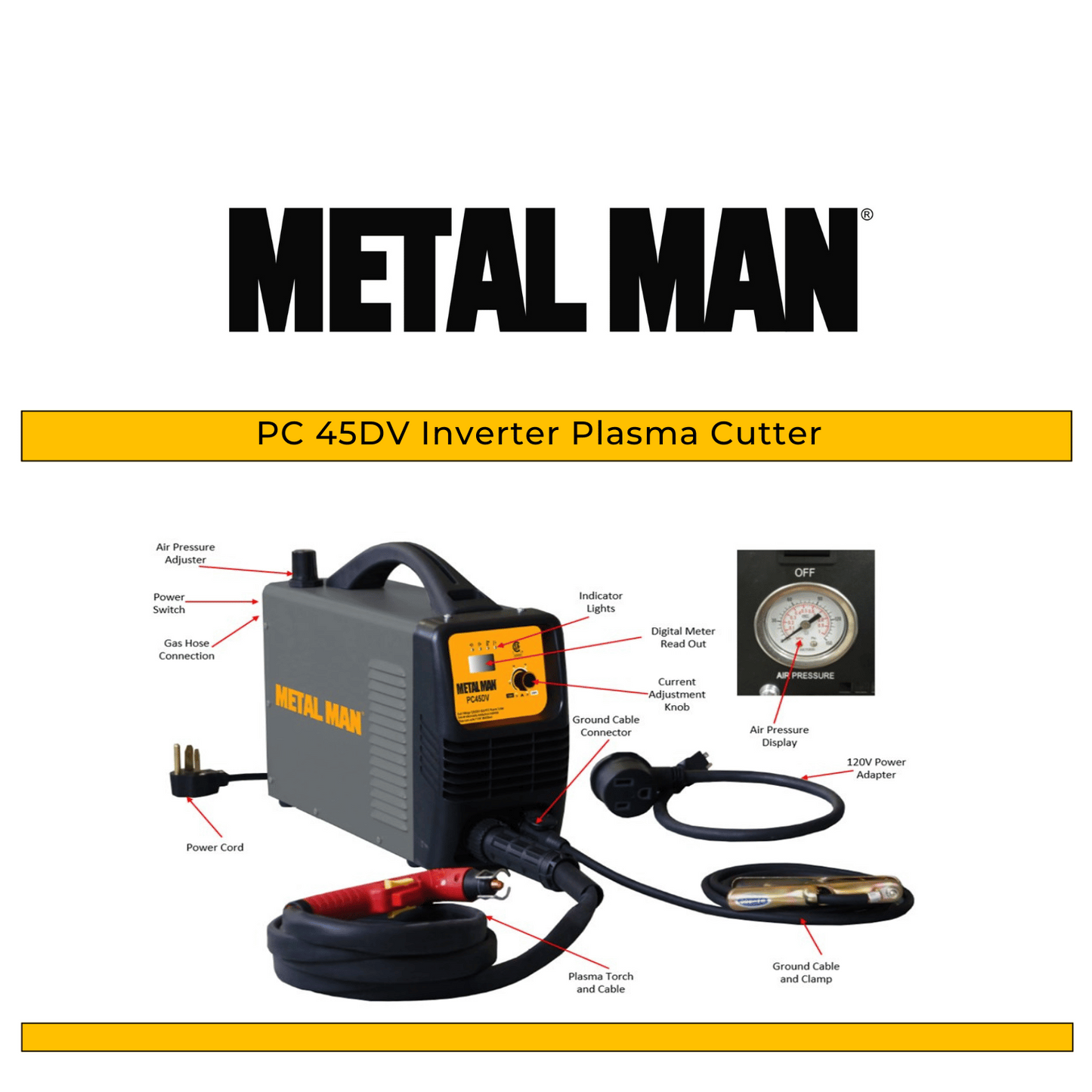

It cuts all electrically conductive materials. It cuts a narrow kerf that results in a smaller heat-affected zone for reduced warping. The Metal Man PC 45DV is lightweight (22.58 lbs.), a compact, inverter design for greater portability. It has a pilot arc for easy starts and enables the user to cut fence or expanded metal. This unit has a built-in air pressure adjustment and gauge, indicator lights for quick troubleshooting, and thermal overload protection, and now features a built-in water separator.

Order Part Number: MMPC45DV

Specifications:

• Power Supply 120V, 23A, 50/60 HZ, Single Phase 230V, 45A, 50/60 HZ, Single Phase
• No-Load Voltage 310 Volts DC
• Output Range - MIG 120V, 15A-23A 230V, 15A-45A
• Duty Cycle 120V, 35% @ 23A 230V, 50% @ 45A
• Compressed Air Required 4.5 CFM @ 60 PSI - DO NOT SUPPLY MORE THAN 100 PSI
• Dimensions 19.69” X 10.04” X 14.5”
• Weight 22-1/2 lb.
• Shipping 23.62” X 14” X 14.75” 27 lbs.
• UPC 857448005865

Features

• Cuts all electrically conductive materials.

• Cuts a narrow kerf resulting in a small heat-affected area for reduced warping

• Pilot arc feature for cutting expanded metal and fencing efficiently.

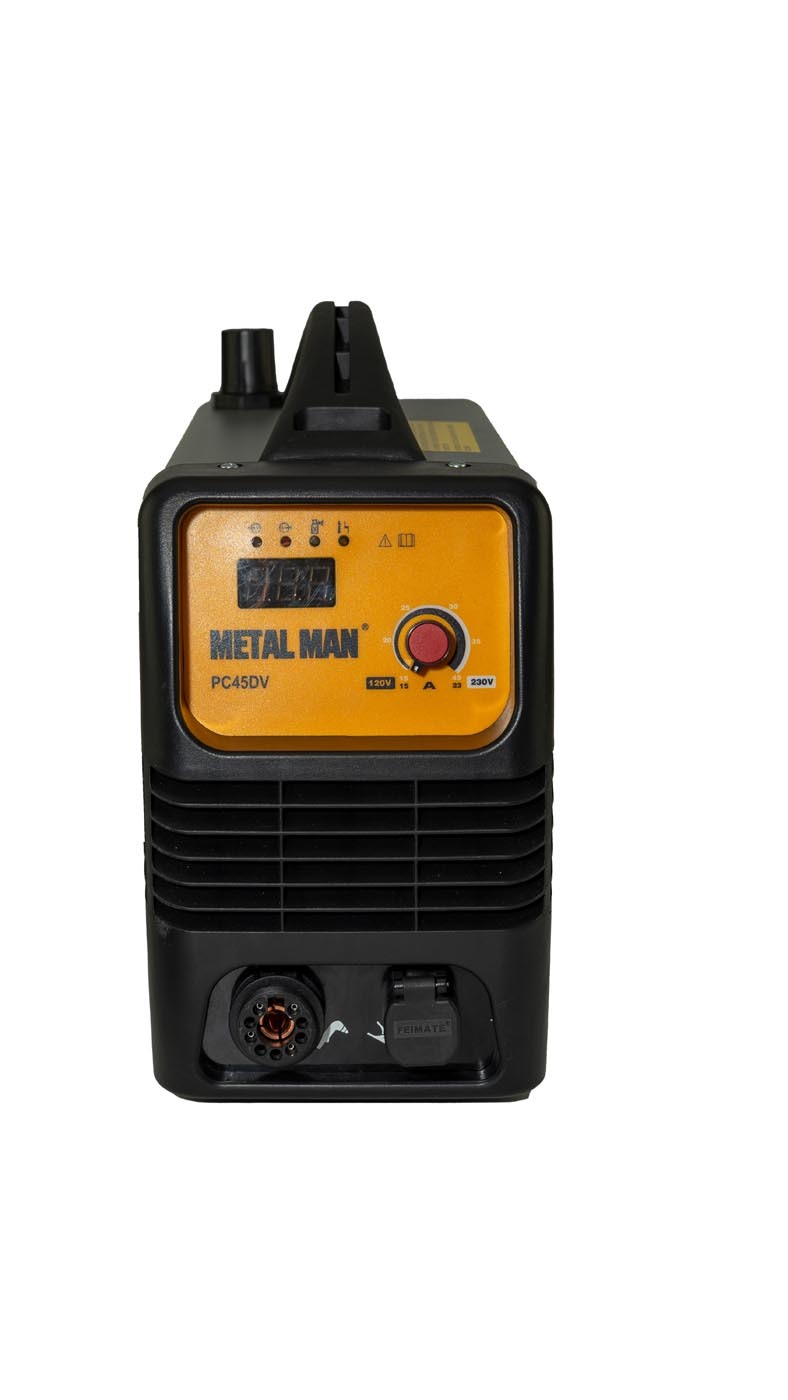

• Indicator lights for easy troubleshooting

• Built-in water separator for increased consumable life

• Requires 4.5 CFM @60 PSI compressed air

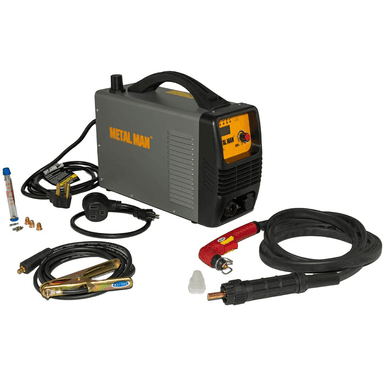

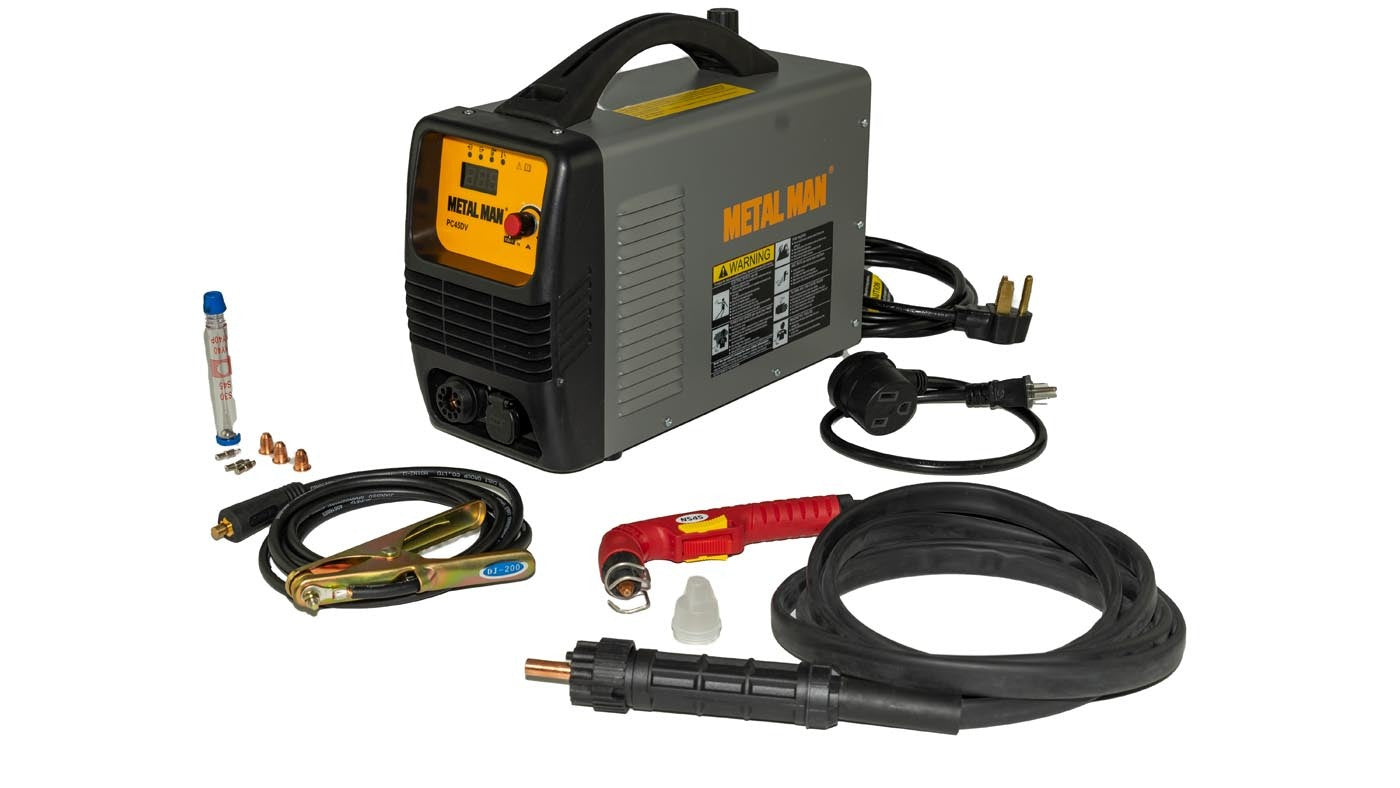

Package

• 120-volt power adaptor

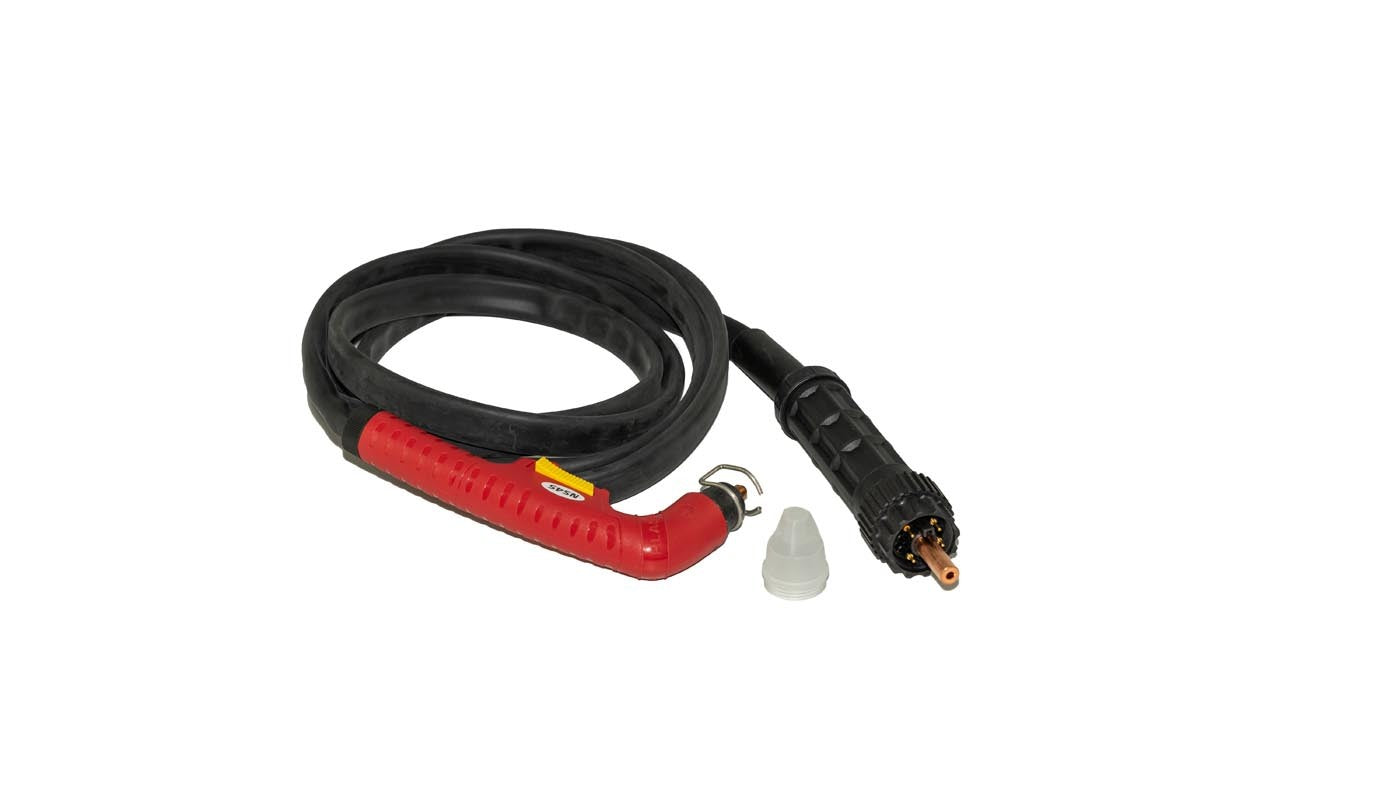

• 10.5 ft removable plasma torch and cable

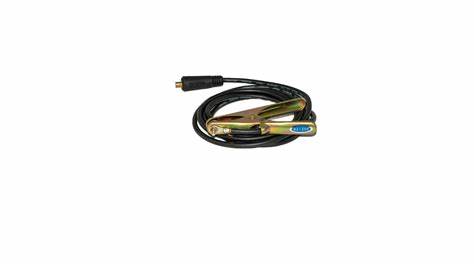

• 10 ft ground clamp and cable
