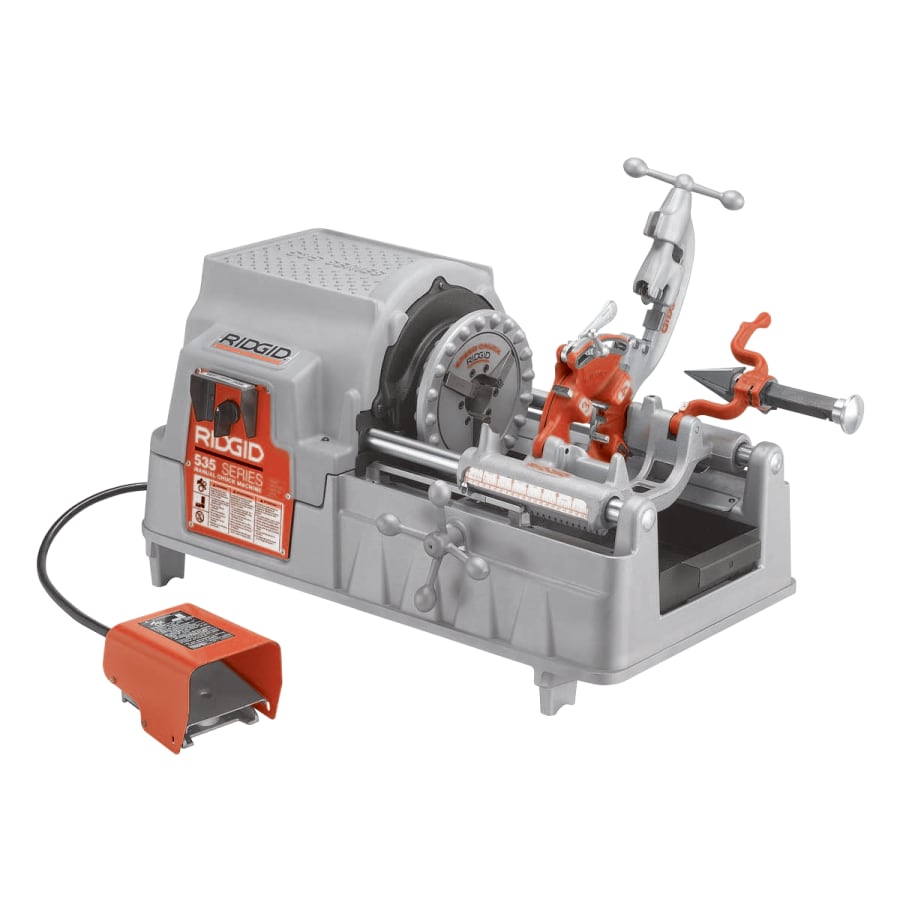

535 Threading Machine, NPT, 1/8 to 2, 115V, 15 A

Ridgid

Price: $10,629.39
List Price: $11,289.69
Price: $10,629.39
You save: $660.30 (6%)
$10,629.39 item
Shipping calculated at checkout.

SKU:

View Cart

Description

Large chip tray and oil reservoir make the 535 ideal for longer, uninterrupted threading
Generous top cover for keeping tools and fittings handy
High clearance carriage makes threading easier
Speed ChuckTM, with three replaceable rocker-action jaw inserts, grips workpiece instantly
Can be used with geared Models 141 and 161 threaders (sold separately)
Length gauge for quick, accurate cut-off
Cam-action, rear turning device, turns with chuck
Forward/Off/Reverse switch with integral foot switch
Choose from 535 Threading Machine only (96497) or 535 Threading Machines (93287,96502, 96507).

Specifications
Amps [Nom] 15 A
Brand RIDGID
Country of Origin US
Frequency [Nom] 50 Hz to 60 Hz
Hazmat NO
Phase Single
Pipe Cap. [Max] 2 in
Pipe Cap. [Min] 1/8 in
Power Cap. [Max] 1/2 hp
Prop 65 YES
Rod Diam. - TPI 1/4 in to 2 in
Speed [Nom] 36 RPM
Stock Status In Stock
Threading Cap. [Max] Geared Threaders Sold Separately; 4 in (141); 6 in
Threading Cap. [Min] Geared Threaders Sold Separately; 2-1/2 in (141)
Type 10-Pc Model 535 Threading Machine with Accessories
UNSPSC 27112834
Voltage [Nom] 115 V AC


INCLUDES

(1) 1/2 in to 2 in NPT Hammer Chuck Machine 36 RPM
(1) 341 Reamer Assy with 5-Flute Cone, RH, 1/8 in to 2 in (42365)
(1) 3/16 in Hex Key (46030)
(1) 820 Cutter Assy (42390)
(1) Wheel, Cutter E1032 (44185)
(1) Key, Hex 5/32 (46015)
(1) 1/2 in to 3/4 in Universal Alloy Die Set (47745)
(1) 1 in to 2 in Universal Alloy Die Set (47750)
(1) Nu-Clear Thread Cutting Oil (70835)
(1) 811A 1/8 in to 2 in NPT Die Head, Self-Opening, RH (97065)
