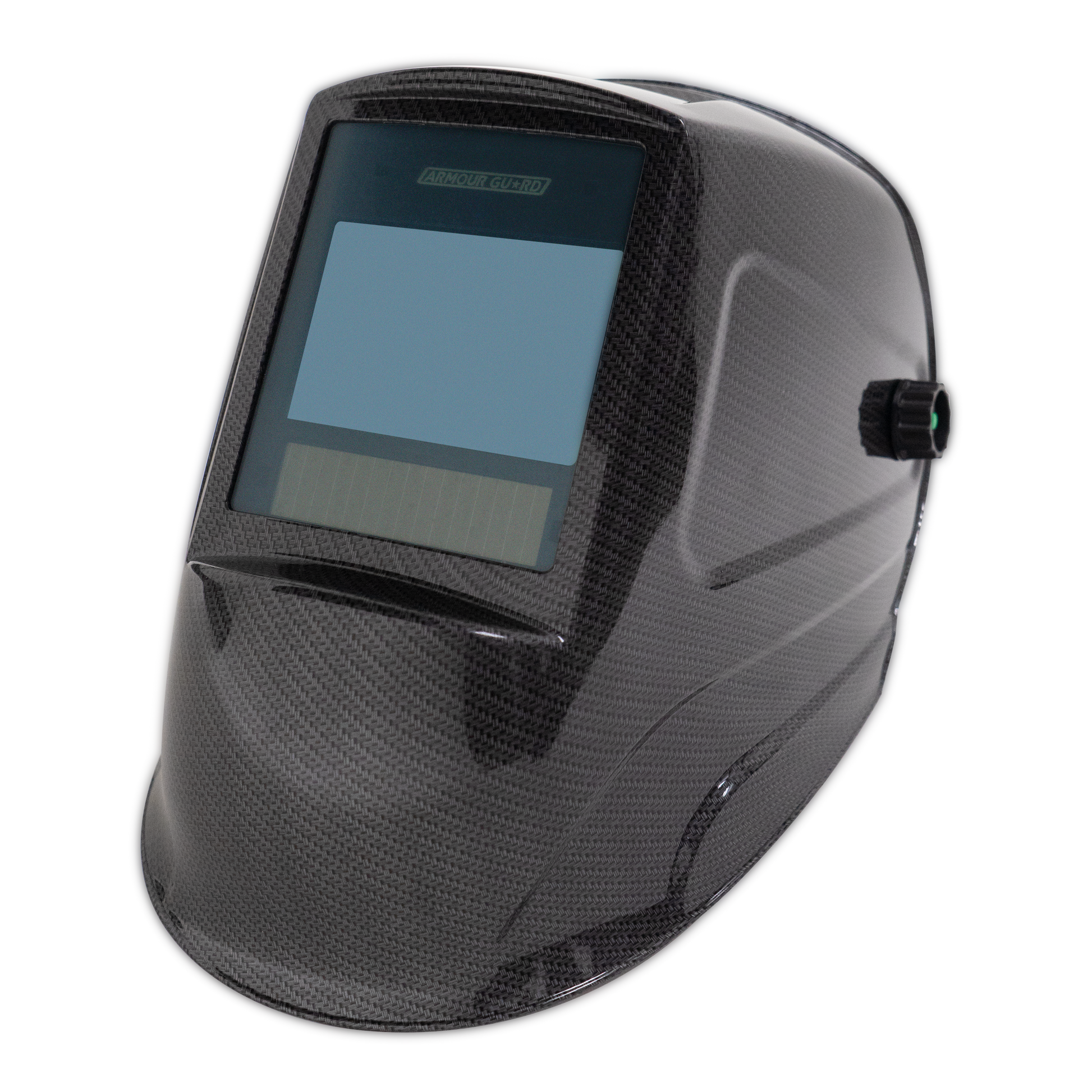

Description

• Clear Blue View Technology
• Viewing Field: 2.64” x 3.89” (67mm x 100mm), ADF Size: 4.5” x 5.25” x 0.060" (114.3mm x 133.35mm)
• Replacement Parts, Outer Lens: AGL4CP060, Inner Lens: AGKNIGHT2.0IL, Headgear: AGKNIGHT2.0HG, Filter: AGKNIGHT2.0FILTER, Battery: CR2032
• 4 Independent Arc Sensors, Switching Time: 0.1 - 1.9 sec
• 3 Modes Included: Cut/Grind Mode, Torch/Plasma Mode, and Welding Mode
• Optical Rating: 1/1/1/1, Shade: Clear at Shade 3, Dark at Shade 4-8 for cutting, Darkest at Shades 8-13 for welding
• Made of high impact Nylon
• Low battery indicator include, CR2032 battery replacement
• Low battery indicator include, CR2032 battery replacement

Features

AMBIENT LIGHT AWARENESS - The anti-light interference mode prevents flickering
in bright environments and adjusts the delay and sensitivity to ambient light.
• GRADUAL CHANGE DELAY - Provides a more comfortable gradual transition from
dark state to light state to hopefully reduce eye fatigue.
• 5 SENSORS FOR AUTOMATIC ADJUSTMENTS
• CLEAR STATE SHADE 3
• ULTRAFAST! SWITCHING SPEED: 1/25000th Sec
• ALL DIGITAL CONTROLS WITH A MANUAL GRIND MODE BUTTON
• CRYSTAL CLEAR BLUE VIEW TECHNOLOGY
• EFFICIENT POWER MANAGEMENT - 3-6 months between battery replacement.
• 3 YEAR WARRANTY - Against manufacturer defects

Technical Specifications

• ADF Size: 4.5" x 5.25" x 0.197" (114.3mm x 133.35mm)
• Viewing Field: 2.64" x 3.89" (67mm x 100mm)
• Sensors: 5
• Optical Rating: 1/1/1/1
• Shade: Clear at Shade 3
Dark at Shade 4-8 for cutting
Darkest at Shades 8-13 for welding
• UV/lR Protection: Up to DlN 16
• Switching Time: 0.04ms
• Delay Control: 0.06 - 1.2s
• Automatic shade deviation from -2 to +2 with gradual return to clear state
• 7 sensitivity levels to choose from, and/or automatic sensitivity adjustment
• Automatic delay adjustment with 9 levels to control delay time
• TIG Capability: >2A
• Power Supply: Solar Panel & Lithium batteries
• Ceramic-coated nylon material with carbon fiber design
• Weight: 1.15 lb
• Operating Temperature: -5°C (23°F)- +55°C (131°F)
• Storing Temperature: -20°C (-4°F)- +70°C (158°F

Replacements Parts

Replacement filter AGKNIGHT2.0FILTER
Replacement headgear AGKNIGHT2.0HG
Replacement inner lens AGKNIGHT2.0IL
Replacement outer lens AGL4CP060
Replacement battery CR2032

"UPON REQUEST ONLY"
