Description

• Solar-Powered Magnifying Technology
• Fixed Shade 10
• Light State: DIN Shade 3
• Cartridge Size: 50.8 x 107.95mm (2 x 4.25"), Viewing Area: 96.5 x 34 mm (3.80 x 1.34")
• Reduces eye fatigue while welding and/or cutting
• Includes inner and outer cover plates
• 0.0003s Switching Time, Auto-ON/OFF
• Up to shade 16 UV & IR Protection

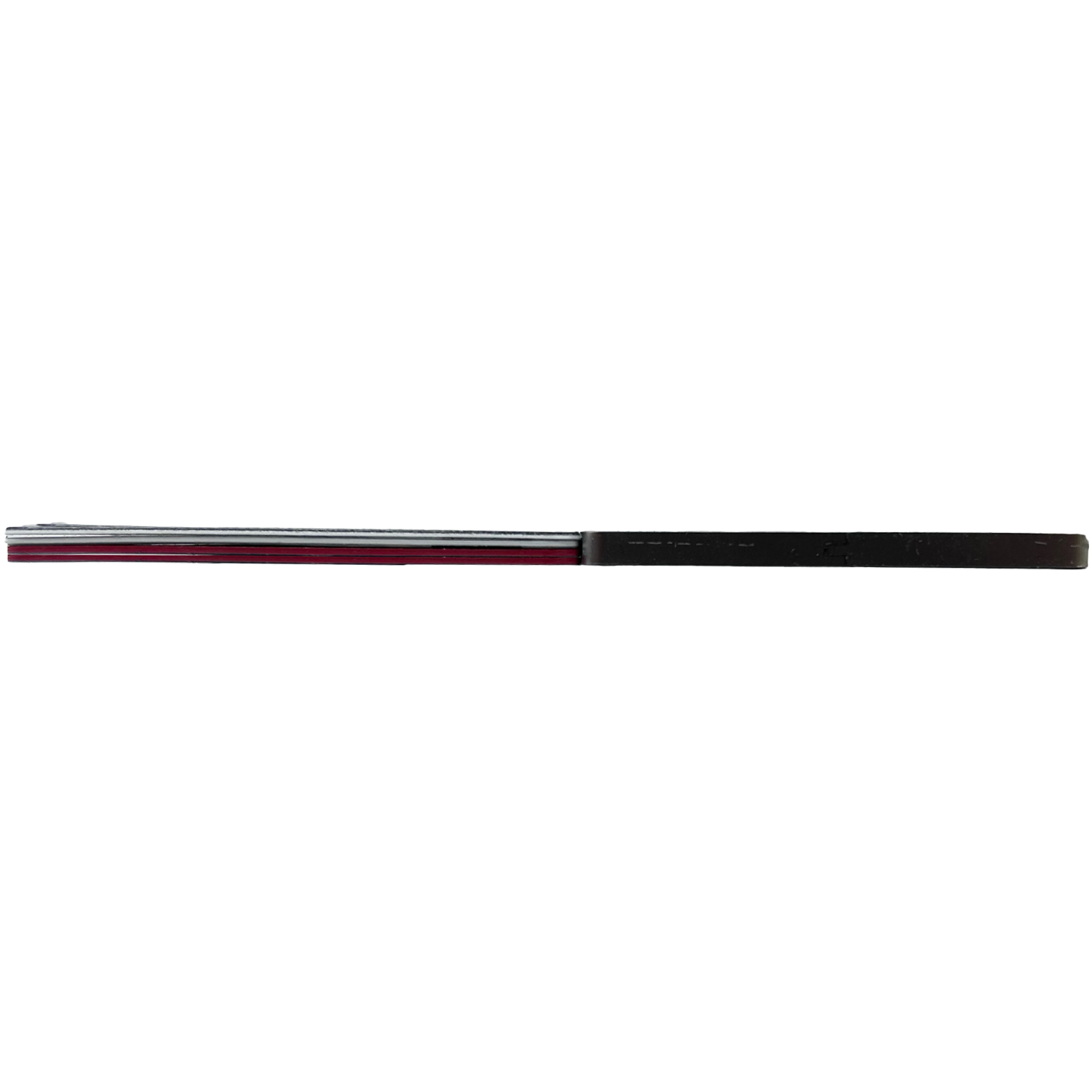

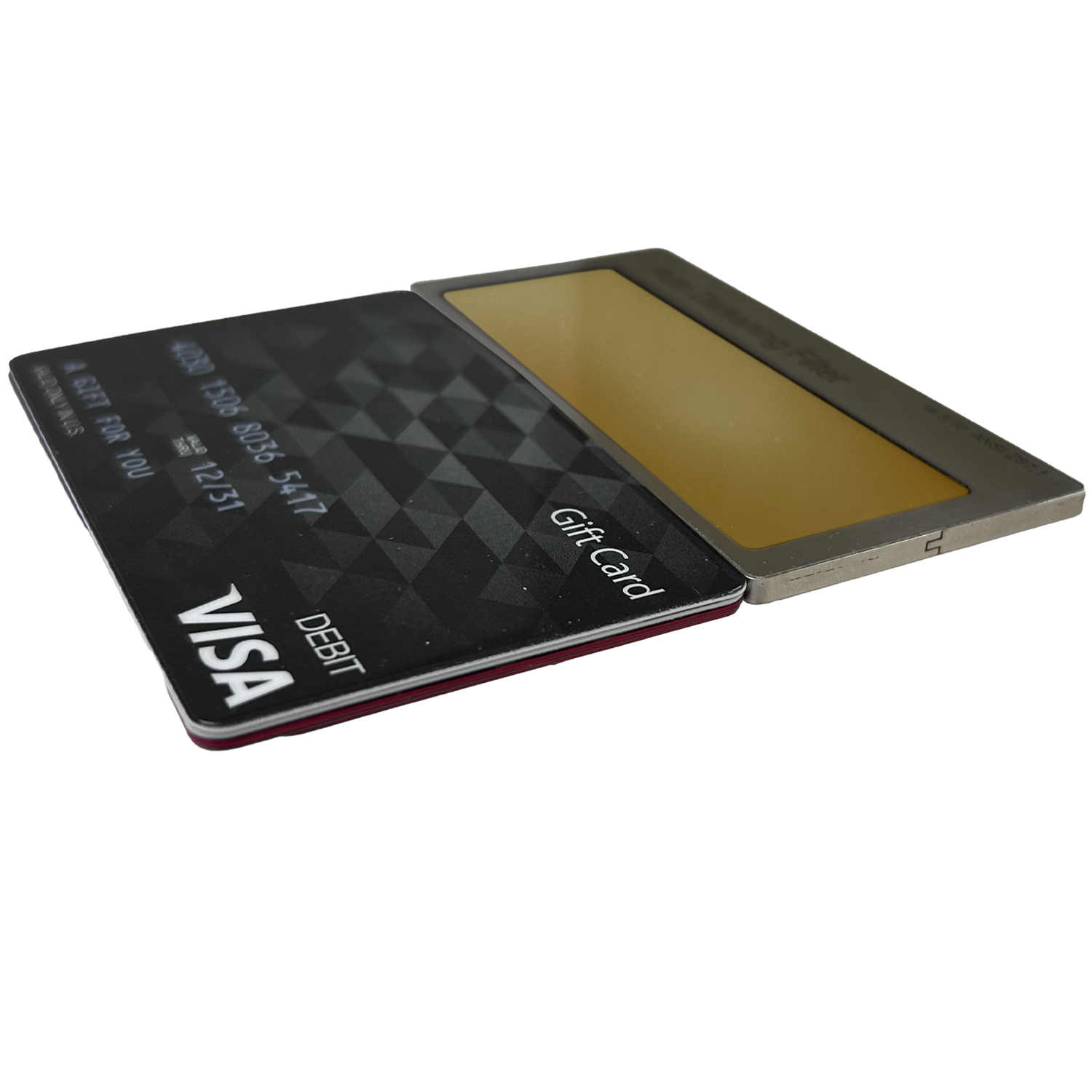

• Thickness: 3.3mm (0.13")
• Gold-plated

Our new gold welding lenses are engineered to redirect the intense
heat generated during welding, enhancing the comfort of welders
during their work.
• Gold Lens coating reflects 90% of the infrared radiation which would
otherwise reach a welder's eyes. This not only reduces the risk of eye
strain but also contributes to overall eye comfort.
• Clear View Auto-Darkening Technology– Experience working in a
safer and more efficient environment with this lens from the first arc to
the last. Allows for a thinner lens which fits in all 2” x 4.25” welding
helmets
• Microelectronics & Crystal Blue Technology
• Within the 2” x 4.25” lenses, this lens has one of the world’s fastest
dim switching speeds at 1/3000 of a second! Quick reaction times
reduce fatigue on a welder’s eyes
• Comes with 2 polycarbonate plates, to be used in the front and back
of filter
• Provides a more comfortable transition from dark state to light state
• Efficient Power Management– This filter is always ready to work;
its unique rechargeable battery ensures you many years of reliable
operation
• 2 Year Warranty– Against manufacturer defects

Technical Specifications

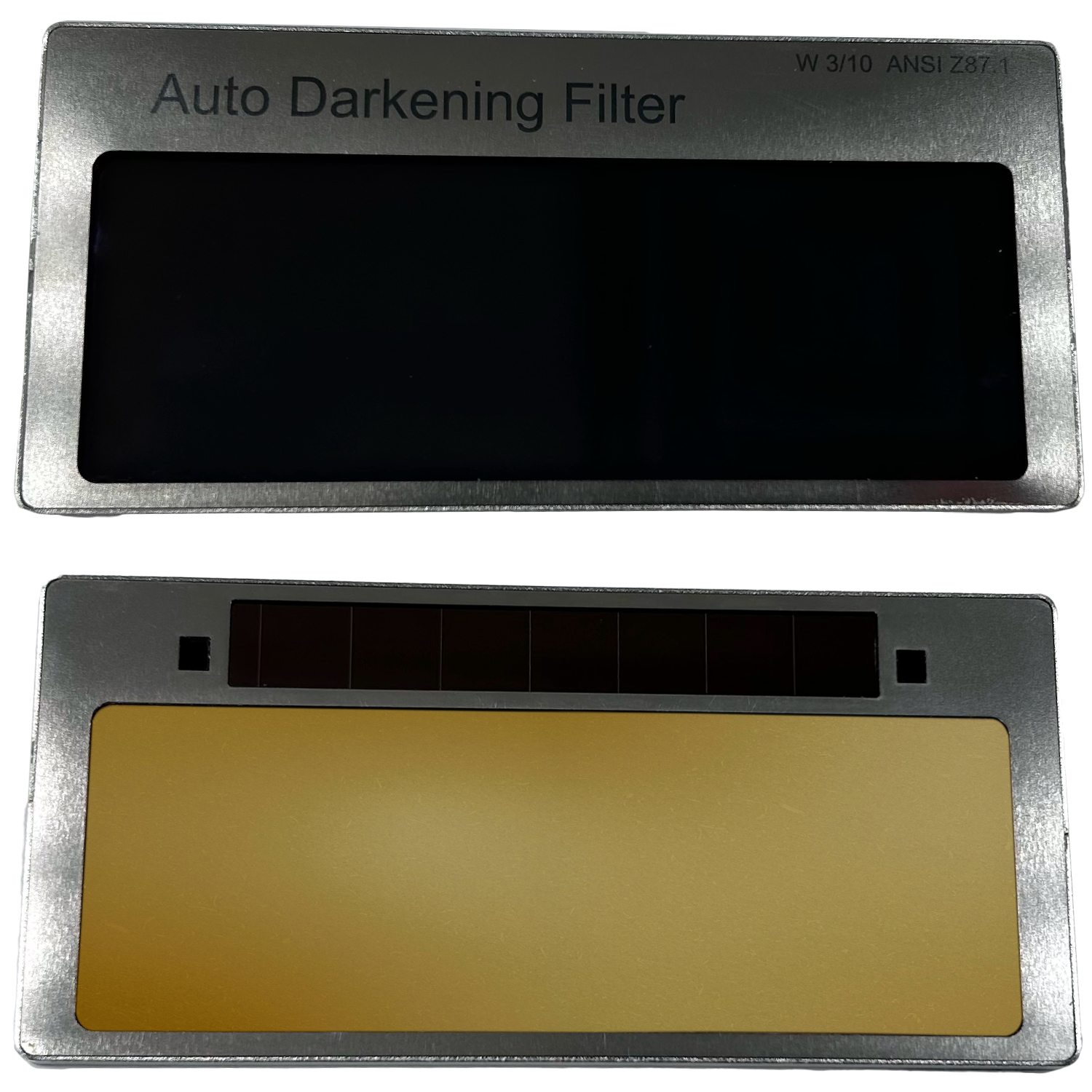

 Cartridge Size: 50.8 x 107.95mm (2 x 4.25")
• Viewing Area: 96.5 x 34 mm (3.80 x 1.34")
• Thickness: 3.3mm (0.13")
• Power Supply: Solar and Backup Lithium battery (2 x CR1025)
combination (non-replaceable)
• Sensors: 2 independent sensors
• Shade 9 Light State: DIN 2.5 (with standard 1/1/1/1)
• Shade 10 Light State: DIN 2.5 (with standard 1/1/1/1)
• Shade 11 Light State: DIN 2.5 (with standard 1/1/1/2)
• Shade 12 Light State: DIN 3 (with standard 1/1/1/2)
• AUTO ON/OFF: Yes
• Switch time: Time required to switch between shades: 0.0003s.
• TIG capability: > 10A
• UV & IR Protection: Up to shade 16
• Weight: 40g
• Packaging: Individually packaged
• Country of Origin: China
